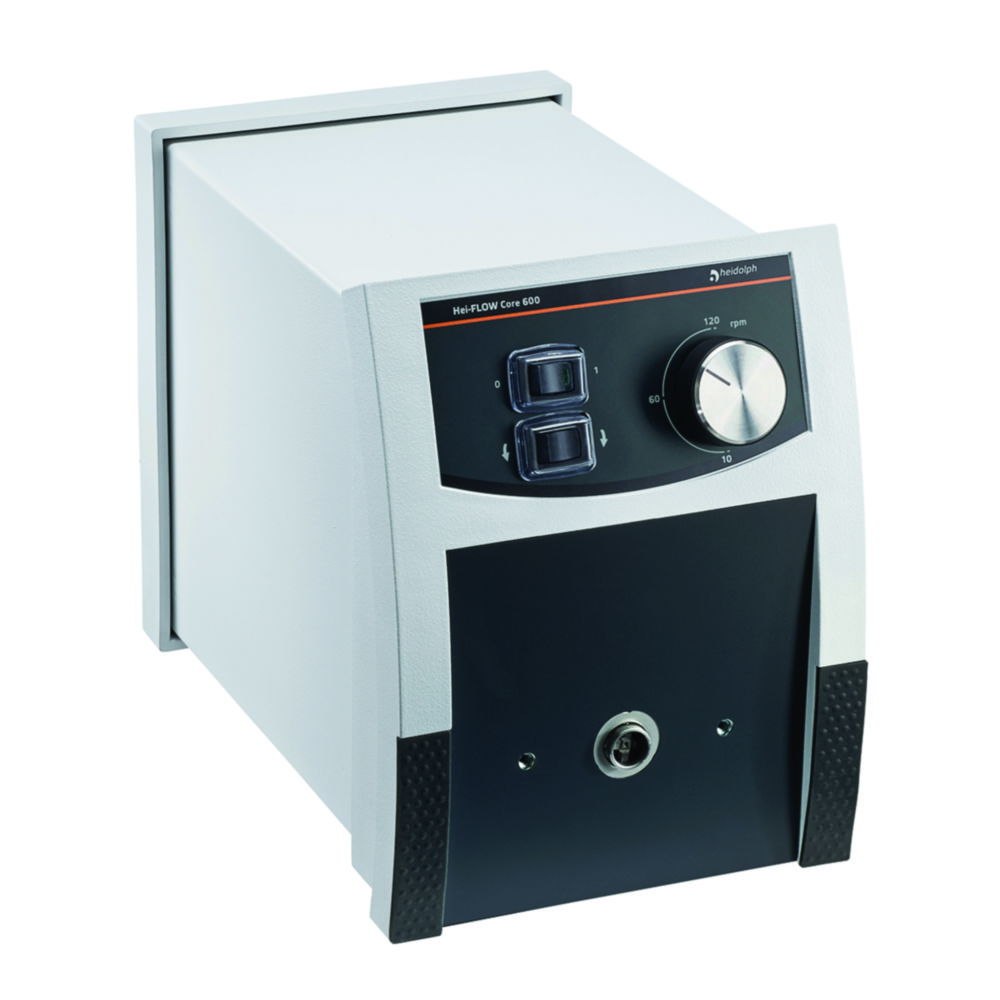

Pump drive Hei-FLOW Core 600
This pump drive is only suitable for use with single-channel pump heads.
Toote variatsioonid
| Accuracy speed | Accuracy speed | Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. flow rate | Max. speed | Max. voltage | Min. flow rate | Min. speed | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Speed | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ±2 % | 2 % | 256 mm | 166 x 256 x 225 mm | 4 ... 4151 ml/min | 225 mm | IP 54 | 600 1/min | 240 V | 50 1/min | 110 V | 9.829 241 | EU | 110 ... 240 V, 50/60 Hz | 100 W | 50 ... 600 1/min | Hei-FLOW Core 600 | 7.1 kg | 166 mm | 1.00 | ||||
| ±2 % | 2 % | 256 mm | 166 x 256 x 225 mm | 4 ... 4151 ml/min | 225 mm | IP 54 | 600 1/min | 240 V | 50 1/min | 110 V | 6.491 120 | UK | 110 ... 240 V, 50/60 Hz | 100 W | 50 ... 600 1/min | Hei-FLOW Core 600 | 7.1 kg | 166 mm | 1.00 |
