Pump heads rotarus®
For use with all rotarus® peristaltic pumps.
PK: With double-pivoted rollers made of high-grade, medical stainless steel. With RFID-technology for detection and monitoring of pump head and tubing.
MKF 4/8/12: With components made of anodized aluminum and stainless steel. For tubing cassettes, with lateral set screw for the adjustment of the flow rate. With RFID-technology for detection and monitoring of pump head and tubing.
PKF 60 / MKF 60: With components made of durable PPS plastics. Simple and easy loading of the tubing. For attaching the
pump heads to the rotarus® drives a PKF/MKF 60 adapter set is required. Please order separately.
Toote variatsioonid
| Type | Description | Rollers | Inputs | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| PKF 60-24-3 | Single channel pump head for tube with wall thickness 2.4mm | 3 | 1 | 4.671 771 | 1.00 | ||
| MKF 60-4-8 | 4 Channel pump head for stopper tubes | 8 | 4 | 4.671 773 | 1.00 | ||
| MKF 60-16-2-4 | 2 Channel pump head for stopper tubes | 4 | 2 | 4.671 775 | 1.00 | ||
| MKF 12-8 | 12 Channel pump head for stopper tubes | 8 | 12 | 9.880 384 | 1.00 | ||
| MKF 4-8 | 4 Channel pump head for stopper tubes | 8 | 4 | 9.880 382 | 1.00 | ||
| PK 10-16 | Single channel pump head for tube with wall thickness 1.6mm | 3 | 1 | 9.880 380 | 1.00 | ||
| PK 10-24 | Single channel pump head for tube with wall thickness 2.4mm | 3 | 1 | 9.880 381 | 1.00 | ||
| MKF 8-4 | 8 Channel pump head for stopper tubes | 4 | 8 | 9.880 383 | 1.00 | ||
| MKF 60-8-8 | 8 Channel pump head for stopper tubes | 8 | 8 | 4.671 774 | 1.00 | ||
| MKF 60-2-8 | 2 Channel pump head for stopper tubes | 8 | 2 | 4.671 772 | 1.00 | ||
| PK 10-16-5 | Single channel pump head for tube with wall thickness 1.6mm | 5 | 1 | 4.671 769 | 1.00 | ||

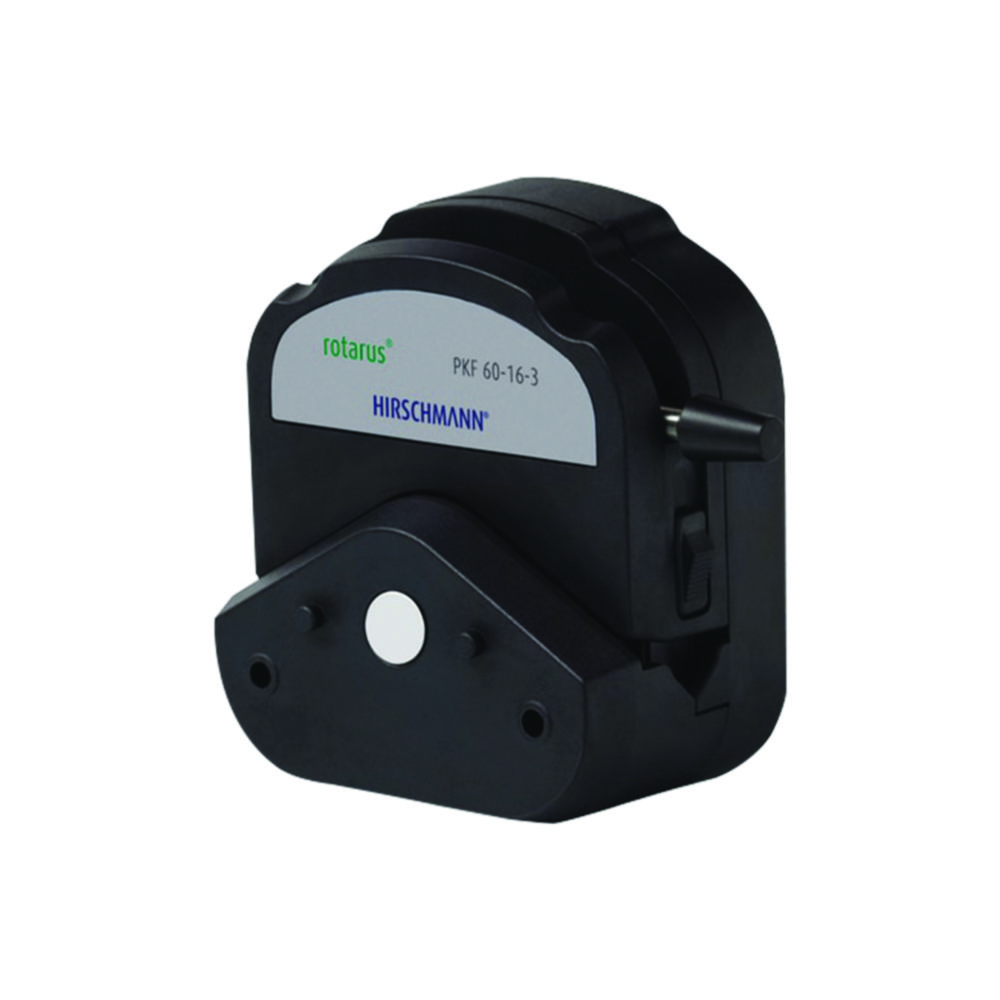

| PKF 60-16-3 | Single channel pump head for tube with wall thickness 1.6mm | 3 | 1 | 4.671 770 | 1.00 | ||
| MKF 60-16-4-4 | 4 Channel pump head for stopper tubes | 4 | 4 | 4.671 776 | 1.00 |
