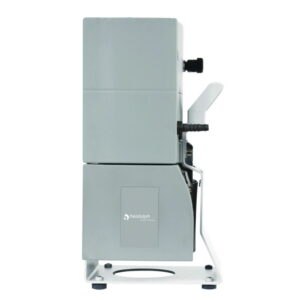

Pumping units LVS ecoflex+

Designed especially for solvent distillation / evaporation applications, the LVS ecoflex+ systems comprise of a chemical duty diaphragm pump with VCpro digital vacuum controller, liquid separators and exhaust emissions condenser for optimal solvent recovery. Designed for chemical applications all wetted parts are made from high quality chemically resistant materials, with clear plastic coated glassware. The VCpro digital vacuum controller with ecoflex control philosophy continuously adjusts the pumping speed to match the vapour load produced by the evaporation process to give a fast and efficient process without bumping or foaming.

  • Analytically pure, oil free vacuum
  • Highly chemical resistant
  • Ultra quiet operation – silent at equilibrium
  • Precise vacuum control with timed ramp capability
  • Fully programmable modes to allow run repeatability
  • Ecoflex vacuum control for optimised evaporation and energy efficiency
  • Intuitive ICON-navigation of control screens
  • Connectivity through LAN and RS232
  • Built-in self-cleaning function
  • Security levels for administrators and users
  • Log files on all pump activities for easy traceability
  • High-Res display with dark and light screen modes
  • Digital and analogue vacuum pressure display

Toote variatsioonid

Catalog numberPKDepthDimensions (WxDxH)Flow rateHeightMax. voltageMin. voltagePower supplyRated capacityTypeWeightWidthKogus
6.313 5921.00260 mm250 x 260 x 435 mm20 l/min435 mm240 V115 V115 ... 240 V, 50 Hz90 WLVS 105 T-10 ef+9.5 kg250 mm
