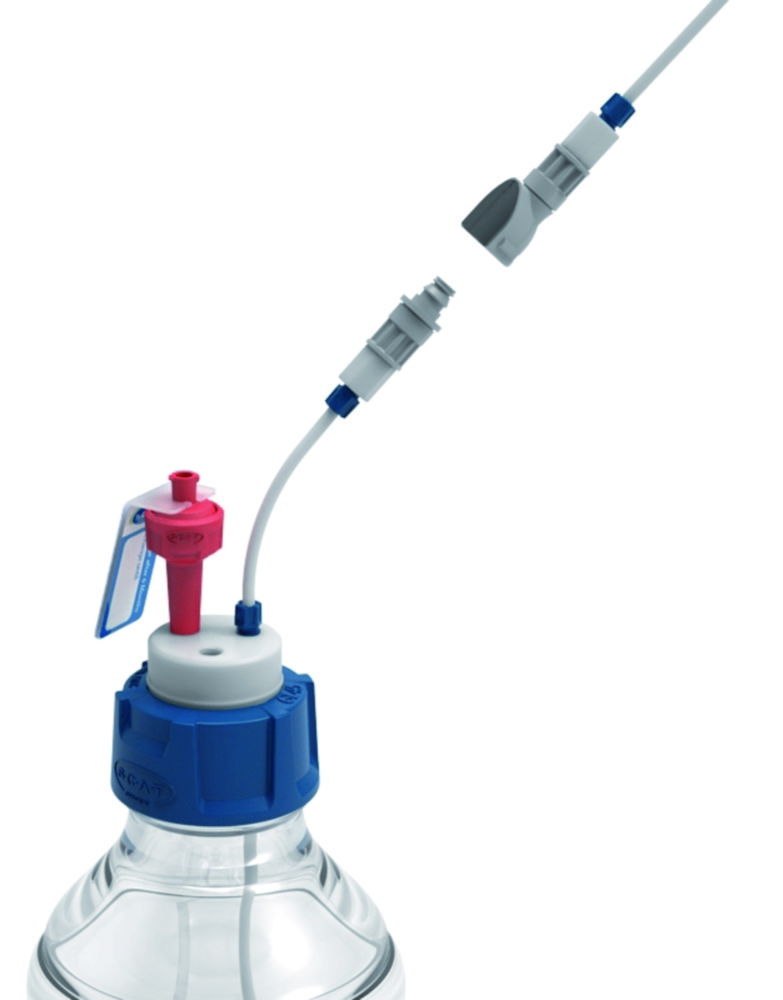

Quick couplings 2.0, for Safety Caps / Safety Waste Caps, PP
For safe connection of capillaries with outer diameter 1.6 / 2.3 / 3.2 mm.
- Drip protection due to integrated locking valve
- Closed system for drip-free separation
- EPDM seal
- Incl. PFA fittings (1.6 / 2.3 / 3.2 mm ID)
- Quick couplings for screwing into the standard connectors of Safety Caps (UNF 1/4″ 28G), incl. 3 PTFE sealing balls (1.6 / 2.3 / 3.2 mm ID)
Toote variatsioonid
| Description | Catalog number | PK | Kogus | |
|---|---|---|---|---|
| Set 2: Quick coupling (m) for screwing (UNF 1/4" 28G) and a quick coupling (f) | 6.320 310 | 1.00 | ||
| Set 1: Quick coupling (m) and quick coupling (f) | 6.320 309 | 1.00 | ||
| Quick coupling (m) for screwing (UNF 1/4" 28G) | 6.320 311 | 1.00 | ||
| Quick coupling (m) | 6.320 308 | 1.00 | ||
| Quick coupling (f) | 6.320 312 | 1.00 |
