Quick-lock coupling plugs with valve, PLC Series, Acetal
For applications such as floor cleaning equipment, deionized water filtration, automated machines, compression therapy and leak detectors. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Combinable with LC Series couplings
- Specifications
- Nominal size valve: 1/4″
- Operating pressure: 8.3 bar, 120 psi
- Operating temperature: -40 … 82 °C
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| White | In-Line compression fitting | 46.2 mm | Acetal | 1/4" | 4.662 868 | PLCD200M8 | 1.00 | ||
| White | In-Line compression fitting | 47.8 mm | Acetal | 1/4" | 4.662 864 | PLCD20004 | 1.00 | ||

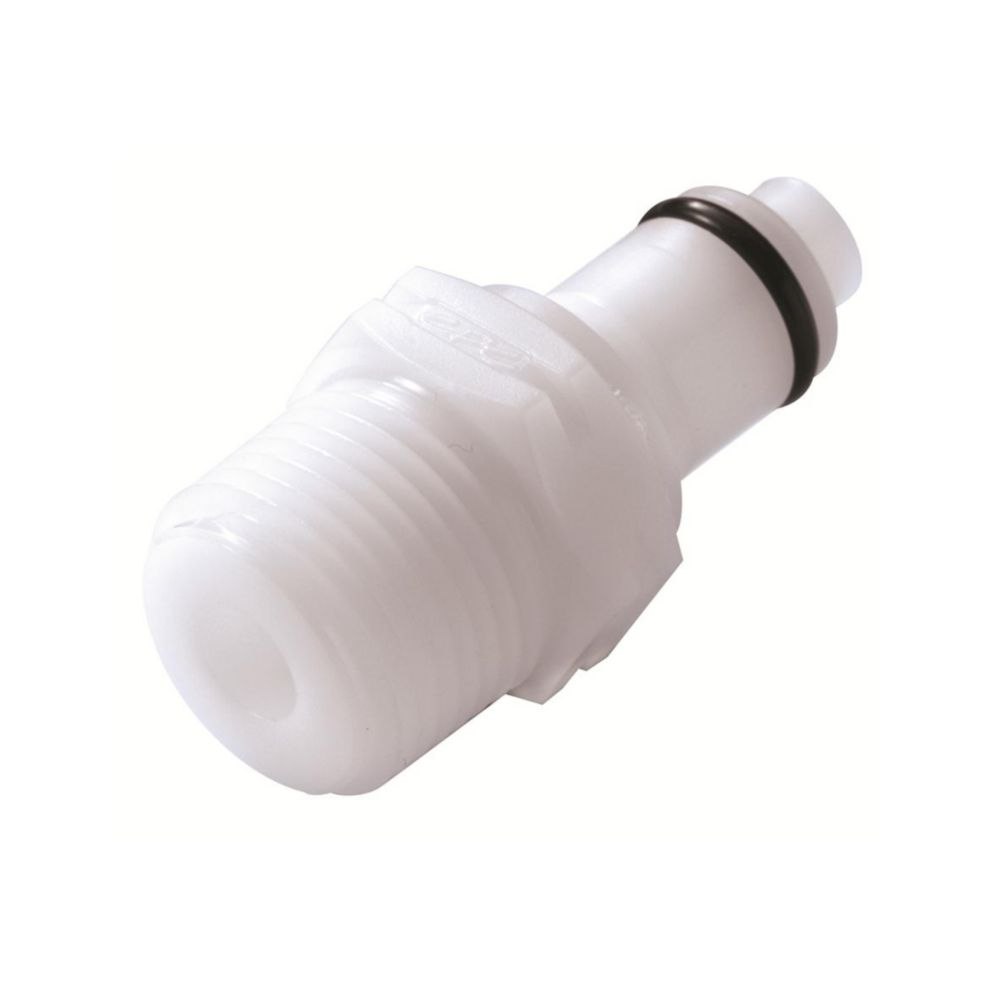

| White | Thread | 41.4 mm | Acetal | 1/4" | 4.662 880 | PLCD24006BSPT | 1.00 | ||
| White | In-Line compression fitting | 46.2 mm | Acetal | 1/4" | 4.662 865 | PLCD20006 | 1.00 | ||
| White | Tubing nozzle | 50.5 mm | Acetal | 1/4" | 4.662 869 | PLCD22004 | 1.00 | ||
| White | In-Line compression fitting | 46.2 mm | Acetal | 1/4" | 4.662 867 | PLCD200M10 | 1.00 | ||
| White | Tubing nozzle | 46.0 mm | Acetal | 1/4" | 4.662 872 | PLCD22006 | 1.00 | ||
| White | Panel mounting tubing nozzle | 52.1 mm | Acetal | 1/4" | 4.662 887 | PLCD42005 | 1.00 | ||
| White | Tubing nozzle | 32.5 mm | Acetal | 1/4" | 4.662 876 | PLCD23006 | 1.00 | ||
| White | Panel mounting tubing nozzle | 52.1 mm | Acetal | 1/4" | 4.662 888 | PLCD42006 | 1.00 | ||
| White | Panel mounting compression fitting | 52.1 mm | Acetal | 1/4" | 4.662 882 | PLCD40006 | 1.00 | ||
| White | Thread | 42.2 mm | Acetal | 1/4" | 4.662 879 | PLCD24004BSPT | 1.00 | ||
| White | Tubing nozzle | 50.5 mm | Acetal | 1/4" | 4.662 871 | PLCD22005 | 1.00 | ||
| White | Tubing nozzle | 32.5 mm | Acetal | 1/4" | 4.662 874 | PLCD23004 | 1.00 | ||
| White | Panel mounting compression fitting | 52.1 mm | Acetal | 1/4" | 4.662 883 | PLCD400M10 | 1.00 | ||
| White | Panel mounting tubing nozzle | 52.1 mm | Acetal | 1/4" | 4.662 885 | PLCD42004 | 1.00 | ||
| White | Panel mounting compression fitting | 48.5 mm | Acetal | 1/4" | 4.662 881 | PLCD40004 | 1.00 | ||
| White | Panel mounting compression fitting | 51.6 mm | Acetal | 1/4" | 4.662 884 | PLCD400M8 | 1.00 |
