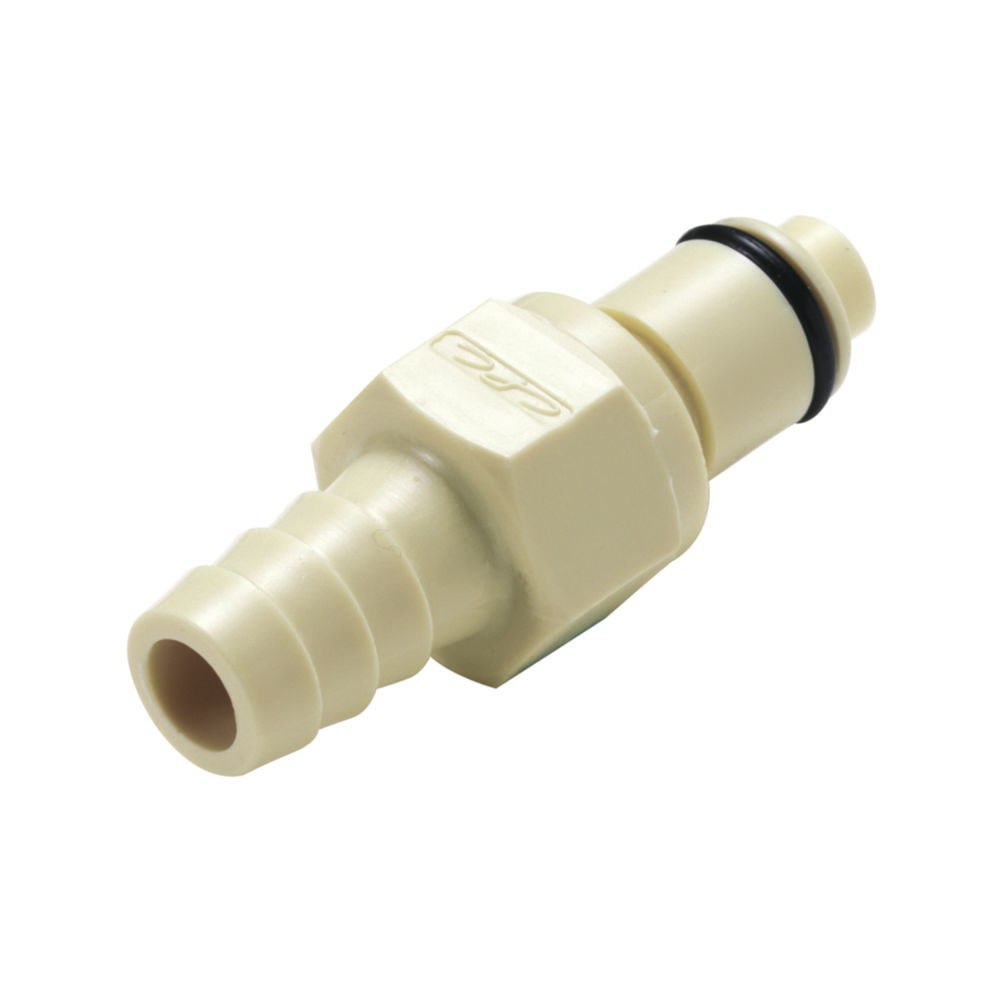

Quick-lock coupling plugs with valve, PLC12 Series, PP
For more demanding applications, such as battery filling systems, disinfectants, dosing pumps, pharmaceutical production and chemical processing in the semiconductor industry. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Sterilizable with gamma rays
- Specifications
- Nominal size valve: 1/4″
- Operating pressure: 8.3 bar, 120 psi
- Operating temperature: 0 … 71 °C
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Beige | Tubing nozzle | 50.8 mm | PP | 1/4" | 4.662 870 | PLCD2200412 | 1.00 | ||
| Beige | In-Line compression fitting | 46.2 mm | PP | 1/4" | 4.662 866 | PLCD2000612 | 1.00 | ||
| Beige | Tubing nozzle | 36.1 mm | PP | 1/4" | 4.662 877 | PLCD2300612 | 1.00 | ||
| Beige | Thread | 42.4 mm | PP | 1/4" | 4.662 878 | PLCD2400412 | 1.00 | ||
| Beige | Tubing nozzle | 46.2 mm | PP | 1/4" | 4.662 873 | PLCD2200612 | 1.00 | ||
| Beige | Panel mounting tubing nozzle | 52.1 mm | PP | 1/4" | 4.662 886 | PLCD4200412 | 1.00 | ||
| Beige | Tubing nozzle | 34.5 mm | PP | 1/4" | 4.662 875 | PLCD2300412 | 1.00 | ||
| Beige | Panel mounting tubing nozzle | 52.1 mm | PP | 1/4" | 4.662 889 | PLCD4200612 | 1.00 |
