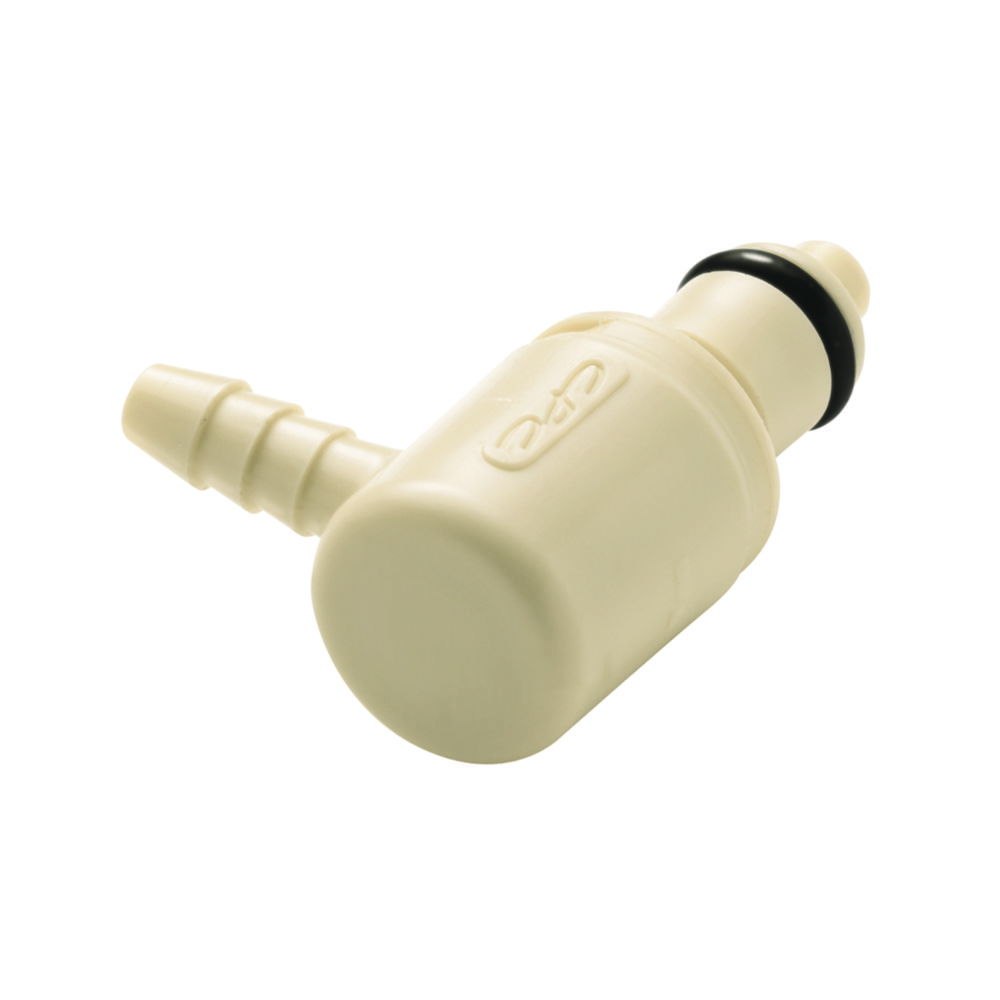

Quick-lock coupling plugs with valve, PMC12 Series, PP
For more demanding applications, such as microbiological analysis equipment, cleaner concentrates, electroplating fluids, sterilisation equipment and water pollutant analysis. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Sterilizable with gamma rays
- Specifications
- Nominal size valve: 1/8″
- Operating pressure: 8.3 bar, 120 psi
- Operating temperature: 0 … 71 °C
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Beige | Tubing nozzle | 30.7 mm | PP | 1/8" | 4.662 923 | PMCD230212 | 1.00 | ||
| Beige | Tubing nozzle | 42.4 mm | PP | 1/8" | 4.662 918 | PMCD220212 | 1.00 | ||
| Beige | Tubing nozzle | 30.7 mm | PP | 1/8" | 4.662 925 | PMCD230412 | 1.00 | ||
| Beige | Tubing nozzle | 43.4 mm | PP | 1/8" | 4.662 921 | PMCD220412 | 1.00 | ||
| Beige | In-Line compression fitting | 40.1 mm | PP | 1/8" | 4.662 913 | PMCD200412 | 1.00 | ||
| Beige | Tubing nozzle | 37.3 mm | PP | 1/8" | 4.662 916 | PMCD220112 | 1.00 | ||
| Beige | Thread | 40.2 mm | PP | 1/8" | 4.662 927 | PMCD24042812 | 1.00 |
