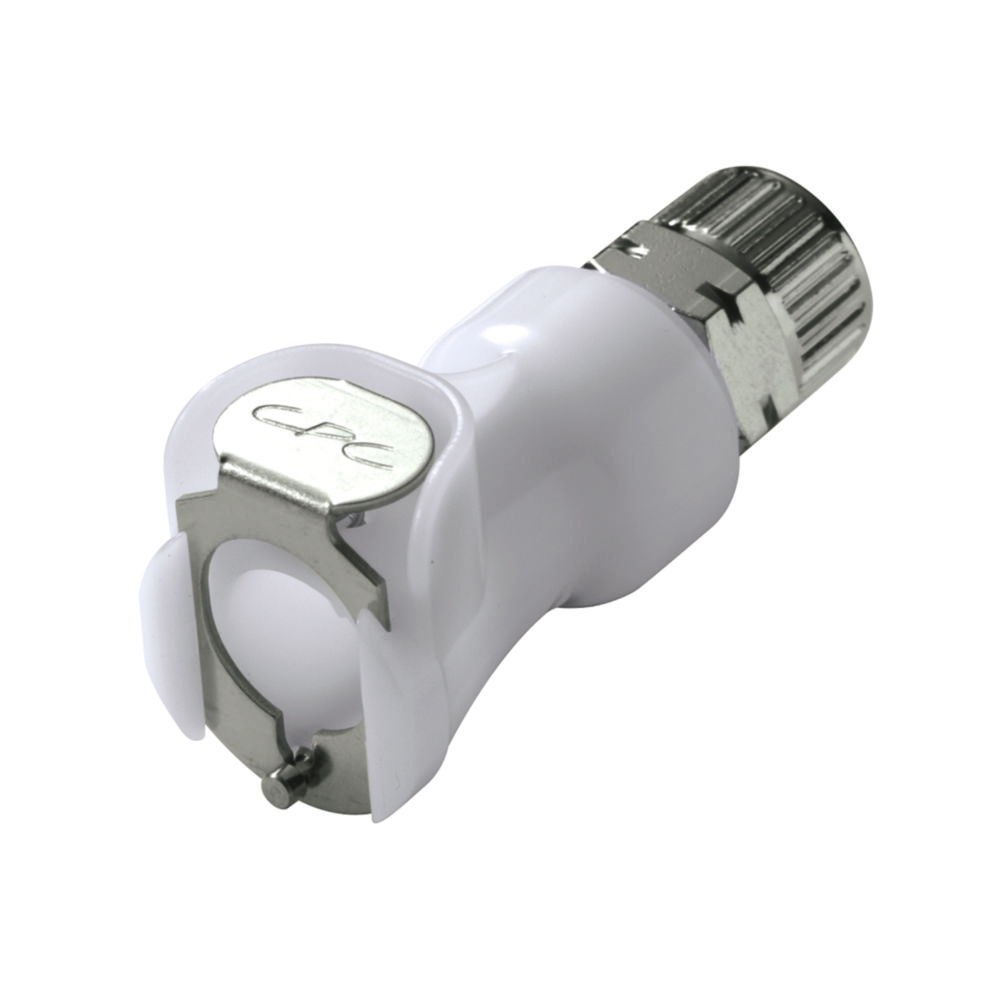

Quick-lock couplings with valve, PLC Series, Acetal
For applications such as floor cleaning equipment, deionized water filtration, automated machines, compression therapy and leak detectors. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Combinable with LC Series couplings
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| White | In-Line compression fitting | 49.5 mm | Acetal | 1/4" | 4.662 852 | PLCD130M10 | 1.00 | ||
| White | In-Line compression fitting | 49.5 mm | Acetal | 1/4" | 4.662 853 | PLCD130M8 | 1.00 | ||
| White | In-Line compression fitting | 49.5 mm | Acetal | 1/4" | 4.662 850 | PLCD13006 | 1.00 | ||
| White | Thread | 29.2 mm | Acetal | 1/4" | 4.662 846 | PLCD10004BSPT | 1.00 | ||
| White | Tubing nozzle | 49.5 mm | Acetal | 1/4" | 4.662 859 | PLCD17004 | 1.00 | ||
| White | Panel mounting tubing nozzle | 49.5 mm | Acetal | 1/4" | 4.662 856 | PLCD16005 | 1.00 | ||
| White | Thread | 29.2 mm | Acetal | 1/4" | 4.662 848 | PLCD10006BSPT | 1.00 | ||
| White | Panel mounting tubing nozzle | 49.5 mm | Acetal | 1/4" | 4.662 854 | PLCD16004 | 1.00 | ||
| White | Tubing nozzle | 49.5 mm | Acetal | 1/4" | 4.662 861 | PLCD17005 | 1.00 | ||
| White | Tubing nozzle | 49.5 mm | Acetal | 1/4" | 4.662 862 | PLCD17006 | 1.00 | ||
| White | Panel mounting tubing nozzle | 49.5 mm | Acetal | 1/4" | 4.662 857 | PLCD16006 | 1.00 | ||
| White | In-Line compression fitting | 46.2 mm | Acetal | 1/4" | 4.662 849 | PLCD13004 | 1.00 |
