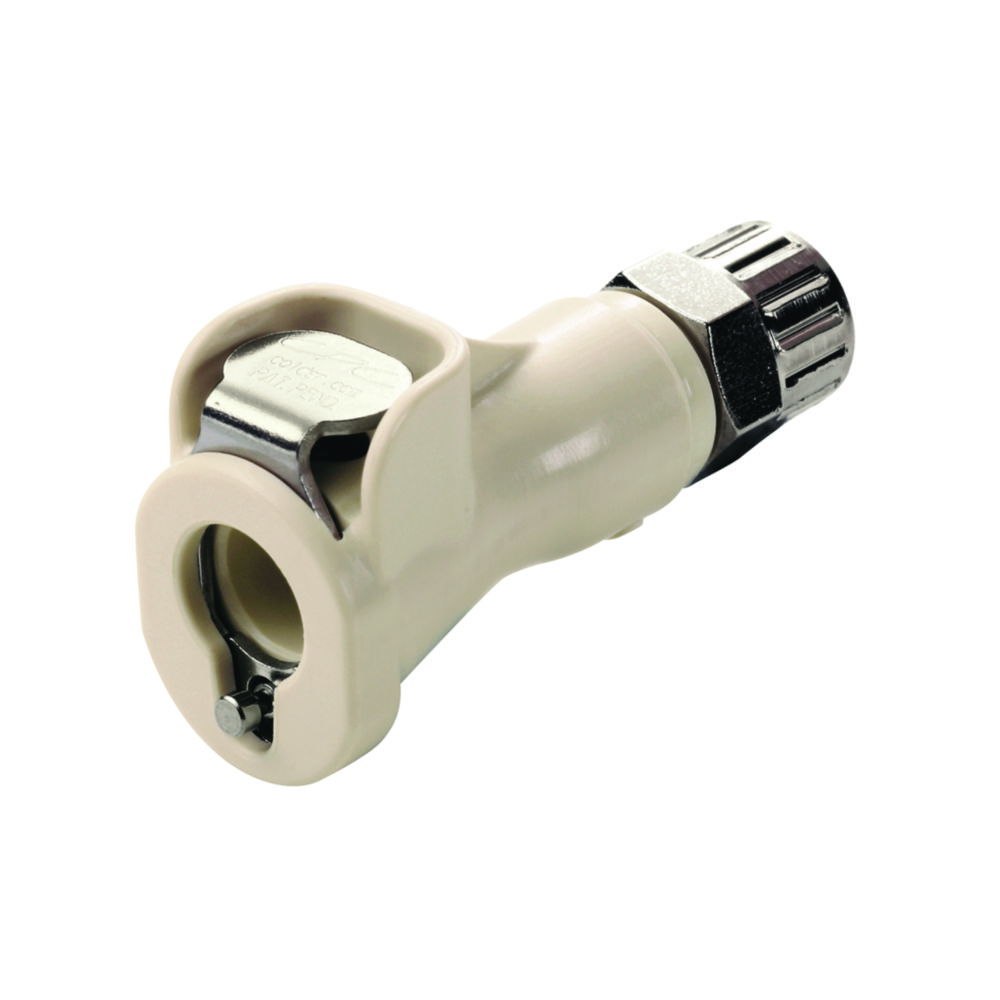

Quick-lock couplings with valve, PLC12 Series, PP
For more demanding applications, such as battery filling systems, disinfectants, dosing pumps, pharmaceutical production and chemical processing in the semiconductor industry. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Sterilizable with gamma rays
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Beige | Panel mounting tubing nozzle | 49.5 mm | PP | 1/4" | 4.662 858 | PLCD1600612 | 1.00 | ||
| Beige | Thread | 29.2 mm | PP | 1/4" | 4.662 847 | PLCD1000612BSPT | 1.00 | ||
| Beige | In-Line compression fitting | 49.8 mm | PP | 1/4" | 4.662 851 | PLCD1300612 | 1.00 | ||
| Beige | Tubing nozzle | 49.8 mm | PP | 1/4" | 4.662 860 | PLCD1700412 | 1.00 | ||
| Beige | Thread | 29.2 mm | PP | 1/4" | 4.662 845 | PLCD1000412BSPT | 1.00 | ||
| Beige | Panel mounting tubing nozzle | 49.5 mm | PP | 1/4" | 4.662 855 | PLCD1600412 | 1.00 | ||
| Beige | Tubing nozzle | 49.8 mm | PP | 1/4" | 4.662 863 | PLCD1700612 | 1.00 |
