Quick-lock couplings with valve, PMC Series, Acetal
For standard applications, such as optical testing equipment, analytical equipment for chemicals, medical equipment and gas testing systems. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Combinable with MC Series couplings
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| White | In-Line compression fitting | 41.9 mm | Acetal | 1/8" | 4.662 894 | PMCD13025 | 1.00 | ||

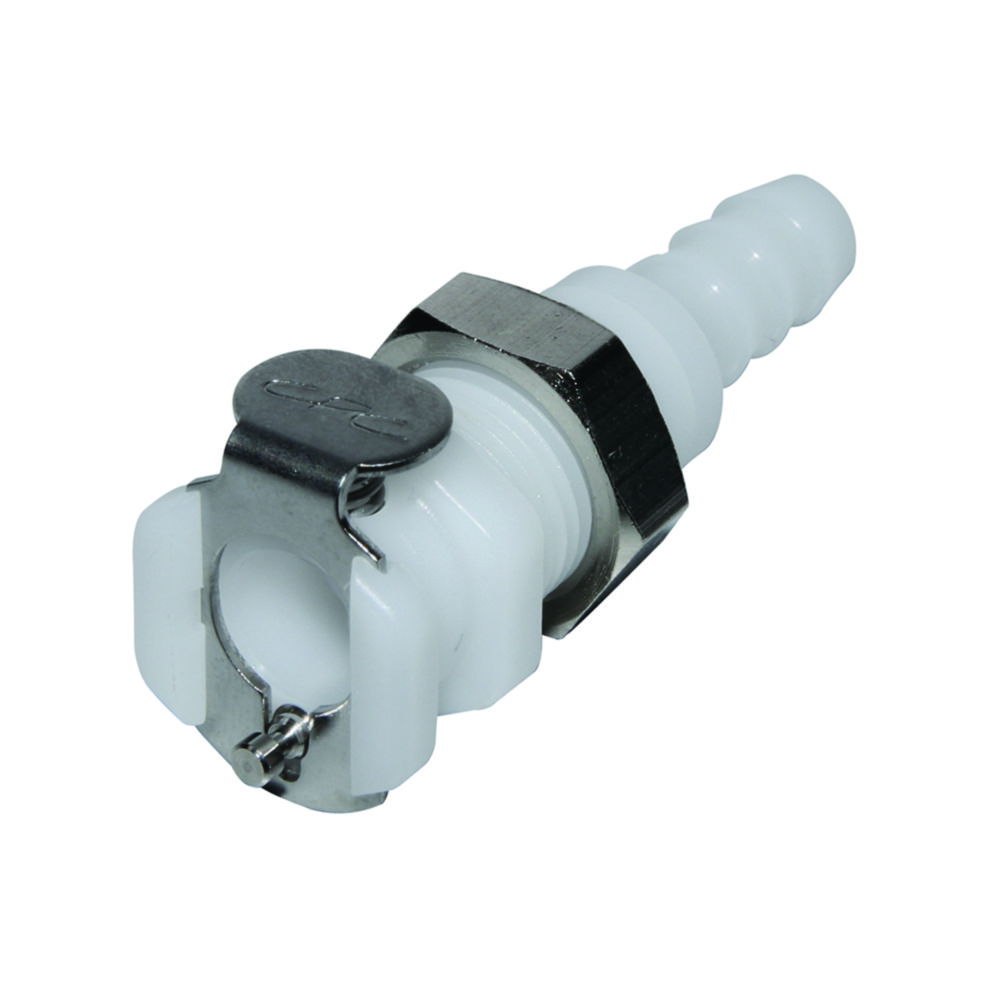

| White | Panel mounting tubing nozzle | 47.0 mm | Acetal | 1/8" | 4.662 901 | PMCD1603 | 1.00 | ||
| White | Thread | 25.4 mm | Acetal | 1/8" | 4.662 891 | PMCD1002BSPT | 1.00 | ||
| White | Tubing nozzle | 35.8 mm | Acetal | 1/8" | 4.662 904 | PMCD1701 | 1.00 | ||
| White | In-Line compression fitting | 44.5 mm | Acetal | 1/8" | 4.662 895 | PMCD1304 | 1.00 | ||
| White | Thread | 27.9 mm | Acetal | 1/8" | 4.662 893 | PMCD1004BSPT | 1.00 | ||
| White | Panel mounting tubing nozzle | 35.6 mm | Acetal | 1/8" | 4.662 897 | PMCD1601 | 1.00 | ||
| White | Panel mounting tubing nozzle | 41.9 mm | Acetal | 1/8" | 4.662 899 | PMCD1602 | 1.00 | ||
| White | Tubing nozzle | 47.0 mm | Acetal | 1/8" | 4.662 908 | PMCD1703 | 1.00 | ||
| White | Tubing nozzle | 41.9 mm | Acetal | 1/8" | 4.662 906 | PMCD1702 | 1.00 | ||
| White | Tubing nozzle | 47.0 mm | Acetal | 1/8" | 4.662 909 | PMCD1704 | 1.00 | ||
| White | Panel mounting tubing nozzle | 47.0 mm | Acetal | 1/8" | 4.662 902 | PMCD1604 | 1.00 |
