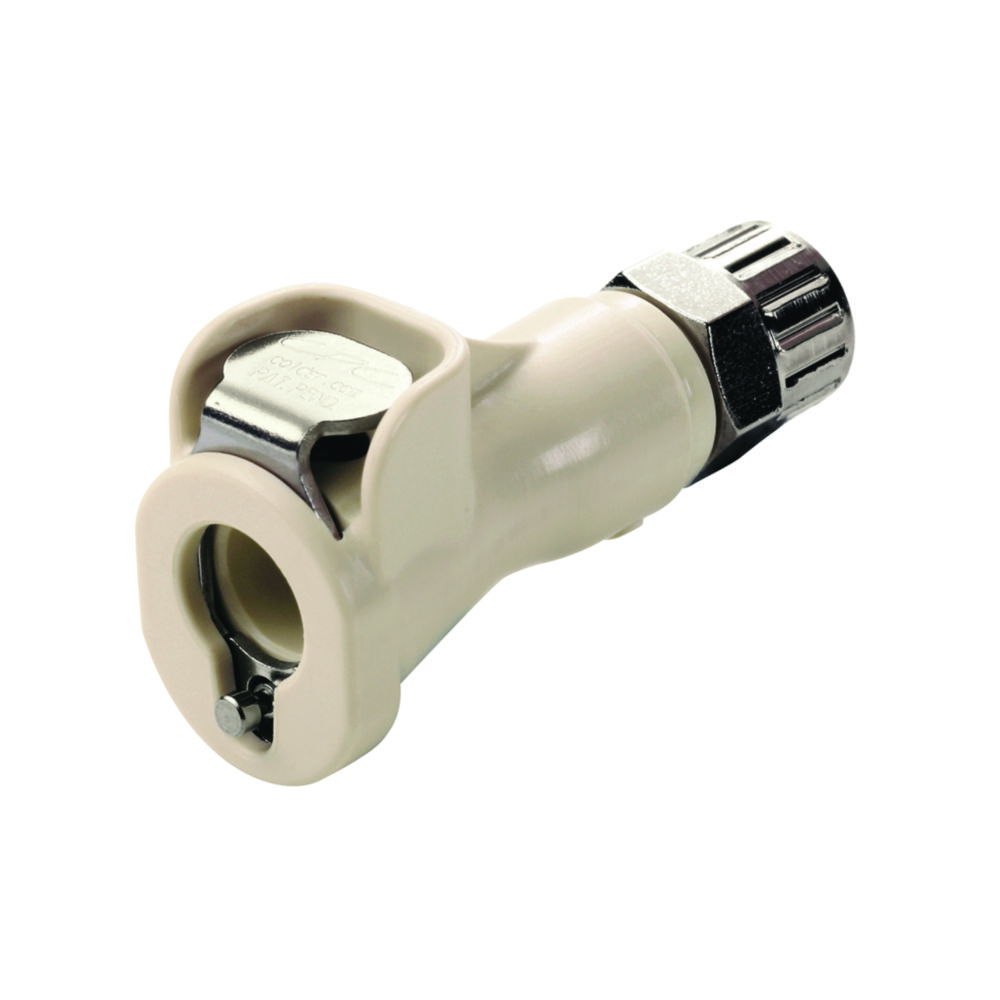

Quick-lock couplings with valve, PMC12 Series, PP
For more demanding applications, such as microbiological analysis equipment, cleaner concentrates, electroplating fluids, sterilisation equipment and water pollutant analysis. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.
- Unlocking button for one-handed operation
- Integrated connections for short installation lengths and fast installation
- With stop valve
- Sterilizable with gamma rays
Toote variatsioonid
| Colour | Connection | Length | Material | Nominal width valve | Catalog number | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| Beige | In-Line compression fitting | 44.2 mm | PP | 1/8" | 4.662 896 | PMCD130412 | 1.00 | ||
| Beige | Panel mounting tubing nozzle | 47.0 mm | PP | 1/8" | 4.662 903 | PMCD160412 | 1.00 | ||
| Beige | Thread | 27.9 mm | PP | 1/8" | 4.662 892 | PMCD100412BSPT | 1.00 | ||
| Beige | Thread | 25.4 mm | PP | 1/8" | 4.662 890 | PMCD100212BSPT | 1.00 | ||
| Beige | Panel mounting tubing nozzle | 41.9 mm | PP | 1/8" | 4.662 900 | PMCD160212 | 1.00 | ||
| Beige | Tubing nozzle | 42.4 mm | PP | 1/8" | 4.662 907 | PMCD170212 | 1.00 | ||
| Beige | Panel mounting tubing nozzle | 35.6 mm | PP | 1/8" | 4.662 898 | PMCD160112 | 1.00 | ||
| Beige | Tubing nozzle | 36.1 mm | PP | 1/8" | 4.662 905 | PMCD170112 | 1.00 | ||
| Beige | Tubing nozzle | 47.5 mm | PP | 1/8" | 4.662 910 | PMCD170412 | 1.00 |
