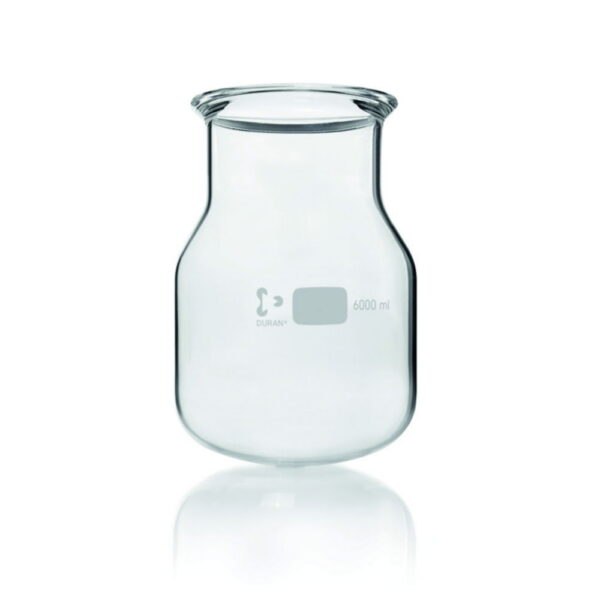

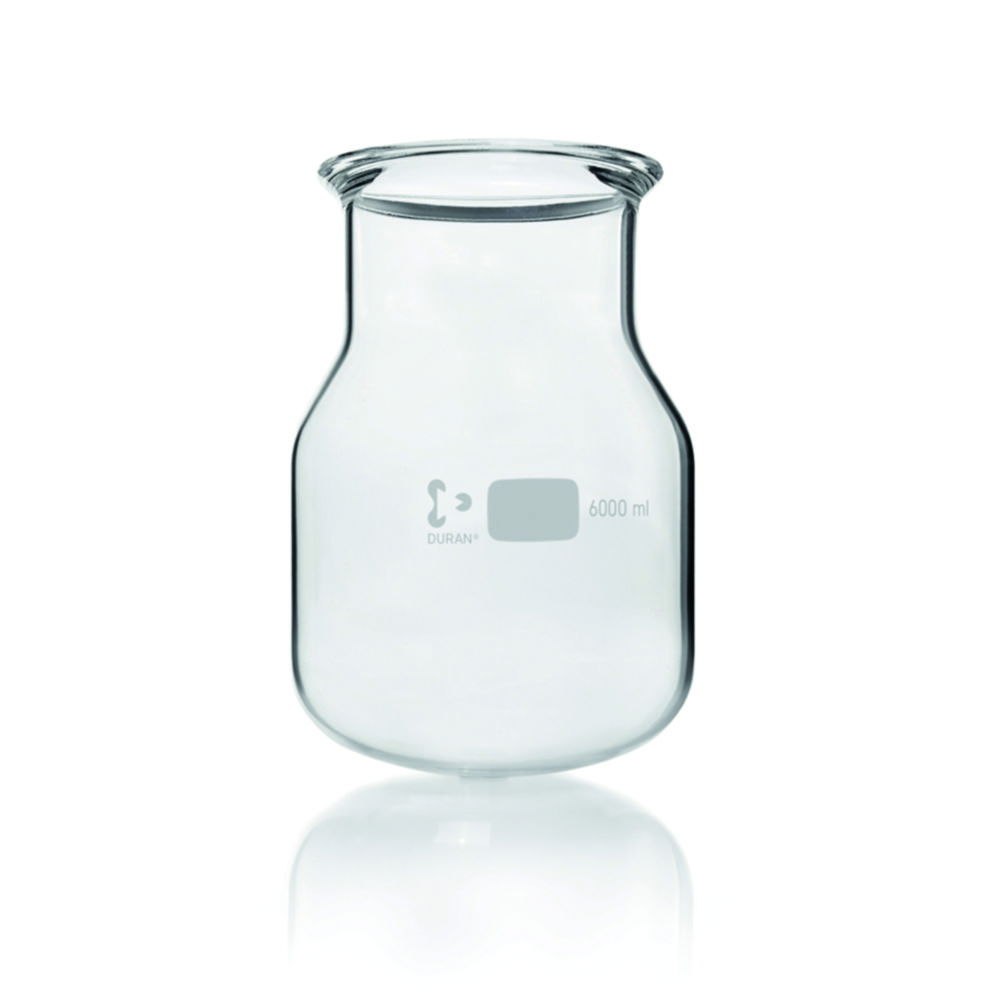

Reaction flasks, flat flange, DURAN®, flask shaped
Flanged neck with groove for vacuum use. Capacities indicated are brim-full volumes. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.
Toote variatsioonid
| Autoclavable | DN | Ext. Ø | Flange ext. Ø | Material | Max. pressure | Nominal capacity | Catalog number | Overall height | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Yes | 150 | 215 mm | 184 mm | Boro 3.3 | 1.0 bar | 7320 ml | 9.142 076 | 320 mm | 1.00 | ||
| Yes | 150 | 200 mm | 184 mm | Boro 3.3 | 1.0 bar | 5765 ml | 9.142 071 | 290 mm | 1.00 | ||
| Yes | 100 | 140 mm | 138 mm | Boro 3.3 | 1.5 bar | 2620 ml | 9.142 063 | 270 mm | 1.00 |
