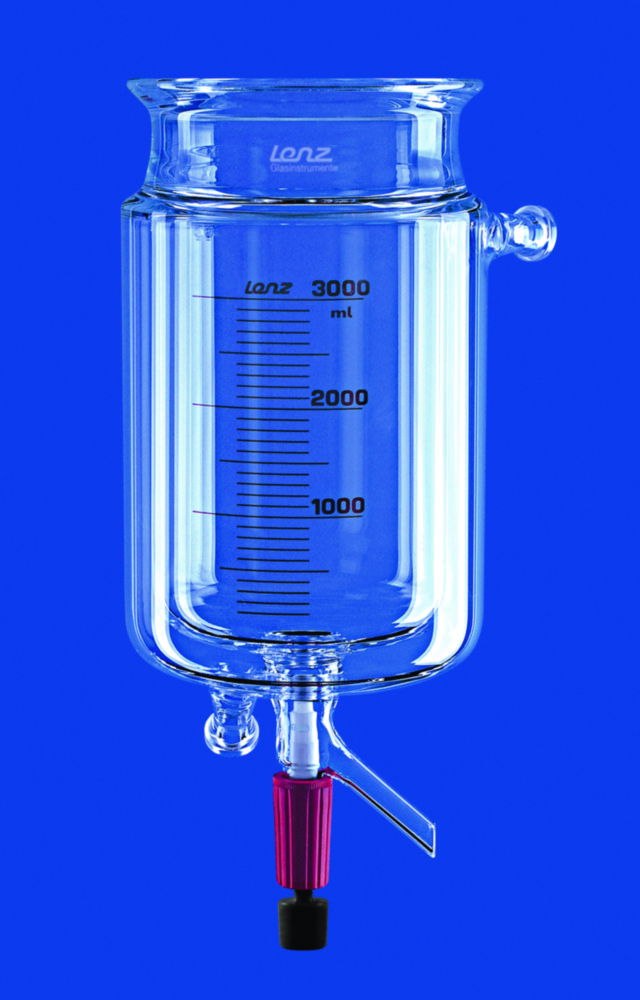

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve
- With graduation
- Laboratory flange LF
- With groove
- Two connectors with threads GL 14 or GL 18
- Made of DURAN® tubing
Other sizes on request.
Toote variatsioonid
| DN | Ext. Ø | Height int. | Int. Ø | Material | Nominal capacity | Catalog number | Overall height | Thread | With jacket | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 130 mm | 140 mm | 99 mm | DURAN® tubing | 250 ml | 6.230 277 | 275 mm | GL 18 | Yes | 1.00 | ||
| 60 | 90 mm | 115 mm | 60 mm | DURAN® tubing | 100 ml | 9.142 766 | 245 mm | GL 14 | Yes | 1.00 | ||
| 150 | 190 mm | 445 mm | 150 mm | DURAN® tubing | 6000 ml | 6.243 116 | 595 mm | GL 18 | Yes | 1.00 | ||
| 100 | 130 mm | 350 mm | 99 mm | DURAN® tubing | 2000 ml | 9.142 784 | 490 mm | GL 18 | Yes | 1.00 | ||
| 150 | 190 mm | 280 mm | 150 mm | DURAN® tubing | 3000 ml | 6.243 115 | 430 mm | GL 18 | Yes | 1.00 | ||
| 100 | 190 mm | 285 mm | 150 mm | DURAN® tubing | 3000 ml | 6.243 114 | 440 mm | GL 18 | Yes | 1.00 | ||
| 60 | 90 mm | 255 mm | 60 mm | DURAN® tubing | 500 ml | 9.142 768 | 385 mm | GL 14 | Yes | 1.00 | ||
| 150 | 190 mm | 390 mm | 150 mm | DURAN® tubing | 5000 ml | 6.224 194 | 540 mm | GL 18 | Yes | 1.00 | ||
| 150 | 190 mm | 335 mm | 150 mm | DURAN® tubing | 4000 ml | 7.635 340 | 485 mm | GL 18 | Yes | 1.00 | ||
| 150 | 315 mm | 480 mm | 240 mm | DURAN® tubing | 10000 ml | 6.240 516 | 640 mm | GL 18 | Yes | 1.00 | ||
| 150 | 190 mm | 225 mm | 150 mm | DURAN® tubing | 2000 ml | 6.233 793 | 375 mm | GL 18 | Yes | 1.00 | ||
| 100 | 130 mm | 155 mm | 99 mm | DURAN® tubing | 500 ml | 9.142 781 | 295 mm | GL 18 | Yes | 1.00 | ||
| 100 | 190 mm | 340 mm | 150 mm | DURAN® tubing | 4000 ml | 9.142 787 | 495 mm | GL 18 | Yes | 1.00 | ||
| 100 | 130 mm | 220 mm | 99 mm | DURAN® tubing | 1000 ml | 9.142 782 | 360 mm | GL 18 | Yes | 1.00 | ||
| 60 | 90 mm | 170 mm | 60 mm | DURAN® tubing | 250 ml | 9.142 767 | 300 mm | GL 14 | Yes | 1.00 |
