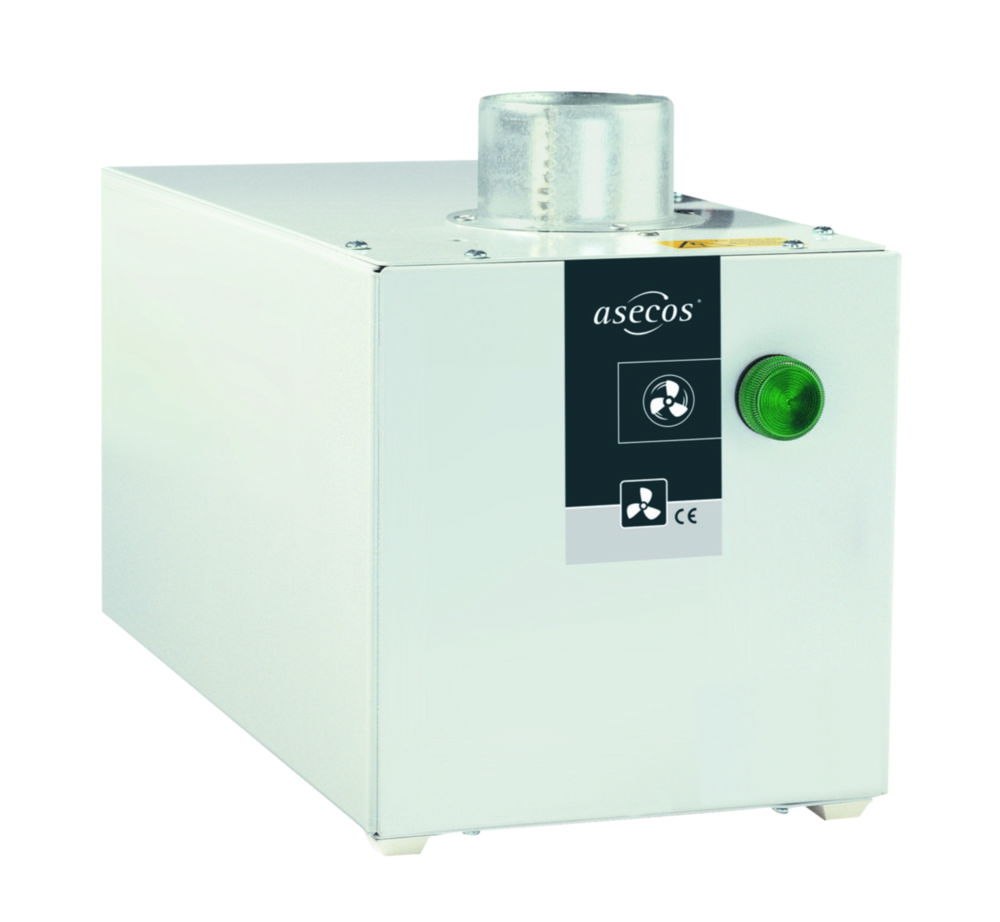

Recirculating air filter System UFA.025.030
Technical Ventilation of Sefety Storage Cabinets
- For all cabinet sizes
- For tall and under bench cabinets
- For installation on the cabinet or wall mounting or installation in the housing unit
- Powder-coated sheet steel
- With exhaust air monitoring including potential-free alarm contact
- With filter monitoring
- Filter type: activated carbon
- CE compliant
- Explosion-proof, ATEX label: CE EX II 3/- G Ex ic nA IIB T4Gc
- Installation in explosion zone: outside any EX-zone
- Extraction from explosion zone: EX-zone 2
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Max. voltage | Min. voltage | Noise level | Catalog number | Power supply | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 555 mm | 308 x 555 x 256 mm | 256 mm | 265 V | 85 V | 23 db(A) | 6.323 109 | 85 ... 265 V, 50/60 Hz , 0.13 A | UFA.025.030 | 18 kg | 308 mm | 1.00 |
