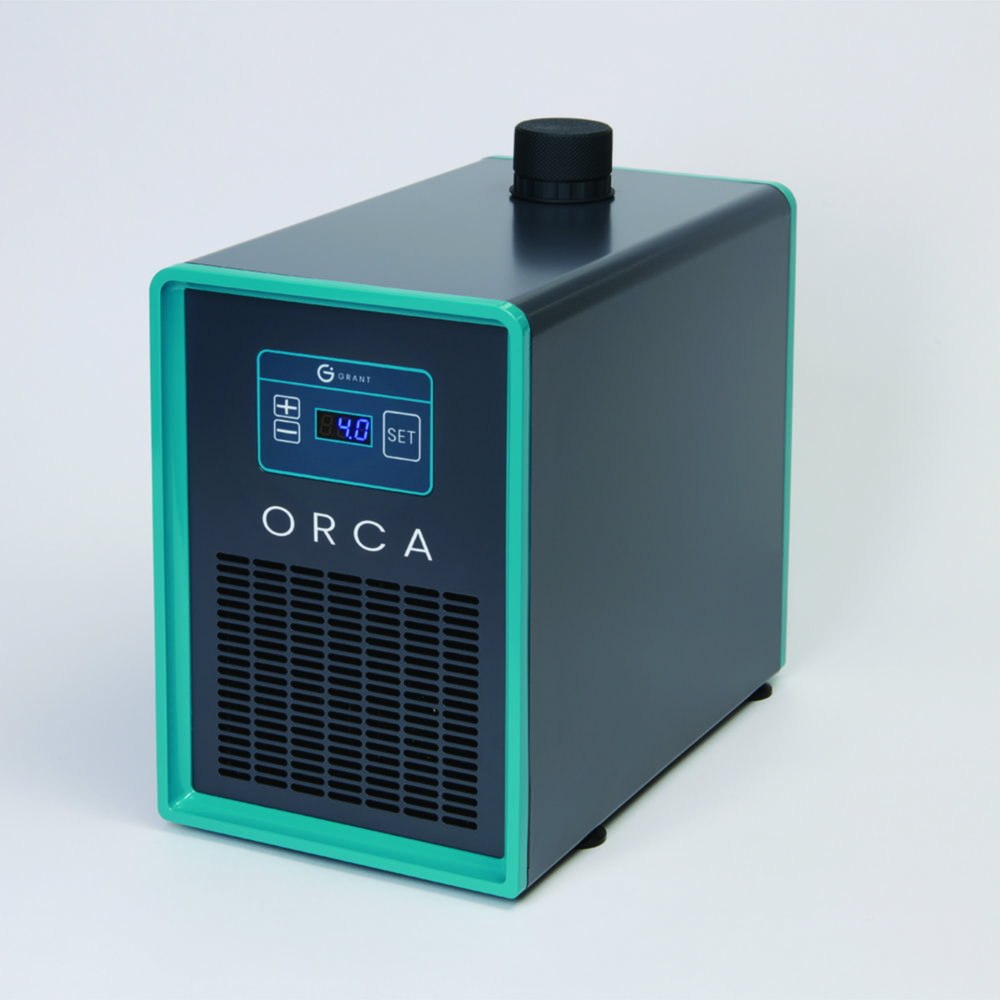

Recirculating Chiller Orca
The Orca closed-loop recirculating chiller is ideally suited to replacing tap-water-based cooling solutions in laboratories and drastically reducing energy costs. Operating costs are further reduced through the recovery and reuse of waste heat. This makes the unit a sustainable and efficiency-focused cooling solution for the modern laboratory environment.
- Closed system with a chamber volume of 1.7 l
- Energy-efficient, adaptive cooling automatically adjusts to the heat load
- Lower heat dissipation into the room reduces the load on the air conditioning system
- Effective cooling control with excellent stability
- User-friendly and intuitive interface
- Rear‑mounted connectors and switches keep the bench clear
- Easy integration thanks to a compact design with a selection of connectors and hose sets
- Very quiet operation (49 dB)
- Timer from 1 to 999 minutes, with audible alarm
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Max. flow rate | Max. temperature | Max. voltage | Min. temperature | Catalog number | Plug type | Power supply | Temp. Stability | Temperature | Type | Waranty | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 260 x 450 x 400 mm | 450 mm | 400 mm | 260 mm | 40 °C | 230 V | -10 °C | 4.720 547 | EU | 230 V, 50...60 Hz | ±0,1 °C | -10 ... 40 °C | Orca | 3 years | 20 kg | Yes | 1.00 | |||
| 260 x 450 x 400 mm | 450 mm | 400 mm | 260 mm | 40 °C | 230 V | -10 °C | 4.720 546 | UK | 230 V, 50...60 Hz | ±0,1 °C | -10 ... 40 °C | Orca | 3 years | 20 kg | Yes | 1.00 |
