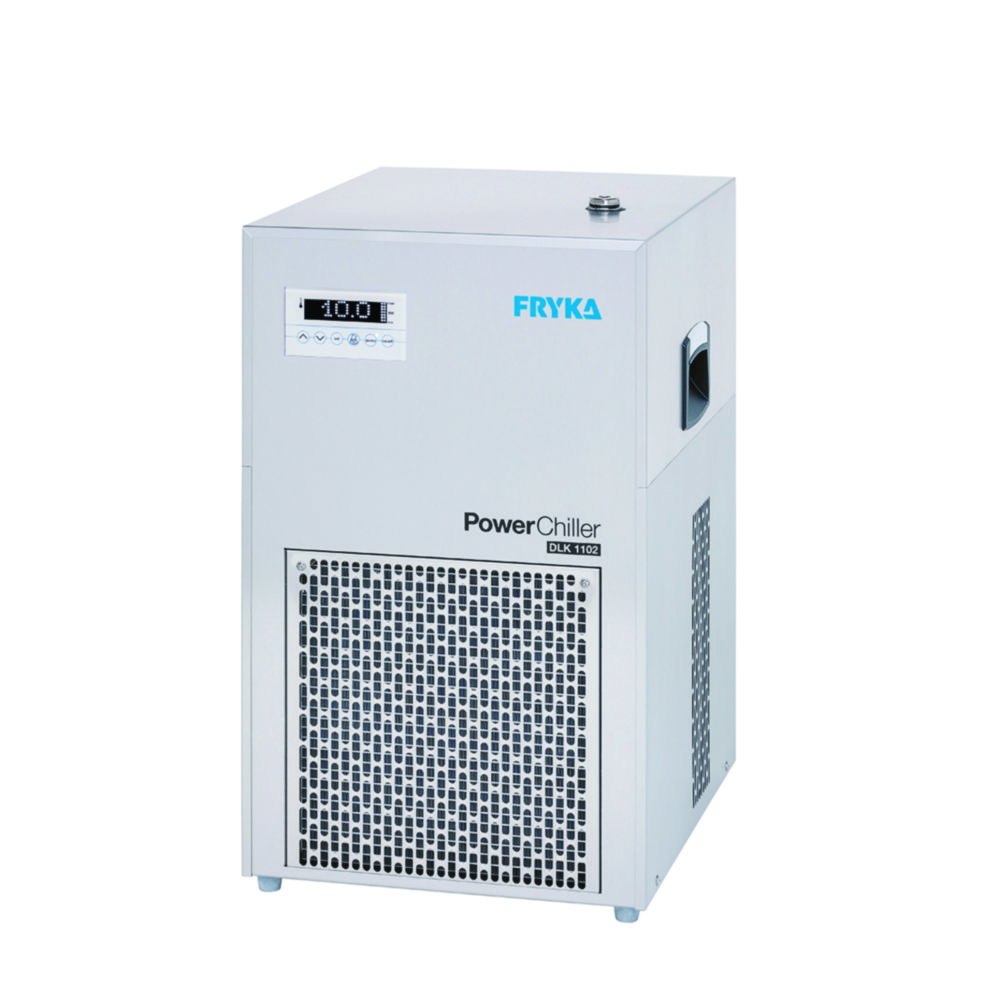

Recirculating chiller PowerChiller DLK
Powerful recirculating chiller for cooling applications and processes in laboratories, production, and industry. Environmentally friendly thanks to natural refrigerant and energy-saving fan with EC technology, which adapts the speed to demand.
- Touchscreen controller with glass screen
- Digital level indicator
- Robust stainless steel housing
- Optical and acoustic alarm
- Plain text error messages for quick diagnosis
- Overheat protection
- Flow monitoring with automatic pump switch-off in case of low liquid level
- Refrigeration unit: hermetically sealed, air-cooled, low-maintenance
- Operation with non-flammable tempering fluids, Class I (NFL)
Scope of supply: Recirculating chiller, tempering fluid, hose connections Ø 10 mm with sealing ring, hose connections Ø 13 mm with sealing ring
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | IP code | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Operation | Catalog number | Power supply | Refrigerant | Temp. Stability | Temperature | Type | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 430 x 450 x 710 mm | 450 mm | 710 mm | 430 mm | IP 20 | 40 °C | 230 V | 18 l | -10 °C | 15.4 l | Touchscreen | 6.328 916 | 230 V, 50 Hz | R290 | ±1 K (-10 °C) | -10 ... 40 °C | DLK 2102 | 15.4 ... 18 l | 47 kg | 1.00 | |||
| 385 x 450 x 620 mm | 450 mm | 620 mm | 385 mm | IP 20 | 40 °C | 230 V | 13.5 l | -10 °C | 8.5 l | Touchscreen | 6.328 915 | 230 V, 50 Hz | R290 | ±1 K (-10 °C) | -10 ... 40 °C | DLK 1102 | 8.5 ... 13.5 l | 42 kg | 1.00 |
