Recirculating cooler FL
- Splash-proof keypad with integral mains switch
- Large, bright LED display
- Reliable Microprocessor PID temperature control
- Filling level indicator
- Powerful immersion pumps, suitable for continuous operation
- Permissible temperature within return line: 80 °C max.
- Easy filling from the top with hinged protective lid
- Low liquid level protection with visual and audible alarm signal
- Stainless steel bath tanks
- Removable venting grille for cleaning of the condenser
- Front drain
- No side vents
- RS232 interface for PC connection
- Pressure indicator
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | IP code | Material bath | Max. flow rate | Max. temperature | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Temp. Stability | Temperature | Type | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 950 x 1,150 x 1610 mm | 1150 mm | 1610 mm | 950 mm | IP 21 | Stainless steel | 40 °C | 37 l | 25 °C | 15 l | 9.698 550 | ±0,5 °C | -25 ... 40 °C | FL20006 | 15 ... 37 l | 375 kg | 1.00 | |||
| 500 x 760 x 640 mm | 760 mm | 640 mm | 500 mm | IP 21 | Stainless steel | 40 °C | 17 l | -20 °C | 12 l | 9.698 534 | ±0,5 °C | -20 ... 40 °C | FL1701 | 12 ... 17 l | 78 kg | 1.00 | |||
| 600 x 760 x 1150 mm | 760 mm | 1150 mm | 600 mm | IP 21 | Stainless steel | 40 °C | 30 l | -20 °C | 24 l | 9.698 536 | ±0,5 °C | -20 ... 40 °C | FL2503 | 24 ... 30 l | 146 kg | 1.00 | |||
| 500 x 760 x 640 mm | 760 mm | 640 mm | 500 mm | IP 21 | Stainless steel | 40 °C | 17 l | -20 °C | 12 l | 9.698 533 | ±0,5 °C | -20 ... 40 °C | FL1203 | 12 ... 17 l | 91 kg | 1.00 | |||
| 500 x 760 x 640 mm | 760 mm | 640 mm | 500 mm | IP 21 | Stainless steel | 40 °C | 17 l | -20 °C | 12 l | 9.698 535 | ±0,5 °C | -20 ... 40 °C | FL1703 | 12 ... 17 l | 91 kg | 1.00 | |||
| 780 x 850 x 1480 mm | 850 mm | 1480 mm | 780 mm | IP 21 | Stainless steel | 40 °C | 47 l | -20 °C | 39 l | 9.698 541 | ±0,5 °C | -20 ... 40 °C | FL11006 | 39 ... 47 l | 248 kg | 1.00 | |||
| 500 x 760 x 640 mm | 760 mm | 640 mm | 500 mm | IP 21 | Stainless steel | 40 °C | 17 l | -20 °C | 12 l | 9.698 532 | ±0,5 °C | -20 ... 40 °C | FL1201 | 12 ... 17 l | 78 kg | 1.00 | |||
| 250 x 500 x 600 mm | 500 mm | 600 mm | 250 mm | IP 21 | Stainless steel | 40 °C | 4.5 l | -20 °C | 3 l | 9.698 530 | ±0,5 °C | -20 ... 40 °C | FL300 | 3 ... 4.5 l | 35 kg | 1.00 | |||
| 600 x 760 x 1150 mm | 760 mm | 1150 mm | 600 mm | IP 21 | Stainless steel | 40 °C | 30 l | -15 °C | 24 l | 9.698 537 | ±0,5 °C | -15 ... 40 °C | FL2506 | 24 ... 30 l | 158 kg | 1.00 | |||
| 600 x 760 x 1150 mm | 760 mm | 1150 mm | 600 mm | IP 21 | Stainless steel | 40 °C | 30 l | -20 °C | 24 l | 9.698 539 | ±0,5 °C | -20 ... 40 °C | FL4006 | 24 ... 30 l | 157 kg | 1.00 | |||
| 600 x 760 x 1150 mm | 760 mm | 1150 mm | 600 mm | IP 21 | Stainless steel | 40 °C | 30 l | -20 °C | 24 l | 9.698 538 | ±0,5 °C | -20 ... 40 °C | FL4003 | 24 ... 30 l | 148 kg | 1.00 | |||

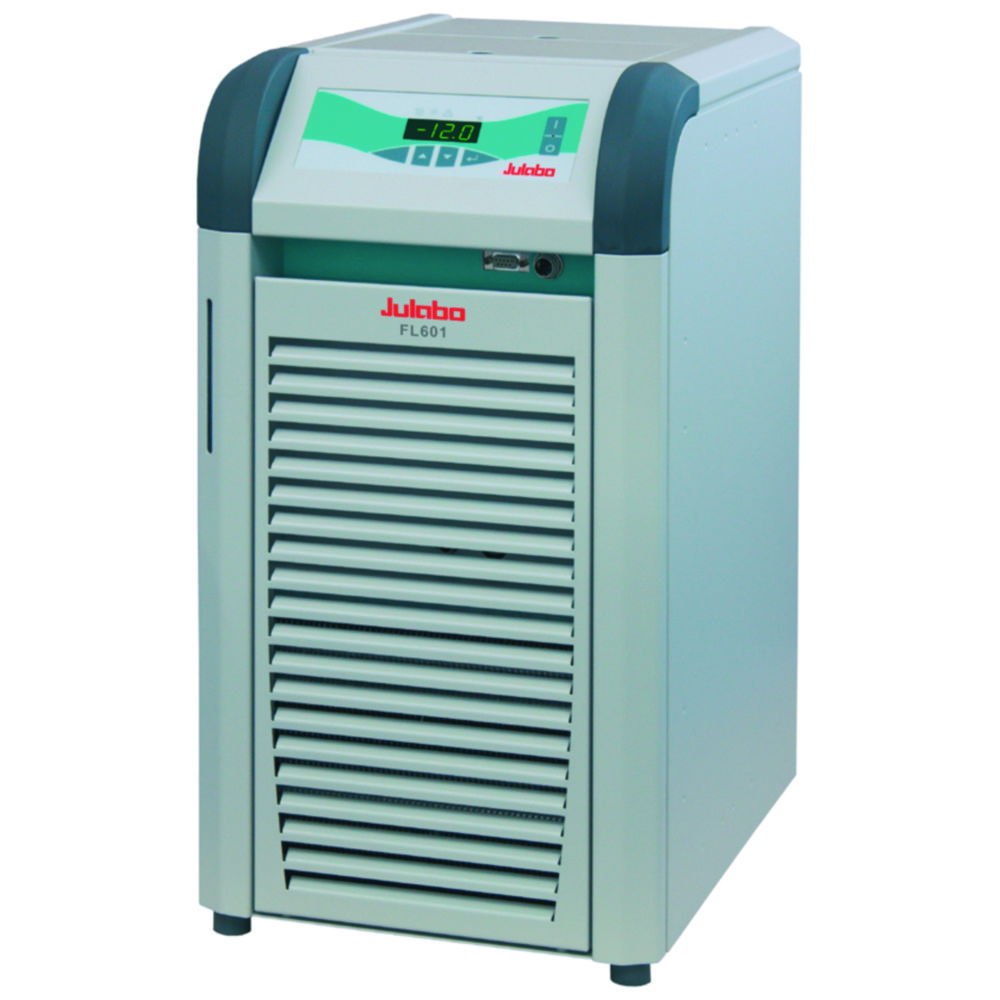

| 320 x 500 x 620 mm | 500 mm | 620 mm | 320 mm | IP 21 | Stainless steel | 40 °C | 8 l | -20 °C | 5.5 l | 9.698 531 | ±0,5 °C | -20 ... 40 °C | FL601 | 5.5 ... 8 l | 48 kg | 1.00 | |||
| 780 x 850 x 1480 mm | 850 mm | 1480 mm | 780 mm | IP 21 | Stainless steel | 40 °C | 47 l | -20 °C | 39 l | 9.698 540 | ±0,5 °C | -20 ... 40 °C | FL7006 | 39 ... 47 l | 252 kg | 1.00 |
