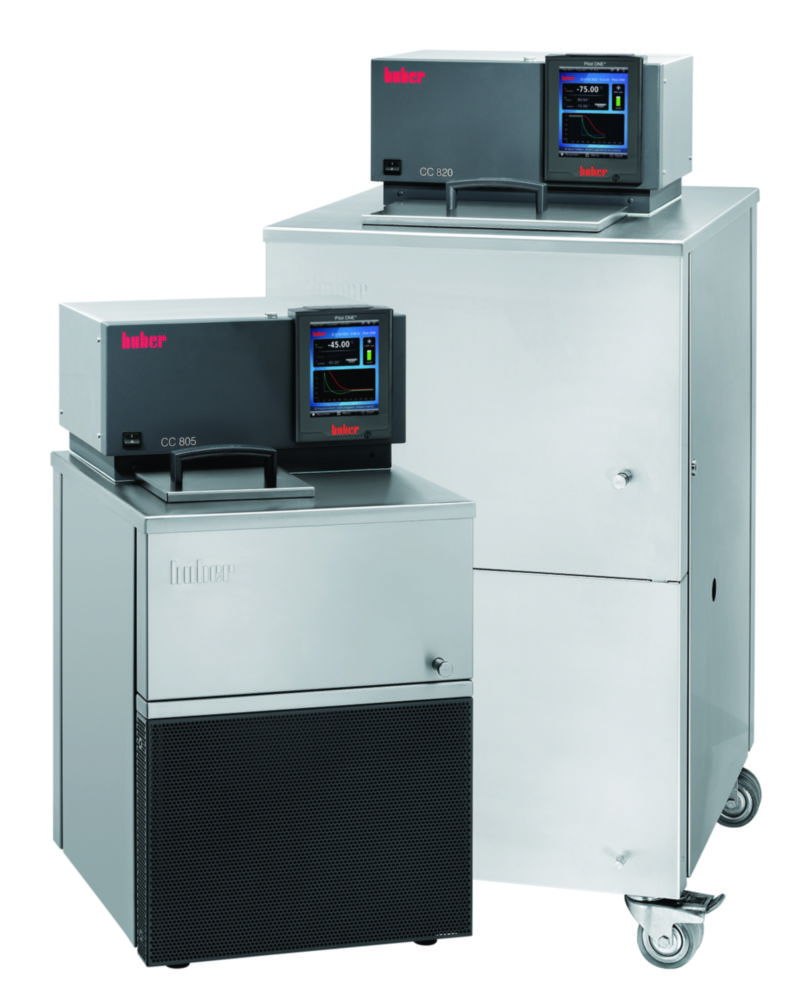

Refrigerated bath circulators to -90 °C

Name: Refrigerated bath circulators to -90 °C
SKU: prd_llg_segment_5977
Availability: InStock

Option: Natural refrigerant available on request.

Function version available by E-grade.

Toote variatsioonid

PK	Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	Catalog number	IP code	atr_llg_max_suction_capacity	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Operation	Power supply	Temp. Stability	Temperature	Type	Type of display	Volume bath	Weight	Width opening	With lid	Min. voltage
1.00	200 mm	150 mm	539 x 629 x 1,102 mm	629 mm	1102 mm	539 mm	3 kW	9.859 252	IP 20	18.5 l/min	0.4 bar	100 °C	400 V	17 l	-80 °C	Touchscreen	400 V, 50 Hz	±0,02 K	-80 ... 100 °C	CC-820w	TFT	17 l	150 kg	270 mm	Yes	-
1.00	200 mm	150 mm	539 x 629 x 1,102 mm	629 mm	1102 mm	539 mm	3 kW	9.859 251	IP 20	18.5 l/min	0.4 bar	100 °C	400 V	17 l	-80 °C	Touchscreen	400 V, 50 Hz	±0,02 K	-80 ... 100 °C	CC-820	TFT	17 l	150 kg	270 mm	Yes	-
1.00	150 mm	110 mm	550 x 600 x 911 mm	600 mm	911 mm	550 mm	1.5 kW	9.857 400	IP 20	18.5 l/min	0.4 bar	200 °C	230 V	5 l	-90 °C	Touchscreen	230 V, 50 Hz	±0,02 K	-90 ... 200 °C	CC-902	TFT	5 l	129 kg	120 mm	Yes	-
1.00	150 mm	110 mm	410 x 480 x 764 mm	480 mm	764 mm	410 mm	1.6 kW	9.859 250	IP 20	18.5 l/min	0.4 bar	100 °C	240 V	5 l	-80 °C	Touchscreen	220 ... 240 V, 50/60 Hz	±0,02 K	-80 ... 100 °C	CC-805	TFT	5 l	77 kg	120 mm	Yes	220 V
1.00	200 mm	260 mm	605 x 706 x 1,136 mm	706 mm	1136 mm	605 mm	3 kW	9.859 254	IP 20	18.5 l/min	0.4 bar	200 °C	400 V	26 l	-90 °C	Touchscreen	400 V, 50 Hz	±0,02 K	-90 ... 200 °C	CC-905w	TFT	26 l	175 kg	260 mm	Yes	-
1.00	200 mm	260 mm	605 x 706 x 1,136 mm	706 mm	1136 mm	605 mm	3 kW	9.859 253	IP 20	18.5 l/min	0.4 bar	200 °C	400 V	26 l	-90 °C	Touchscreen	400 V, 50 Hz	±0,02 K	-90 ... 200 °C	CC-905	TFT	26 l	171 kg	260 mm	Yes	-
1.00	200 mm	260 mm	605 x 706 x 1,136 mm	706 mm	1136 mm	605 mm	3 kW	9.859 255	IP 20	18.5 l/min	0.4 bar	200 °C	400 V	30 l	-90 °C	Touchscreen	400 V, 50 Hz	±0,02 K	-90 ... 200 °C	CC-906w	TFT	30 l	201 kg	260 mm	Yes	-
