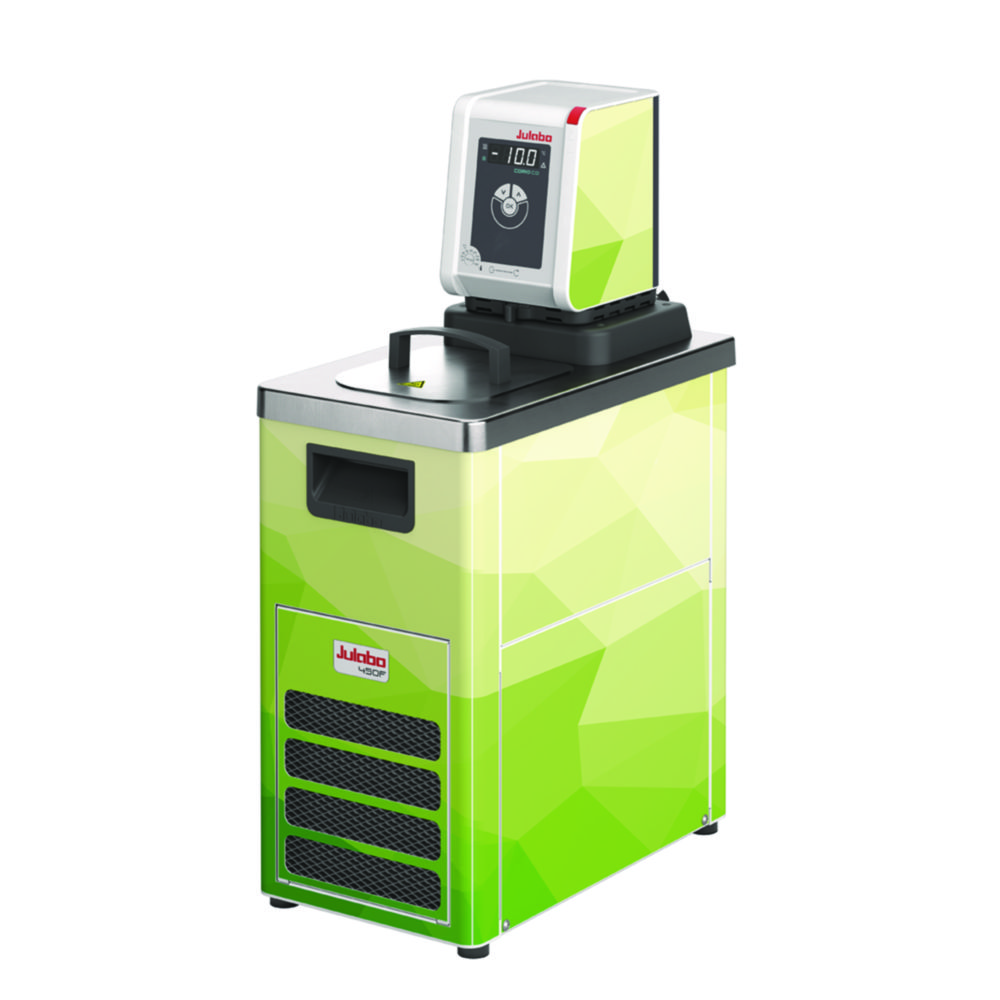

Refrigerated circulators CORIO™ CD, green foiled
Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.
- Bright, white, easy-to-read display
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- Refrigeration unit without lateral ventilation openings
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Refrigerant | Temp. Stability | Temperature | Type | Volume bath | Weight | Width opening | With lid | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 150 mm | 230 x 400 x 650 mm | 400 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 4 l | -30 °C | 3 l | 4.710 158 | 230 V, 50 Hz | R290 | ±0,03 °C | -30 ... 150 °C | CD-450F | 3 ... 4 l | 25.1 kg | 130 mm | Yes | Yes | 1.00 | |||
| 150 mm | 130 mm | 330 x 470 x 700 mm | 470 mm | 700 mm | 330 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 7.5 l | -40 °C | 5 l | 4.710 160 | 230 V, 50 Hz | R1270 | ±0,03 °C | -40 ... 150 °C | CD-1200F | 5 ... 7.5 l | 42 kg | 180 mm | Yes | Yes | 1.00 | |||
| 150 mm | 150 mm | 230 x 400 x 650 mm | 400 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 4 l | -30 °C | 3 l | 4.710 157 | 230 V, 50 Hz | R290 | ±0,03 °C | -30 ... 150 °C | CD-310F | 3 ... 4 l | 25.2 kg | 130 mm | Yes | Yes | 1.00 | |||
| 150 mm | 130 mm | 330 x 470 x 700 mm | 470 mm | 700 mm | 330 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 7.5 l | -40 °C | 5 l | 4.710 159 | 230 V, 50 Hz | R1270 | ±0,03 °C | -40 ... 150 °C | CD-800F | 5 ... 7.5 l | 42 kg | 180 mm | Yes | Yes | 1.00 |
