Refrigerated circulators DYNEO™ DD
Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.
- 3.5″ TFT colour display with multilingual user interface
- Integrated programmer for 8 x 60 program steps
- Easy pump switching between internal and external circulation
- External pump connections (M16x1)
- Infinitely adjustable pressure pump
- USB connection
- Space-saving cooling coil design yields more usable space in the bath tank
- External Pt100 connection
- Stainless steel bath tank including bath lid and drain tap
- Removable ventilation grid
- 2 hose olives each suitable for hose inner diameter 8 and 12 mm included
- Class III (FL) acc. to DIN 12876-1
Toote variatsioonid
| PK | Bath depth | Depth opening | Ext. depth | Catalog number | Ext. height | Ext. width | Heating capacity | Material bath | Max. flow rate | Max. temperature | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Refrigerant | Temp. Stability | Type | Type of display | Weight | Width opening | With lid | With timer | IP code | Temperature | Volume bath | External dimensions (WxDxH) | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 300 mm | 410 mm | - | 4.663 232 | - | - | 2 kW | Stainless steel | 200 °C | 56 l | -38 °C | 42 l | R449A | ±0,01 °C | DD-1001F | TFT | 73.7 kg | 350 mm | Yes | Yes | IP 21 | -38 ... 200 °C | 42 ... 56 l | - | |||
| 1.00 | 150 mm | 150 mm | 420 mm | 4.663 227 | 660 mm | 240 mm | 2 kW | Stainless steel | 200 °C | 4 l | 25 °C | 3 l | R134a | ±0,01 °C | DD-300F | TFT | 27.7 kg | 130 mm | Yes | Yes | - | 25 ... 200 °C | 3 ... 4 l | 240 x 420 x 660 mm | |||
| 1.00 | 150 mm | 130 mm | 470 mm | 4.693 946 | 700 mm | 330 mm | 2 kW | Stainless steel | 200 °C | 7.5 l | -50 °C | 5 l | R1270 | ±0,01 °C | DD-1200FW | TFT | 44 kg | 180 mm | Yes | Yes | IP 21 | -50 ... 200 °C | 5 ... 7.5 l | 330 x 470 x 700 mm | |||
| 1.00 | 150 mm | 150 mm | 400 mm | 4.685 634 | 650 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | R290 | ±0,01 °C | DD-310F | TFT | 25.4 kg | 130 mm | Yes | Yes | IP 21 | -30 ... 200 °C | 3 ... 4 l | 230 x 400 x 650 mm | |||
| 1.00 | 150 mm | 150 mm | 390 mm | 4.663 225 | 650 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 4 l | -20 °C | 3 l | R134a | ±0,01 °C | DD-200F | TFT | 25.7 kg | 130 mm | Yes | Yes | IP 21 | 20 ... 200 °C | 3 ... 4 l | 230 x 390 x 650 mm | |||
| 1.00 | 150 mm | 130 mm | 470 mm | 4.692 241 | 700 mm | 330 mm | 2 kW | Stainless steel | 200 °C | 7.5 l | -50 °C | 5 l | R1270 | ±0,01 °C | DD-1200F | TFT | 44 kg | 180 mm | Yes | Yes | - | -50 ... 200 °C | 5 ... 7.5 l | 330 x 470 x 700 mm | |||
| 1.00 | 150 mm | 150 mm | 400 mm | 4.685 643 | 650 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | R449A | ±0,01 °C | DD-450F | TFT | 27.4 kg | 130 mm | Yes | Yes | IP 21 | -30 ... 200 °C | 3 ... 4 l | 230 x 400 x 650 mm | |||
| 1.00 | 150 mm | 130 mm | 470 mm | 4.692 238 | 700 mm | 330 mm | 2 kW | Stainless steel | 200 °C | 7.5 l | -40 °C | 5 l | R1270 | ±0,01 °C | DD-800F | TFT | 42 kg | 180 mm | Yes | Yes | - | 40 ... 200 °C | 5 ... 7.5 l | 330 x 470 x 700 mm | |||
| 1.00 | 150 mm | 130 mm | 490 mm | 4.663 231 | 740 mm | 420 mm | 2 kW | Stainless steel | 200 °C | 7.5 l | -50 °C | 5 l | R449A | ±0,01 °C | DD-1000F | TFT | 51.2 kg | 180 mm | Yes | Yes | - | -50 ... 200 °C | 5 ... 7.5 l | 420 x 490 x 740 mm | |||
| 1.00 | 200 mm | 150 mm | 470 mm | 4.663 229 | 740 mm | 330 mm | 2 kW | Stainless steel | 200 °C | 10 l | -35 °C | 8 l | R449A | ±0,01 °C | DD-601F | TFT | 38.2 kg | 220 mm | Yes | Yes | - | -35 ... 200 °C | 8 ... 10 l | 330 x 470 x 740 mm | |||
| 1.00 | 200 mm | 350 mm | 590 mm | 4.687 384 | 690 mm | 370 mm | 2 kW | Stainless steel | 200 °C | 26 l | -32 °C | 20 l | R290 | ±0,01 °C | DD-449F | TFT | 39.5 kg | 280 mm | Yes | Yes | IP 21 | -32 ... 200 °C | 20 ... 26 l | 370 x 590 x 690 mm | |||
| 1.00 | 150 mm | 150 mm | 400 mm | 4.685 637 | 650 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | R449A | ±0,01 °C | DD-310F | TFT | 25.4 kg | 130 mm | Yes | Yes | IP 21 | -30 ... 200 °C | 3 ... 4 l | 230 x 400 x 650 mm | |||
| 1.00 | 150 mm | 150 mm | 400 mm | 4.685 640 | 650 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | R290 | ±0,01 °C | DD-450F | TFT | 27.4 kg | 130 mm | Yes | Yes | IP 21 | -30 ... 200 °C | 3 ... 4 l | 230 x 400 x 650 mm | |||

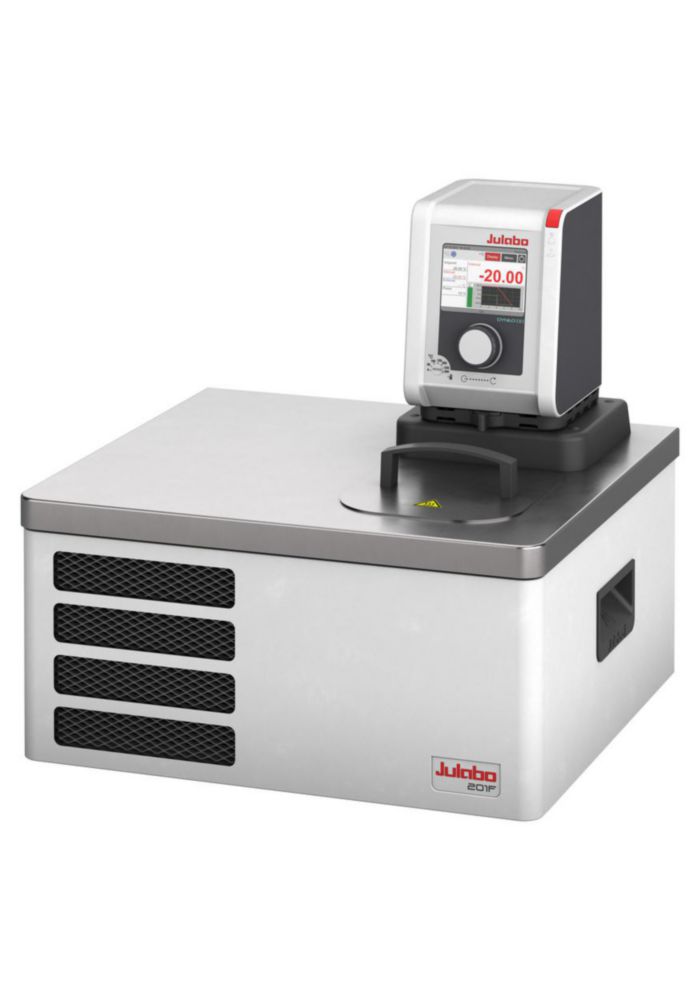

| 1.00 | 150 mm | 150 mm | 410 mm | 4.663 226 | 440 mm | 440 mm | 2 kW | Stainless steel | 200 °C | 4 l | -20 °C | 3 l | R134a | ±0,01 °C | DD-201F | TFT | 24.7 kg | 130 mm | Yes | Yes | - | 20 ... 200 °C | 3 ... 4 l | 440 x 410 x 440 mm | |||
| 1.00 | 150 mm | 150 mm | 390 mm | 4.693 943 | 650 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 4 l | -20 °C | 3 l | R290 | ±0,01 °C | DD-200F | TFT | 25.7 kg | 130 mm | Yes | Yes | IP 21 | 20 ... 200 °C | 3 ... 4 l | 230 x 390 x 650 mm |
