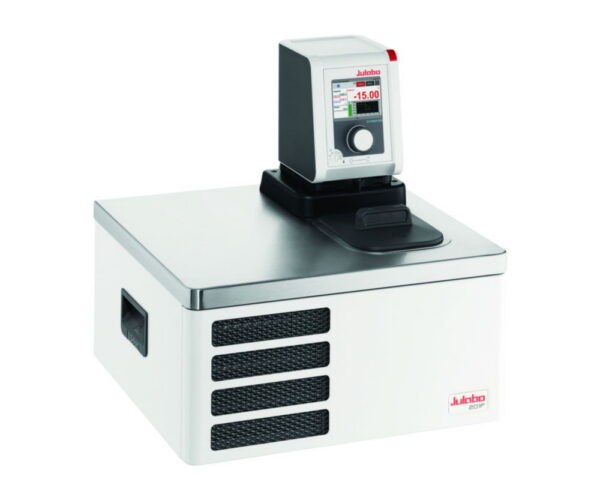

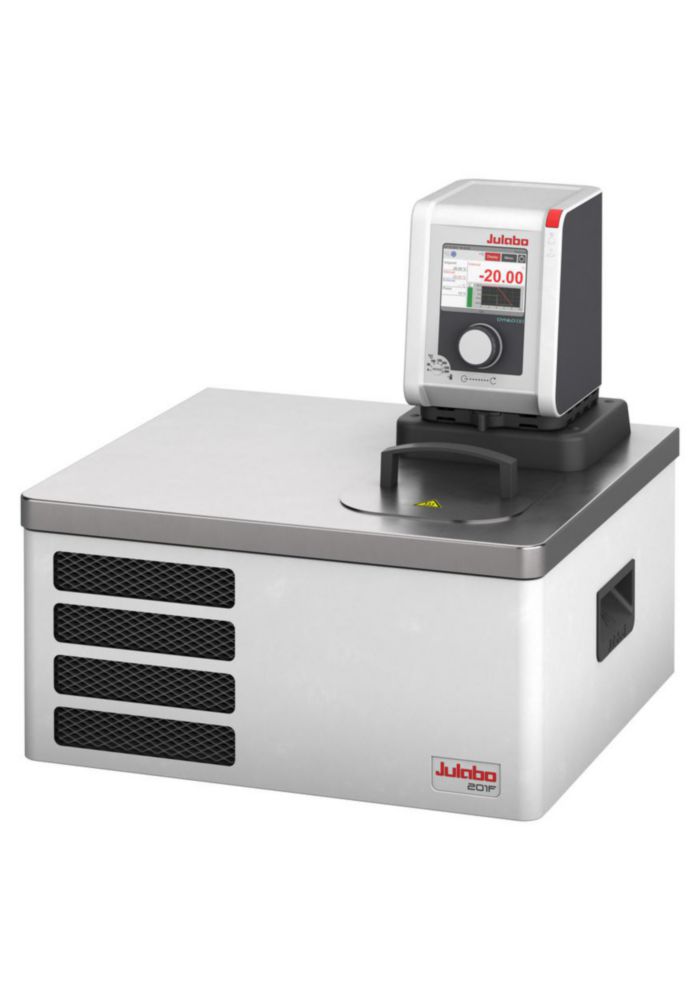

Refrigerated circulators DYNEO™ DD, with RS232 interface
- RS232 interface
Toote variatsioonid
| Bath depth | Depth opening | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | Max. temperature | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Refrigerant | Temp. Stability | Type | Type of display | Weight | Width opening | With lid | With timer | PK | External dimensions (WxDxH) | Temperature | Volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 150 mm | 390 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 4 l | -20 °C | 3 l | 4.663 251 | R134a | ±0,01 °C | DD-200F.D | TFT | 25.7 kg | 130 mm | Yes | Yes | 1.00 | 230 x 390 x 650 mm | 20 ... 200 °C | 3 ... 4 l | |||
| 200 mm | 150 mm | 470 mm | 740 mm | 330 mm | 2 kW | - | Stainless steel | 200 °C | 10 l | -35 °C | 8 l | 4.663 255 | R449A | ±0,01 °C | DD-601F.D | TFT | 38.2 kg | 220 mm | Yes | Yes | 1.00 | 330 x 470 x 740 mm | -35 ... 200 °C | 8 ... 10 l | |||
| 150 mm | 130 mm | 470 mm | 700 mm | 330 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 7.5 l | -50 °C | 5 l | 4.693 948 | R1270 | ±0,01 °C | DD-1200FW.D | TFT | 44 kg | 180 mm | Yes | Yes | 1.00 | 330 x 470 x 700 mm | -50 ... 200 °C | 5 ... 7.5 l | |||
| 300 mm | 410 mm | - | - | - | 2 kW | IP 21 | Stainless steel | 200 °C | 56 l | -38 °C | 42 l | 4.663 258 | R449A | ±0,01 °C | DD-1001F.D | TFT | 73.7 kg | 350 mm | Yes | Yes | 1.00 | - | -38 ... 200 °C | 42 ... 56 l | |||
| 150 mm | 150 mm | 410 mm | 440 mm | 440 mm | 2 kW | - | Stainless steel | 200 °C | 4 l | -20 °C | 3 l | 4.663 252 | R134a | ±0,01 °C | DD-201F.D | TFT | 24.7 kg | 130 mm | Yes | Yes | 1.00 | 440 x 410 x 440 mm | 20 ... 200 °C | 3 ... 4 l | |||
| 150 mm | 150 mm | 400 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | 4.685 636 | R290 | ±0,01 °C | DD-310F.D | TFT | 25.4 kg | 130 mm | Yes | Yes | 1.00 | 230 x 400 x 650 mm | -30 ... 200 °C | 3 ... 4 l | |||
| 150 mm | 150 mm | 400 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | 4.685 639 | R449A | ±0,01 °C | DD-310F.D | TFT | 25.4 kg | 130 mm | Yes | Yes | 1.00 | 230 x 400 x 650 mm | -30 ... 200 °C | 3 ... 4 l | |||
| 150 mm | 150 mm | 420 mm | 660 mm | 240 mm | 2 kW | - | Stainless steel | 200 °C | 4 l | 25 °C | 3 l | 4.663 253 | R134a | ±0,01 °C | DD-300F.D | TFT | 27.7 kg | 130 mm | Yes | Yes | 1.00 | 240 x 420 x 660 mm | 25 ... 200 °C | 3 ... 4 l | |||
| 150 mm | 150 mm | 400 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | 4.685 642 | R290 | ±0,01 °C | DD-450F.D | TFT | 27.4 kg | 130 mm | Yes | Yes | 1.00 | 230 x 400 x 650 mm | -30 ... 200 °C | 3 ... 4 l | |||
| 150 mm | 130 mm | 490 mm | 740 mm | 420 mm | 2 kW | - | Stainless steel | 200 °C | 7.5 l | -50 °C | 5 l | 4.663 257 | R449A | ±0,01 °C | DD-1000F.D | TFT | 51.2 kg | 180 mm | Yes | Yes | 1.00 | 420 x 490 x 740 mm | -50 ... 200 °C | 5 ... 7.5 l | |||
| 150 mm | 150 mm | 400 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 4 l | -30 °C | 3 l | 4.685 645 | R449A | ±0,01 °C | DD-450F.D | TFT | 27.4 kg | 130 mm | Yes | Yes | 1.00 | 230 x 400 x 650 mm | -30 ... 200 °C | 3 ... 4 l | |||
| 200 mm | 350 mm | 590 mm | 690 mm | 370 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 26 l | -32 °C | 20 l | 4.687 386 | R290 | ±0,01 °C | DD-449F.D | TFT | 39.5 kg | 280 mm | Yes | Yes | 1.00 | 370 x 590 x 690 mm | -32 ... 200 °C | 20 ... 26 l | |||
| 150 mm | 150 mm | 390 mm | 650 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 200 °C | 4 l | -20 °C | 3 l | 4.693 945 | R290 | ±0,01 °C | DD-200F.D | TFT | 25.7 kg | 130 mm | Yes | Yes | 1.00 | 230 x 390 x 650 mm | 20 ... 200 °C | 3 ... 4 l | |||
| 150 mm | 130 mm | 470 mm | 700 mm | 330 mm | 2 kW | - | Stainless steel | 200 °C | 7.5 l | -40 °C | 5 l | 4.692 240 | R1270 | ±0,01 °C | DD-800F.D | TFT | 42 kg | 180 mm | Yes | Yes | 1.00 | 330 x 470 x 700 mm | 40 ... 200 °C | 5 ... 7.5 l | |||
| 150 mm | 130 mm | 470 mm | 700 mm | 330 mm | 2 kW | - | Stainless steel | 200 °C | 7.5 l | -50 °C | 5 l | 4.692 243 | R1270 | ±0,01 °C | DD-1200F.D | TFT | 44 kg | 180 mm | Yes | Yes | 1.00 | 330 x 470 x 700 mm | -50 ... 200 °C | 5 ... 7.5 l |
