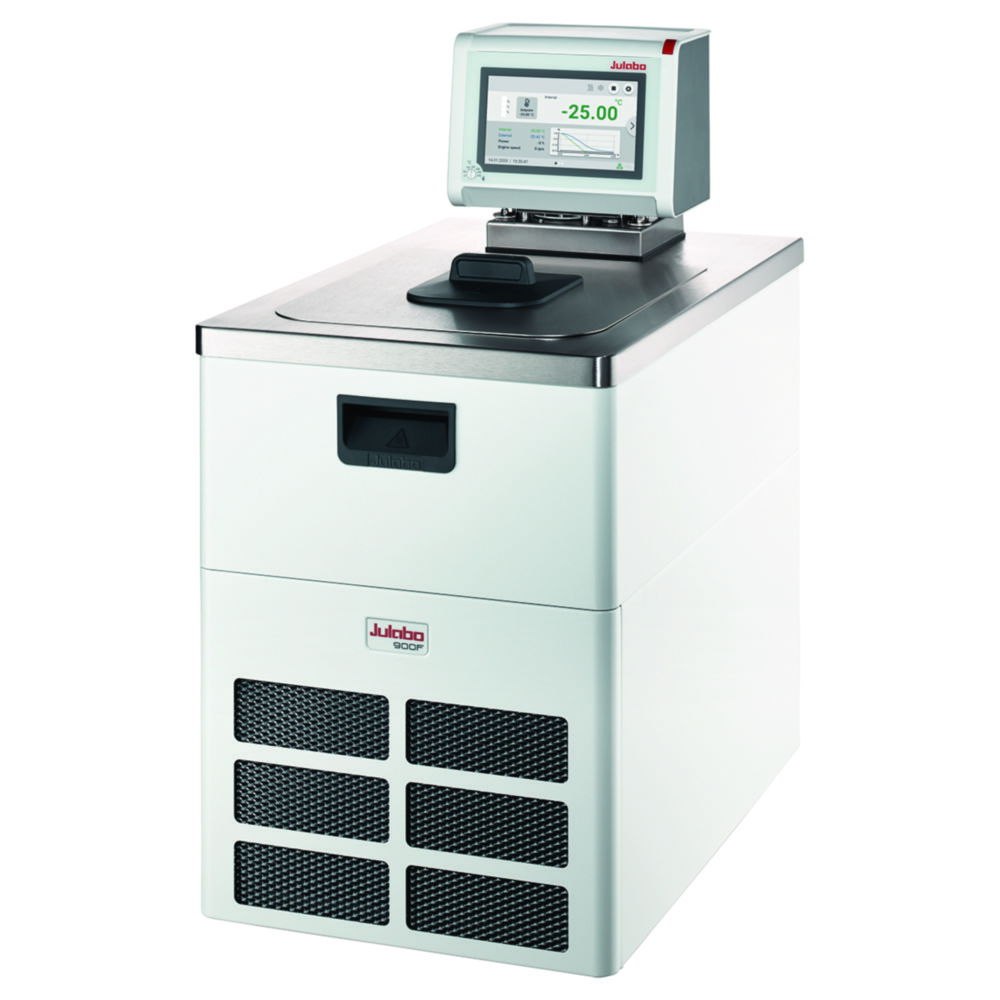

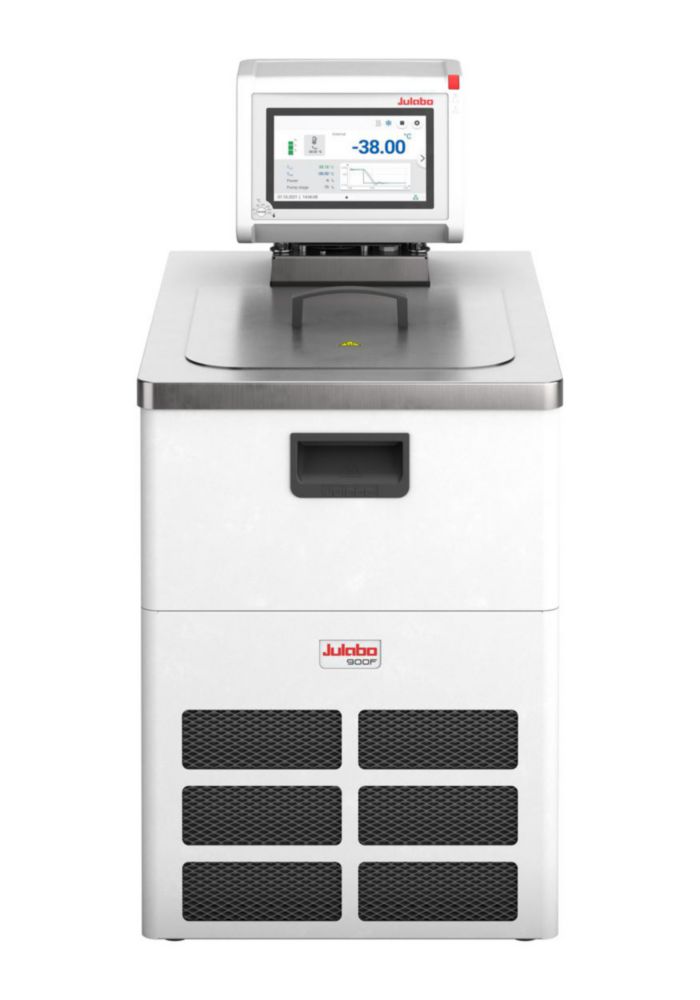

Refrigerated circulators MAGIO™ MS/MX

Refrigerated circulators for precise, reliable temperature control of demanding external applications, e.g. in basic research, material testing and technical installations.

High-resolution 7″ TFT touch display with multilingual user interface

External pump connections (M16x1)

Integrated programmer for 8 x 60 program steps

Infinitely adjustable, extremely powerful pressure and suction pump

External Pt100 connection

USB interface

RS232/RS485 interface

Ethernet interface

Modbus

Connections for solenoid valve

Medium-contacting parts made of stainless steel

2 hose olives each suitable for hose inner diameter 8 and 12 mm included

Class III (FL) acc. to DIN 12876-1

Toote variatsioonid

Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	IP code	Material bath	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Min. voltage	atr_llg_min_volume_bath	Catalog number	Power supply	Refrigerant	Temp. Stability	Temperature	Type	Volume bath	Weight	Width opening	With lid	With timer	PK
150 mm	130 mm	330 x 470 x 700 mm	470 mm	700 mm	330 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	7.5 l	-40 °C	200 V	5 l	4.692 244	200 ... 230 V, 50/60 Hz	R1270	±0,01 °C	40 ... 200 °C	MS-800F	5 ... 7.5 l	44 kg	180 mm	Yes	Yes	1.00
200 mm	130 mm	400 x 500 x 890 mm	500 mm	890 mm	400 mm	3 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	11 l	-50 °C	200 V	6.5 l	4.693 950	200 ... 230 V, 50/60 Hz	R1270	±0,01 °C	-50 ... 200 °C	MX-1800F	6.5 ... 11 l	61 kg	180 mm	Yes	Yes	1.00
150 mm	130 mm	420 x 490 x 740 mm	490 mm	740 mm	420 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	7.5 l	-50 °C	200 V	5 l	4.678 308	200 ... 230 V, 50/60 Hz	R449A	±0,01 °C	-50 ... 200 °C	MS-1000F	5 ... 7.5 l	54.1 kg	180 mm	Yes	Yes	1.00
150 mm	150 mm	230 x 400 x 650 mm	400 mm	650 mm	230 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	4 l	-30 °C	200 V	3 l	4.685 646	200 ... 230 V, 50/60 Hz	R290	±0,01 °C	-30 ... 200 °C	MS-450F	3 ... 4 l	29 kg	130 mm	Yes	Yes	1.00
200 mm	350 mm	370 x 590 x 690 mm	590 mm	690 mm	370 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	26 l	-30 °C	200 V	18 l	4.687 387	200 ... 230 V, 50/60 Hz	R290	±0,01 °C	-30 ... 200 °C	MS-449F	18 ... 26 l	42 kg	280 mm	Yes	Yes	1.00
200 mm	150 mm	330 x 470 x 740 mm	470 mm	740 mm	330 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	10 l	-35 °C	200 V	8 l	4.678 306	200 ... 230 V, 50/60 Hz	R449A	±0,01 °C	-35 ... 200 °C	MS-601F	8 ... 10 l	41.5 kg	220 mm	Yes	Yes	1.00
150 mm	150 mm	230 x 400 x 650 mm	400 mm	650 mm	230 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	4 l	-30 °C	200 V	3 l	9.858 405	200 ... 230 V, 50/60 Hz	R449A	±0,01 °C	-30 ... 200 °C	MS-310F	3 ... 4 l	29 kg	130 mm	Yes	Yes	1.00
150 mm	150 mm	230 x 400 x 650 mm	400 mm	650 mm	230 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	4 l	-30 °C	200 V	3 l	4.685 647	200 ... 230 V, 50/60 Hz	R449A	±0,01 °C	-30 ... 200 °C	MS-450F	3 ... 4 l	29 kg	130 mm	Yes	Yes	1.00
150 mm	130 mm	330 x 470 x 700 mm	470 mm	700 mm	330 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	7.5 l	-50 °C	200 V	5 l	4.692 245	200 ... 230 V, 50/60 Hz	R1270	±0,01 °C	-50 ... 200 °C	MS-1200F	5 ... 7.5 l	44 kg	180 mm	Yes	Yes	1.00
150 mm	150 mm	230 x 400 x 650 mm	400 mm	650 mm	230 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	4 l	-30 °C	200 V	3 l	9.858 406	200 ... 230 V, 50/60 Hz	R290	±0,01 °C	-30 ... 200 °C	MS-310F	3 ... 4 l	29 kg	130 mm	Yes	Yes	1.00
200 mm	130 mm	400 x 500 x 890 mm	500 mm	890 mm	400 mm	3 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	11 l	-50 °C	200 V	6.5 l	4.693 951	200 ... 230 V, 50/60 Hz	R1270	±0,01 °C	-50 ... 200 °C	MX-2500F	6.5 ... 11 l	61 kg	180 mm	Yes	Yes	1.00
150 mm	130 mm	330 x 470 x 700 mm	470 mm	700 mm	330 mm	2 kW	IP 20	Stainless steel	0.4 bar	200 °C	230 V	7.5 l	-50 °C	200 V	5 l	4.693 949	200 ... 230 V, 50/60 Hz	R1270	±0,01 °C	-50 ... 200 °C	MS-1200FW	5 ... 7.5 l	44 kg	180 mm	Yes	Yes	1.00
