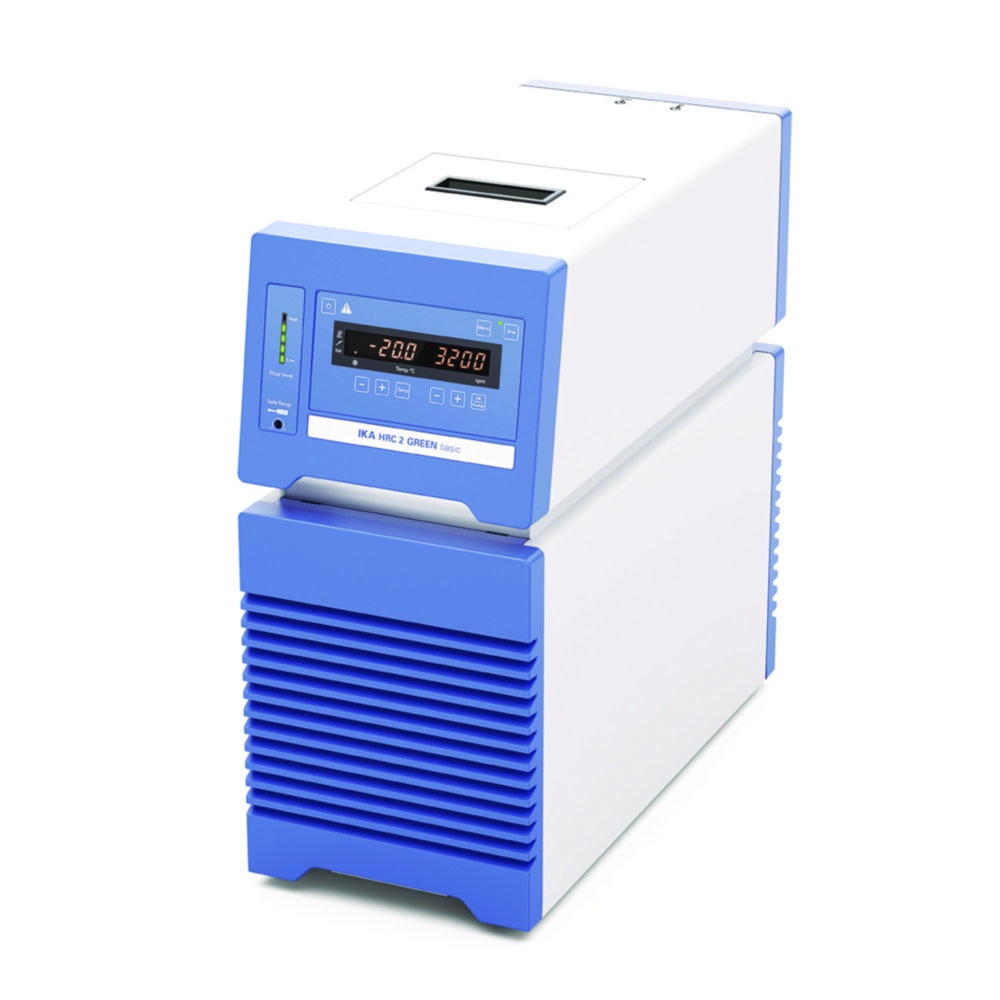

Refrigerated/heated circulator HRC 2 GREEN basic
The compact refrigerated/heated circulator impresses with an operating temperature range of -30 to 100 °C and a powerful, continuously adjustable pressure and suction pump. The demand- and speed-controlled compressor, which is operated with natural refrigerant, achieves high energy efficiency. The insulation of the bath reservoir enables fast heat-up times and reduces heat input at low temperatures.
- Demand-controlled cooling unit
- Natural refrigerant R290
- Speed-controlled PEEK pump
- Digital level indicator
- Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
- Use of up to 2.5 l of thermofluid without refilling
- Easy-to-clean stainless steel mesh air filter
- Adjustable safety circuit
- RS 232 and USB interfaces
- Safety classification III (FL) in accordance with DIN 12876
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Plug type | Power supply | Refrigerant | Temp. Stability | Temperature | Type | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 115 V | 4 l | -30 °C | 1.4 l | 4.714 312 | US | 115 V, 50/60 Hz | R290 | ±0,1 K | -30 ... 100 °C | HRC 2 GREEN basic | 1.4 ... 4 l | 26 kg | 1.00 | |||
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4 l | -30 °C | 1.4 l | 4.714 302 | EU | 230 V, 50...60 Hz | R290 | ±0,1 K | -30 ... 100 °C | HRC 2 GREEN basic | 1.4 ... 4 l | 26 kg | 1.00 | |||
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4 l | -30 °C | 1.4 l | 4.714 321 | UK | 230 V, 50...60 Hz | R290 | ±0,1 K | -30 ... 100 °C | HRC 2 GREEN basic | 1.4 ... 4 l | 26 kg | 1.00 | |||
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4 l | -30 °C | 1.4 l | 4.714 330 | CH | 230 V, 50...60 Hz | R290 | ±0,1 K | -30 ... 100 °C | HRC 2 GREEN basic | 1.4 ... 4 l | 26 kg | 1.00 |
