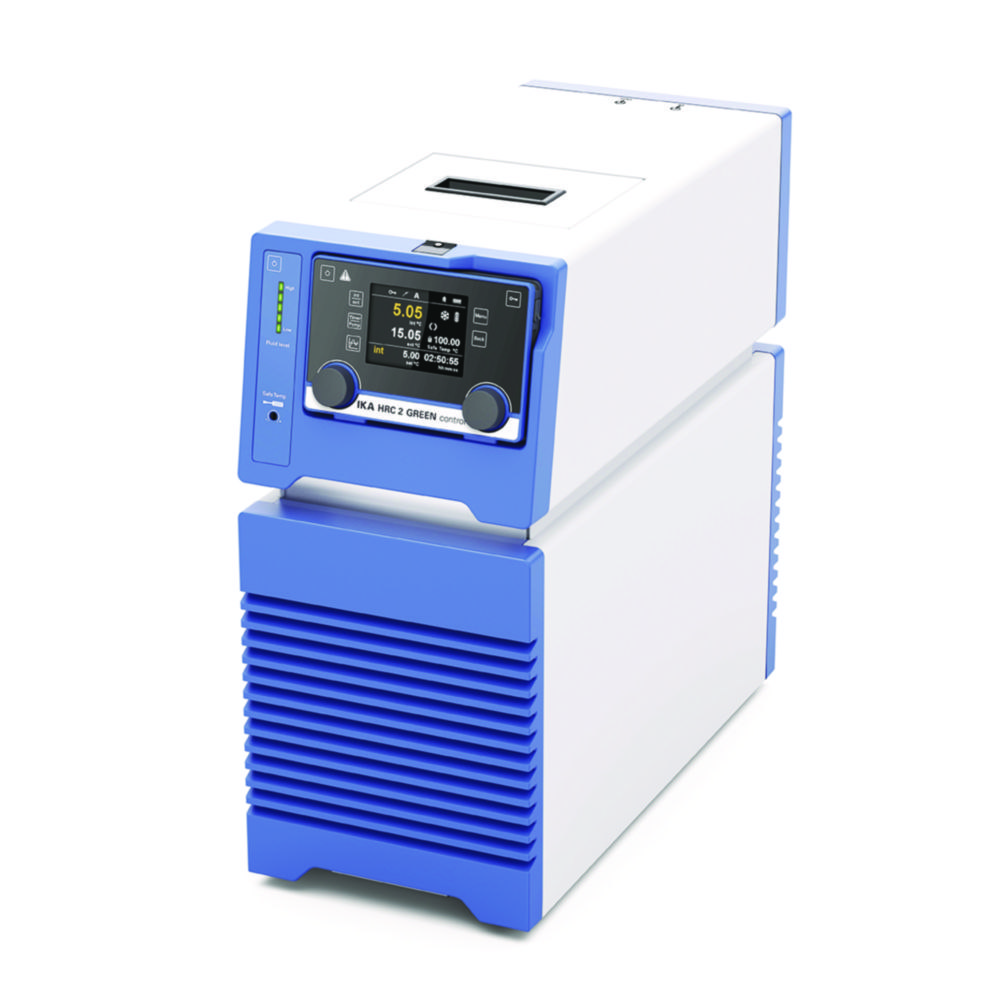

Refrigerated/heated circulator HRC 2 GREEN control
- With wireless controller (WiCo)
- LEMO socket for connecting an external PT 100 temperature sensor
- 10 freely programmable temperature ramps with 10 steps each
- Timer/counter function
- Degassing function
- Connection for solenoid valves (Multi IO)
- Alarm output (Multi IO)
- Standby contact input (Multi IO)
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Plug type | Power supply | Programmable | Refrigerant | Temp. Stability | Temperature | Type | Volume bath | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 115 V | 4 l | -30 °C | 1.4 l | 4.714 313 | US | 115 V, 50/60 Hz | Yes | R290 | ±0,1 K (-10 °C) | -30 ... 100 °C | HRC 2 GREEN control | 1.4 ... 4 l | 26.5 kg | Yes | 1.00 | |||
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4 l | -30 °C | 1.4 l | 4.714 322 | UK | 230 V, 50...60 Hz | Yes | R290 | ±0,1 K (-10 °C) | -30 ... 100 °C | HRC 2 GREEN control | 1.4 ... 4 l | 26.5 kg | Yes | 1.00 | |||
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4 l | -30 °C | 1.4 l | 4.714 331 | CH | 230 V, 50...60 Hz | Yes | R290 | ±0,1 K (-10 °C) | -30 ... 100 °C | HRC 2 GREEN control | 1.4 ... 4 l | 26.5 kg | Yes | 1.00 | |||
| 220 x 525 x 480 mm | 525 mm | 480 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4 l | -30 °C | 1.4 l | 4.714 303 | EU | 230 V, 50...60 Hz | Yes | R290 | ±0,1 K (-10 °C) | -30 ... 100 °C | HRC 2 GREEN control | 1.4 ... 4 l | 26.5 kg | Yes | 1.00 |
