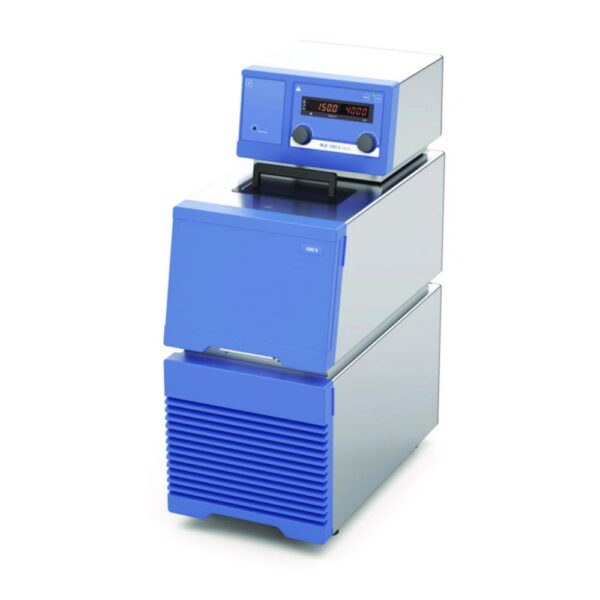

Refrigerated / heated circulatores CBC 5 basic
Powerful circulators with strong heating and cooling power for operating temperatures from -25 °C to 200 °C. With speed-controlled pressure and suction pump, suitable for external applications. Very good thermal insulation, therefore particularly fast heating-up times and low heat input at low temperatures. All parameters can be read, monitored and documented via software.
- Connection for external Pt100 temperature sensor and external solenoid valves via Multi I/O connection
- Visual and audible warning functions
- USB/RS 232 interface
- Safety drain valve
- Adjustable safety circuit
- Calibration option
- With built-in LED display for controlling and monitoring the device parameters
Toote variatsioonid
| Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | Width opening | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82 mm | 275 x 490 x 690 mm | 490 mm | 690 mm | 275 mm | 2500 W | IP 21 | 0.45 bar | 200 °C | 230 V | 7 l | 25 °C | 5 l | 6.289 335 | 230 V, 50...60 Hz | 0,02 K | 25 ... 200 °C | CBC 5 basic | LED | 5 ... 7 l | 45 kg | 172 mm | 1.00 |
