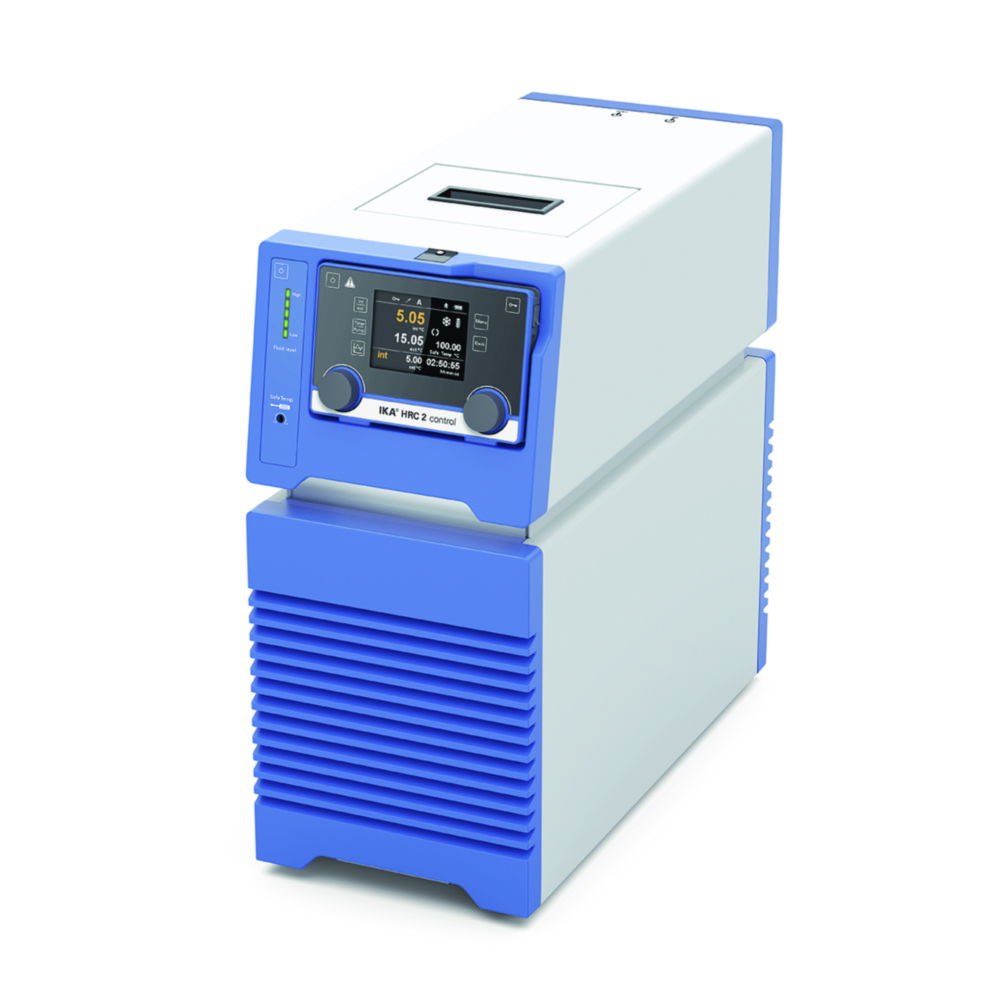

Refrigerated / heated circulators HRC 2 control
The compact refrigerated and heated circulators are renowned for their high energy efficiency and on-demand and speed-controlled compressor, which reduces noise and operating costs. The high-quality isolation of the 4 l bath allows fast heating and reduces heat input when cooling. Using the external temperature control circuit, it is possible to have up to 2.5 l thermofluid without a refill. The integrated hopper and drain valve ensure safe and clean handling of the thermofluid. The HRC 2 control in combination with an external temperature sensor is perfectly suitable to precisely temper external closed or open applications.
- Speed-controlled refrigeration system
- Speed-controlled pump (PEEK)
- Digital level indicator
- Interfaces: RS 232 and USB
- Remote control via Wireless Controller (WiCo)
- Simplified and automated processes through 10 freely programmable temperature ramps with 10 steps each
- Timer/Counter
- Degassing function
- Adjustable temperature safety circuit
- Connection of magnetic valves possible (Multi IO)
- Alarm contact (Multi IO)
- Connector for standby contact input (Multi IO)
- Connection for external PT100 temperature sensor
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | PK | Programmable | With timer | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220 x 525 x 475 mm | 525 mm | 475 mm | 220 mm | 1500 W | IP 21 | 0.25 bar | 100 °C | 230 V | 4.0 l | -30 °C | 1.4 l | 4.672 712 | 230 V, 50...60 Hz | 0,05 K | -30 ... 100 °C | HRC 2 control | LED | 1.4 ... 4.0 l | 33.3 kg | 1.00 | Yes | Yes |
