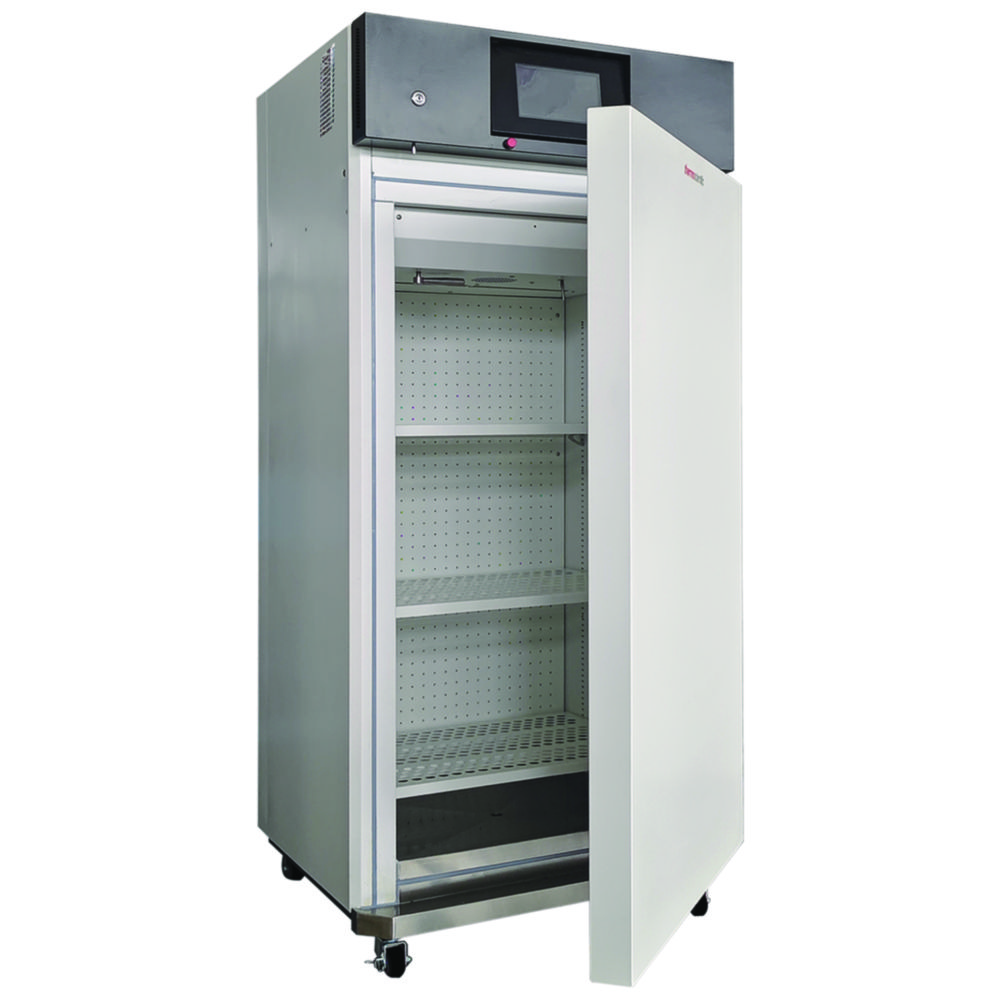

Refrigerated incubator TFS RI
The cooling incubator utilises a robust compressor cooling system and environmentally friendly, natural refrigerant R290 to ensure the precise low temperature conditions necessary for growth, storage and preservation of samples.
- 7-inch touchscreen for data export, alarm history, operating status and real-time temperature curve
- USB data export and RS-485 for direct PC connection
- Temperature sensor open/short cut-off alarm, door open alarm, standby or auto-restart after power failure
- High temperature cut-off and low temperature alarm
- Programming and storage of up to 10 programmes with 99 segments each on the user interface
- Three level access control to avoid non-authorised operation
Toote variatsioonid
| Cooling system | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Power supply | Temp. Stability | Temperature | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling compressor | 628 mm | 940 x 820 x 1,990 mm | 820 mm | 1990 mm | 940 mm | 1350 mm | 790 x 628 x 1,350 mm | 790 mm | Stainless steel | 9 | 60 °C | 230 V | 4 °C | 670 l | 4.713 161 | EU | 230 V, 50 Hz | ±0,2 °C (37 °C) | 4 ... 60 °C | TFS RI 720 | 1.00 | ||
| Cooling compressor | 450 mm | 700 x 640 x 1,215 mm | 640 mm | 1215 mm | 700 mm | 615 mm | 550 x 450 x 615 mm | 550 mm | Stainless steel | 5 | 60 °C | 230 V | 4 °C | 150 l | 4.713 159 | EU | 230 V, 50 Hz | ±0,1 °C (37 °C) | 4 ... 60 °C | TFS RI 150 | 1.00 | ||
| Cooling compressor | 450 mm | 700 x 640 x 1,615 mm | 640 mm | 1615 mm | 700 mm | 1015 mm | 550 x 450 x 1015 mm | 550 mm | Stainless steel | 7 | 60 °C | 230 V | 4 °C | 250 l | 4.713 160 | EU | 230 V, 50 Hz | ±0,1 °C (37 °C) | 4 ... 60 °C | TFS RI 250 | 1.00 | ||
| Cooling compressor | 628 mm | 790 x 820 x 1,690 mm | 820 mm | 1690 mm | 790 mm | 1050 mm | 640 x 628 x 1,050 mm | 640 mm | Stainless steel | 7 | 60 °C | 230 V | 4 °C | 420 l | 6.328 255 | EU | 230 V, 50 Hz | ±0,2 °C (37 °C) | 4 ... 60 °C | TFS RI 420 | 1.00 |
