RESPIROMETRIC Sensor System 6 BOD

Measuring systems for the reliable determination of 90 to 4000 ppm BOD, BOD5 and BOD7 for the control of water and wastewater quality.

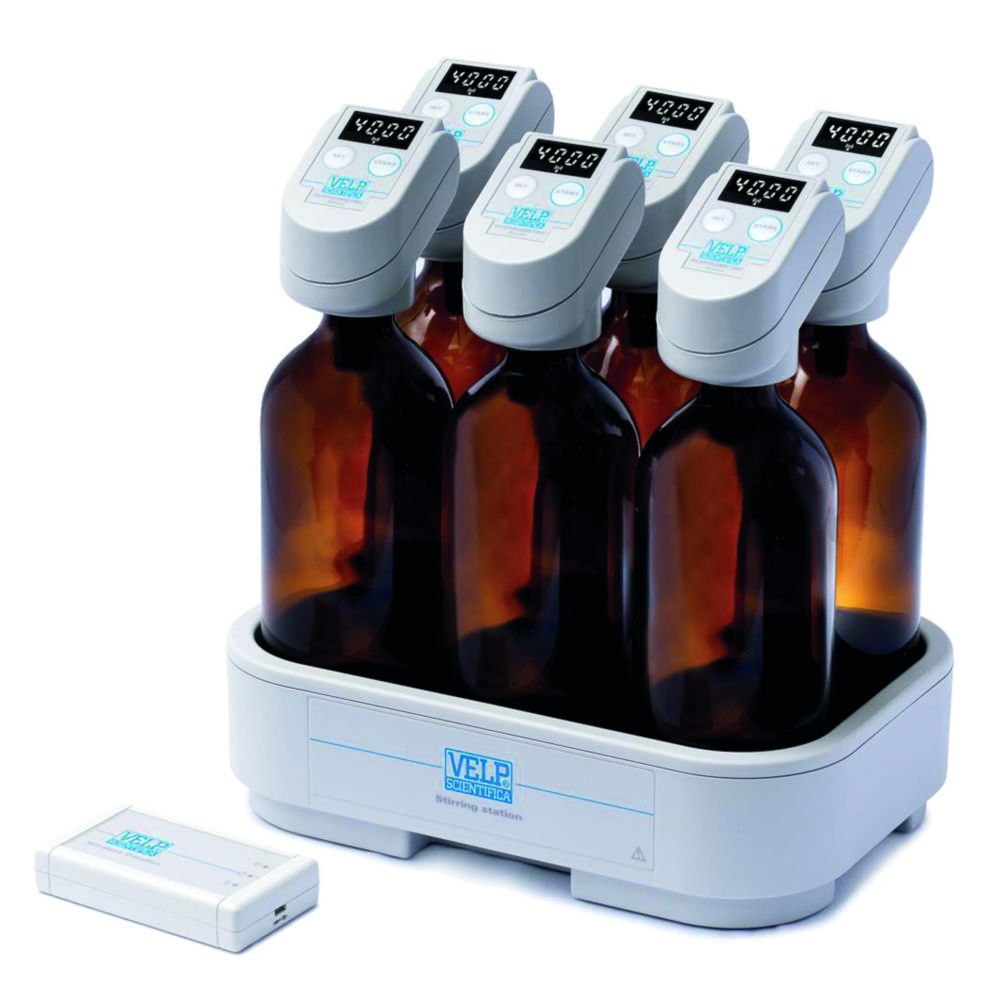

Complete with sensor heads and multi-position magnetic stirring station for performing aerobic and anaerobic respiration tests. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.

• 4-digit LED display
• 2-button user interface
• Results available in BOD (mg/l) and pressure (mbar)
• Automatic conversion of pressure results into BOD
• Wireless transmission of data to the PC (Wlan)

Scope of supply: 6-position magnetic stirring station, 6 x sensor heads incl. batteries, 6 x 500 ml amber bottles, 6 x KOH containers, 6 x magnetic stirring bars

• BOD range: 90 … 4000 ppm
• Pressure range: 500 … 2000 mbar
• Measuring period: 5 … 30 days
• Dimensions sensor (W x D x H): 50 x 70 x 70 mm
• Dimensions stirring station (W x D x H): 270 x 185 x 300 mm
• Weight sensor: 80 g
• Weight stirring station: 1 kg
• Power supply sensor: 2 x CR 2430
• Power supply stirring station: 230 V, 50 … 60 Hz
• IP code: IP54
