RESPIROMETRIC Sensor System 6 Maxi

Measuring system for the reliable determination of the anaerobic respiration of the biochemical methane potential (BMP) of biomass. The BMP analysis examines biogas production from organic waste for waste and wastewater treatment, as well as renewable energy production.

Complete with sensor heads and multi-position magnetic stirring station. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.

• 4-digit LED display
• 2-button user interface
• Results available in pressure (mbar) and BMP (NmLCH4/gSV)
• Automatic conversion of pressure results into BMP
• Wireless transmission of data to the PC (Wlan)
• Also suitable for other anaerobic studies

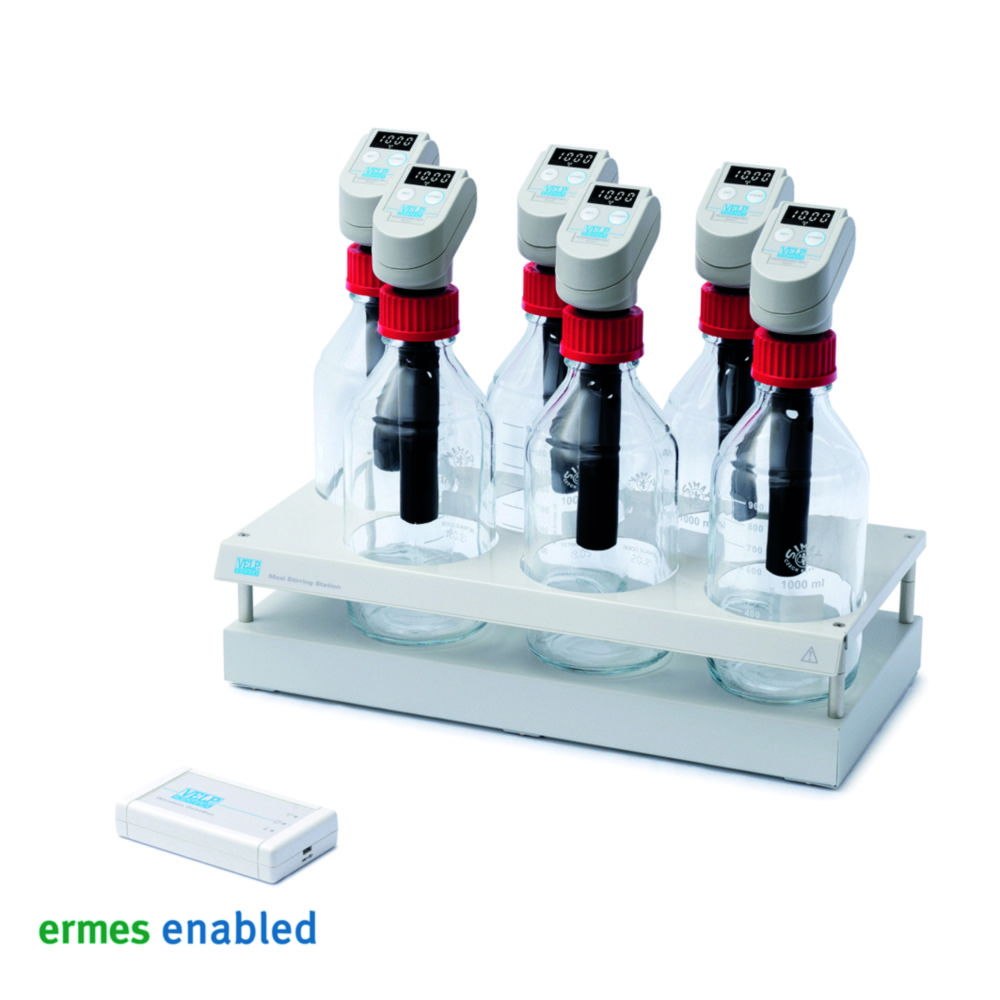

Scope of supply: 6-position magnetic stirring station Maxi, 6 x sensor heads incl. batteries, 6 x 1000 ml bottles, 6 x KOH containers, 6 x magnetic stirring bars

• Pressure range: 500 … 2000 mbar
• Measuring period: 1 … 180 days (pressure) / 10 … 60 days (BMP)
• Dimensions sensor (W x D x H): 50 x 70 x 70 mm
• Dimensions stirring station (W x D x H): 432 x 165 x 300 mm
• Weight sensor: 80 g
• Weight stirring station: 3 kg
• Power supply sensor: 2 x CR2430
• Power supply stirring station: 230 V, 50 … 60 Hz
• IP code: IP54
