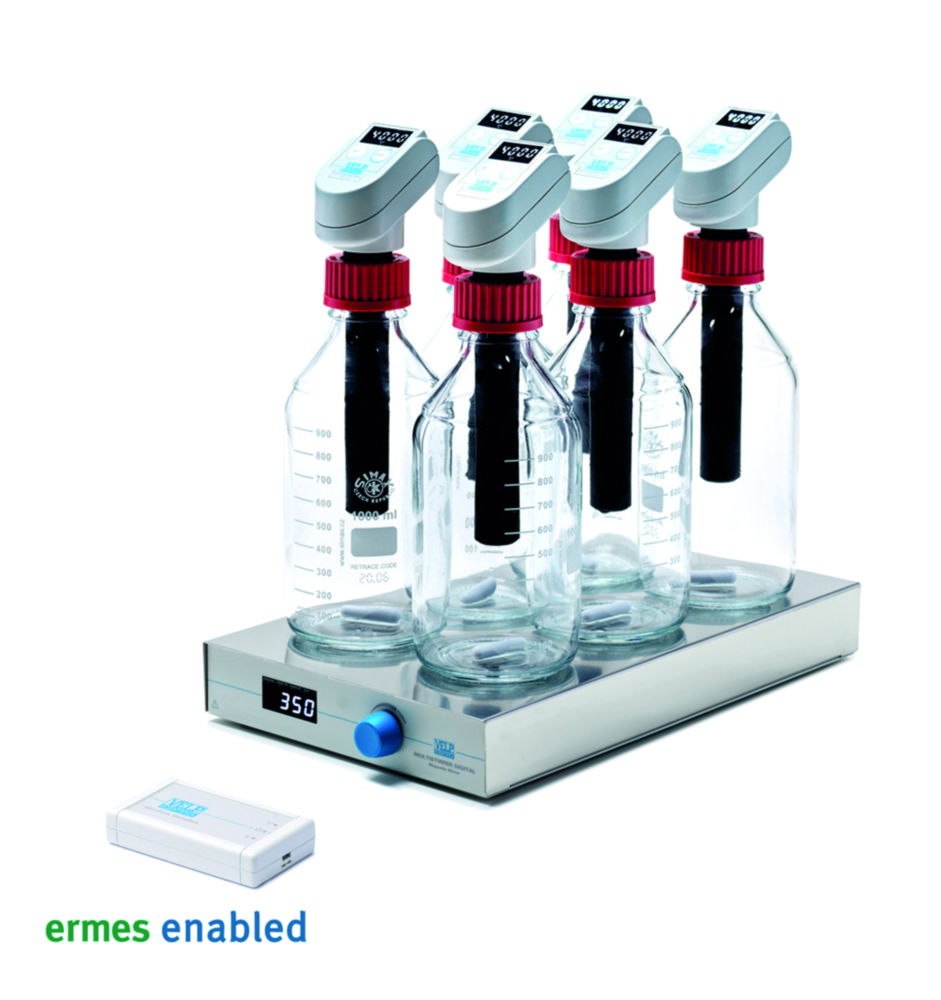

RESPIROMETRIC Sensor System 6, plastic biodegradability

Measuring systems for the reliable determination of the degree of biodegradability of plastic materials in an aqueous medium.

Complete with sensor heads and multi-position magnetic stirrer for performing aerobic respiration tests. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.

• 4-digit LED display
• 2-button user interface
• Results available in pressure (mbar)
• Magnetic stirrer with timer and electronic speed control
• Wireless transmission of data to the PC (Wlan)

Scope of supply: 6-position magnetic stirrer MULTISTIRRER Digital, 6 x sensor heads incl. batteries, 6 x 1000 ml bottles, 6 x kits for plastic biodegradability analysis, 6 x magnetic stirring bars

• Pressure range: 500 … 2000 mbar
• Measuring period: 1 … 180 days
• Speed range magnetic stirrer: 80 … 1500 rpm
• Stirring position distance magentic stirrer: 100 mm
• Dimensions sensor (W x D x H): 50 x 70 x 70 mm
• Dimensions magnetic stirrer (W x D x H): 230 x 370 x 51.5 mm
• Weight sensor: 80 g
• Weight magnetic stirrer: 1.75 kg
• Power supply sensor: 2 x CR2430
• Power supply magnetic stirrer: 100 … 240 V, 50 … 60 Hz
• IP code: IP54
