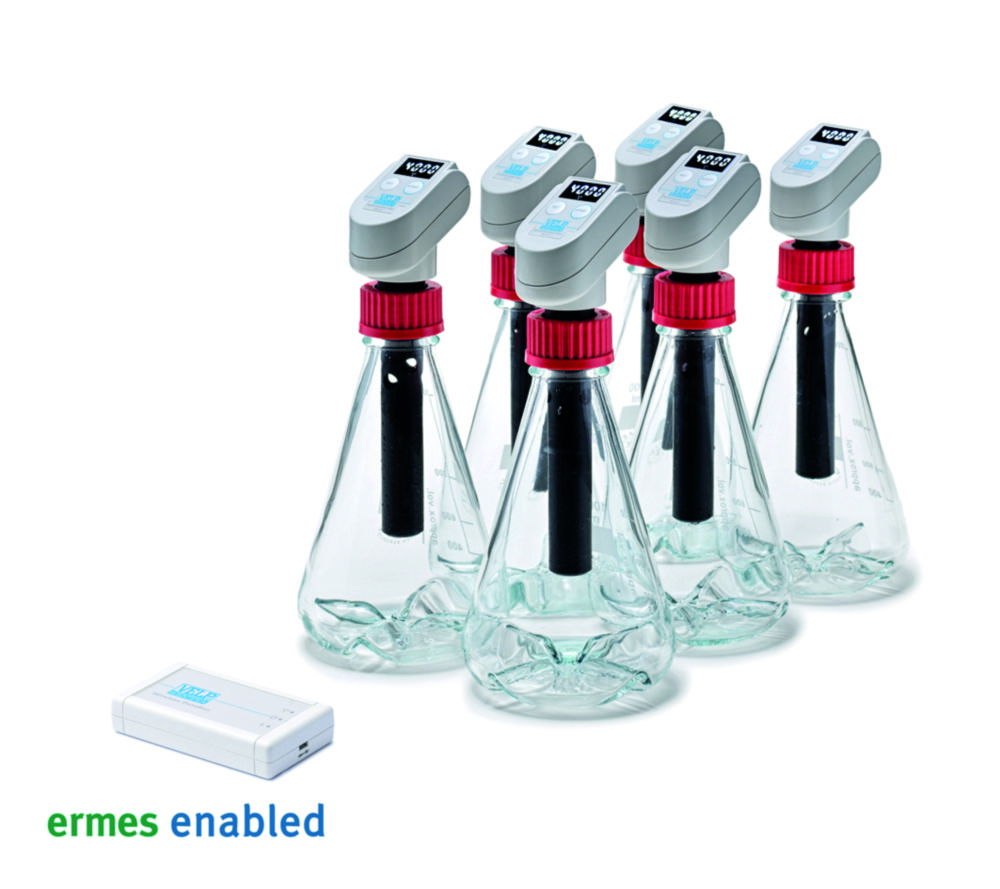

RESPIROMETRIC Sensor System 6, soil analysis

Measuring systems for the soil analysis to support aerobic degradation tests on soil and compost. The analysis provides microbial soil respiration results from the mineralisation of organic substances.

Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.

• 4-digit LED display
• 2-button user interface
• Results available in pressure (mbar)
• Measurements directly in a 1000 ml Erlenmeyer flask
• Wireless transmission of data to the PC (Wlan)

Scope of supply: 6 x sensor heads incl. batteries, 6 x 1000 ml Erlenmeyer flask, 6 x kits for soil analysis

• Pressure range: 500 … 2000 mbar
• Measuring period: 1 … 180 days
• Dimensions sensor (W x D x H): 50 x 70 x 70 mm
• Weight sensor: 80 g
• Power supply sensor: 2 x CR2430
• IP code: IP54
