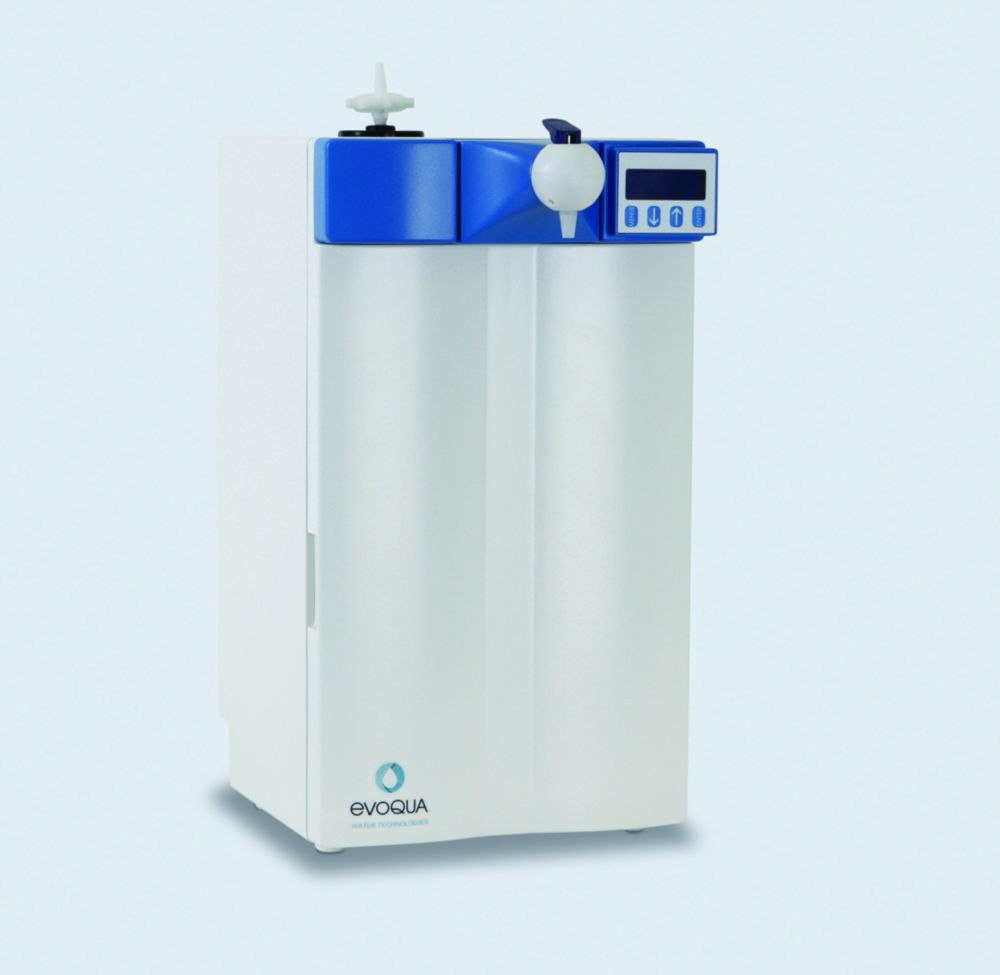

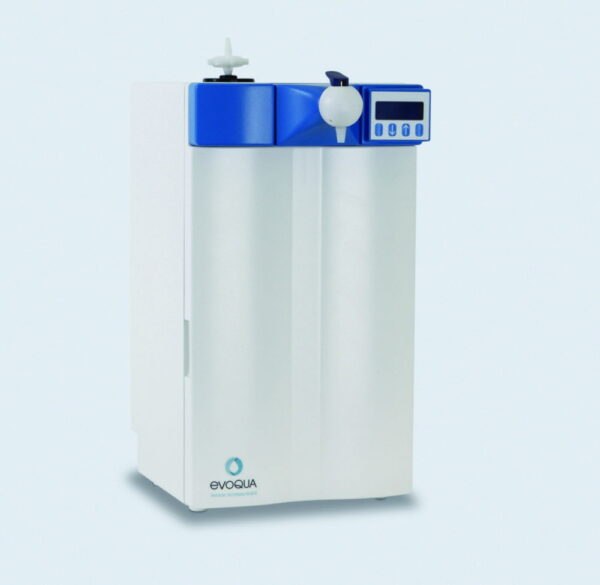

Reverse osmosis system, LaboStar™ 10 RO DI

The LaboStar™ RO DI series produce high quality water with very low energy consumption. The use of “low energy” membranes enable a very efficient and economical operation. All LaboStar™ RO DI systems are equipped with a built-in 7 l storage tank. Pure water is collected in the tank and is recirculated by an integrated pump. LaboStar™ RO DI is equipped with a final DI cartridge. This cartridge polishes the RO water to Type II quality < 0.1 µS/cm. The unit offers two extraction ports: water can be extracted under pressure from the Point-of-use dispenser or from the outlet on the back of the unit. Optionally, a charged 0.2 µm sterile filter at the dispenser can be used to remove bacteria and endotoxins. An uncharged 0.2 µm sterile filter is also available. The 7 l storage tank capacity can be increased by an additional 30 or 60l tank. Pure water is collected in the tank and is recirculated by an integrated pump. LaboStar™ RO DI systems are delivered with the first set of all modules and filters required for immediate operation.

• Pure water circulation right into the dispenser head
• Easy to dispense water using the practical dispenser
• 0.2 µm sterile filter with or without endotoxinretention as availableoption
• Whisper operation mode
• Rapid and simple disinfection
• Conductivity monitoring of RO and DI water
• Easy module exchange via quick-release connections
• Small and compact

• Specifications
• Permeate production rate at 15°C: 10 l/h
• Permeat conductivity:
  <0.1
• Bacteria: 1 KbE/ml (with a 0.2 µm sterile filter)
• Particle >0.2: < 1 per ml
• Feed water conductivity: < 2000 µS/cm
• Silt densitiy index SDI: < 3
• Dimensions (W x D x H): 290 x 400 x 535 mm
• Power supply: 100-240 V, 50/60 Hz
