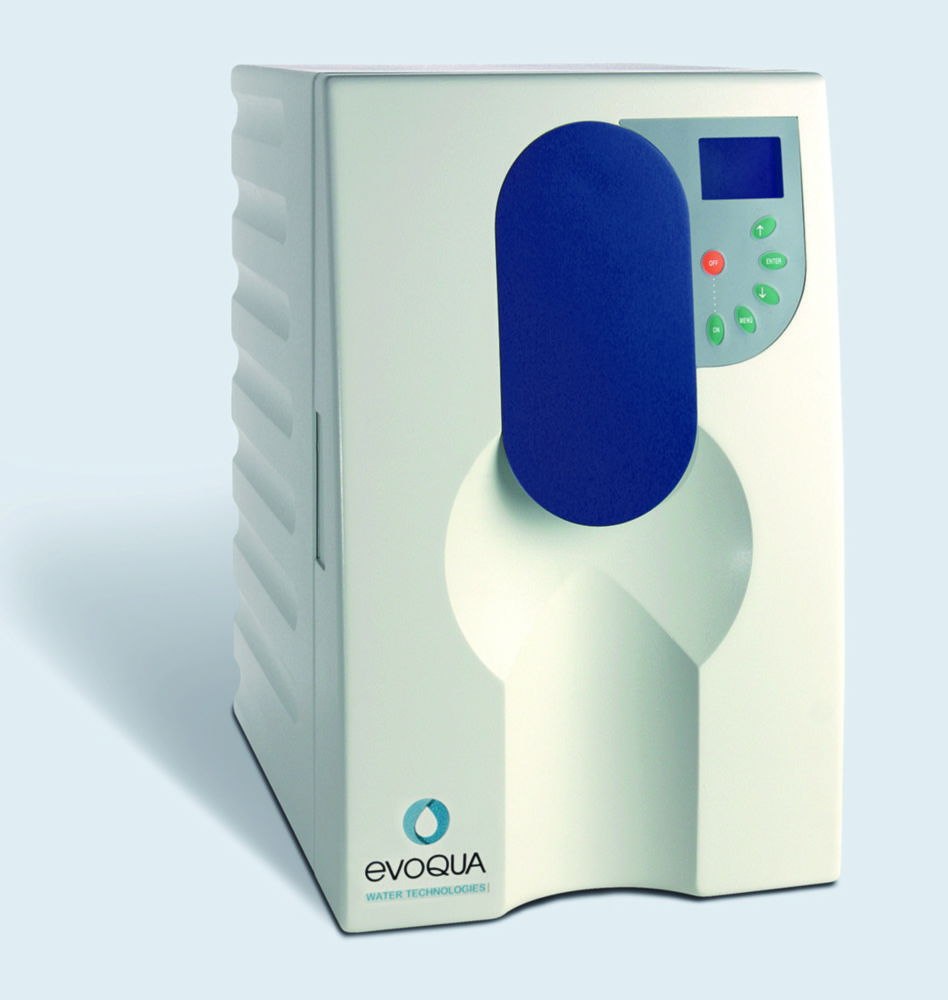

Reverse osmosis systems, Ultra Clear™ RO EDI

The well-proven Ultra Clear™ RO range has been enhanced to peak water quality level in the plus series by adding electronic deionisation cells: accessory deionisers for removing inorganic materials from the output are therefore no longer required.
Technical parameters:

• Resistance up to 17 megohm (0.07µS/cm)
• TOC < 5 to 20ppb at RO cell output
• Typical pure water quality < 0.07µS/cm

In all Ultra Clear™ RO systems the quality of the feed and output water will be shown on the display.

Features:

• pure water treatment for simple analysis, laboratory rinsing machines, autoclaves, up to ultrapure water systems
• germ / pyrogen retention rate >99%
• complete, connection-ready system; fittings allow supply tanks to be expanded if required (e.g. Ultra Clear™ RO supply tanks with 30, 60 and 80 litre capacities, larger tanks are available on request)
• menu-driven controller, RS232 interface
• Entrance- and Product water quality will be shown on the display.

• Specifications
• Rating: 200 / 300W
• Dimensions (W x D x H): 340 x 420 x 520mm
• Colloidal index (SDI): < 3
• Supply water pressure: 2 to 6 bar
  (0.1 to 5 bar Ultra Clear™ RO EDI 10)
• Input conductivity: < 1400 µS/cm
