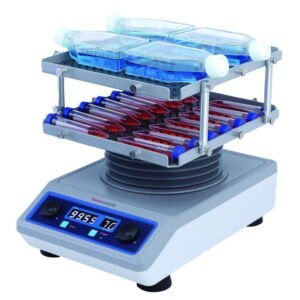

Rocking shakers Duomax 1030

The Rocking shaker Duomax is suitable for the modular Incubator 1000 and is recommended for applications which require variable temperatures. With 2-dimensional tilting movement, suitable for petri dishes, culture bottles, erlenmeyer flasks and all standard vessels.

• An overtemperature sensor preventatively shuts off the unit in a dangerous heat-up situation, particularly valuable for you in case of continuous operation
• Insulated drive system prevents any heat-up coming from the motor and consequently thermal damage to your sample
• Designed with a low center of gravity which prevents gliding at high speed, even on a damp surface
• Set and continuously adjust the variable speed on the analog control knob, suitable for all standard vessels
• An analog process timer (max. 120 min) allows for unattended operation. When the set time has elapsed, an acoustic alarm will sound and the operation stops

• Specifications
• Type of movement: rocking
• Tumbling angle: 5°
• Speed range: 2 … 50 rpm
• Max. Load: 5 kg
• Timer: 1 … 120 min
• Power consumption: 115 W
• Permissible ambient temperature: 5 … 31 °C
• Permissible relative moisture: 80 %
• Platform dimensions (W x D): 290 x 258 mm
• Overall dimensions (W x D x H): 320 x 375 x 185 mm
• Weight: 8 kg
• Power supply: 230 V, 50/60 Hz
• Protection class acc. to DIN EN 60529: IP 40
