Roller Apparatus WHEATON® Standard

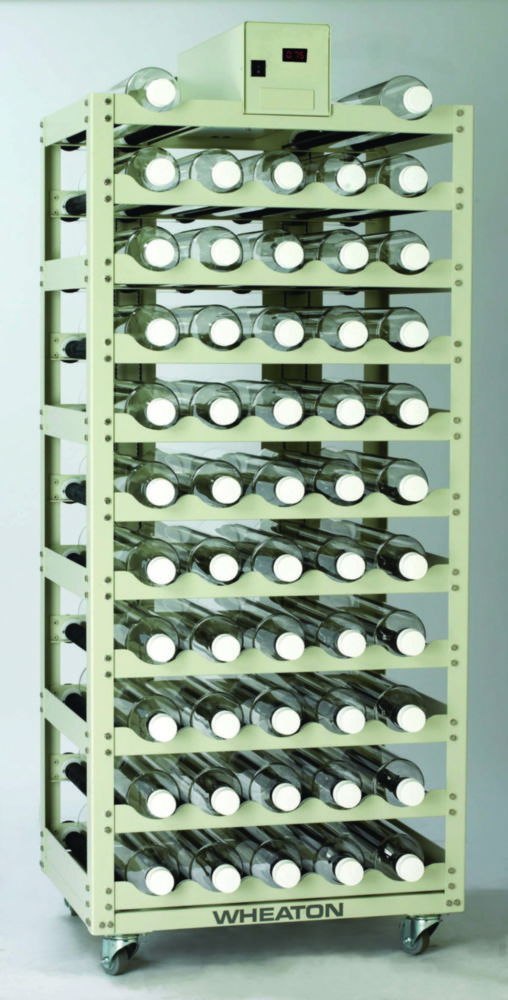

WHEATON® Roller Bottle Culture Apparatuses are used in laboratory, pilot plant and production cell culture installations and also meet the expectations of the vaccine and biologic industry. Optional with Belt Break Alarm and battery backup system. The Belt Break Alarm employs two magnetic sensors to ensure that all main pulleys are rotating on the unit. The unit automatically and seamlessly switches over to battery power to provide rotation for 8 – 18 hours.
- Smooth ramping digitally controlled rotation accurate to 0.01 rpm
- Bright digital display for easy operation
- Multiple decking and capacity configurations available for process flexibility
Toote variatsioonid
| Depth | Description | Dimensions (WxDxH) | Height | Catalog number | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 630 mm | Modular system, bottom drive, 7 removable decks, 5 positions per deck | 790 x 630 x 1450 mm | 1450 mm | 4.662 190 | 790 mm | 1.00 | ||
| - | Installation kit for WHEATON® standard roller with bottom drive,contains rotation alarm and battery backup | - | - | 4.662 198 | - | 1.00 | ||
| - | Installation kit for WHEATON® standard roller with top drive,contains rotation alarm and battery backup | - | - | 4.662 197 | - | 1.00 | ||
| 630 mm | Production system, top drive, 11 fixed decks, 8 positions per deck, incl rotation alarm and battery backup | 1,200 x 630 x 1900 mm | 1900 mm | 4.682 306 | 1200 mm | 1.00 | ||
| 630 mm | Modular system, bottom drive, 4 removable decks, 5 positions per deck | 760 x 630 x 920 mm | 920 mm | 4.682 300 | 760 mm | 1.00 | ||
| 630 mm | Modular system, bottom drive, 6 removable decks, 5 positions per deck | 760 x 630 x 128 mm | 128 mm | 4.682 302 | 760 mm | 1.00 | ||
| 630 mm | Modular system, bottom drive, 5 removable decks, 5 positions per deck | 760 x 630 x 110 mm | 110 mm | 4.682 301 | 760 mm | 1.00 | ||
| 630 mm | Production system, top drive, 11 fixed decks, 5 positions per deck, incl rotation alarm and battery backup | 790 x 630 x 1900 mm | 1900 mm | 4.682 304 | 790 mm | 1.00 | ||
| 630 mm | Modular system, bottom drive, 3 removable decks, 5 positions per deck | 790 x 630 x 740 mm | 740 mm | 4.682 298 | 790 mm | 1.00 | ||
| 630 mm | Modular system, bottom drive, 3 removable decks, 5 positions per deck, incl rotation alarm and battery backup | 790 x 630 x 740 mm | 740 mm | 4.682 299 | 790 mm | 1.00 | ||
| 630 mm | Modular system, bottom drive, 1 removable deck with 5 positions | 790 x 630 x 340 mm | 340 mm | 4.682 297 | 790 mm | 1.00 | ||
| 630 mm | Production system, top drive, 11 fixed decks, 8 positions per deck | 1,200 x 630 x 1900 mm | 1900 mm | 4.682 305 | 1200 mm | 1.00 | ||
| 630 mm | Production system, bottom drive, 11 fixed decks, 5 positions per deck | 790 x 630 x 1900 mm | 1900 mm | 4.682 303 | 790 mm | 1.00 |
