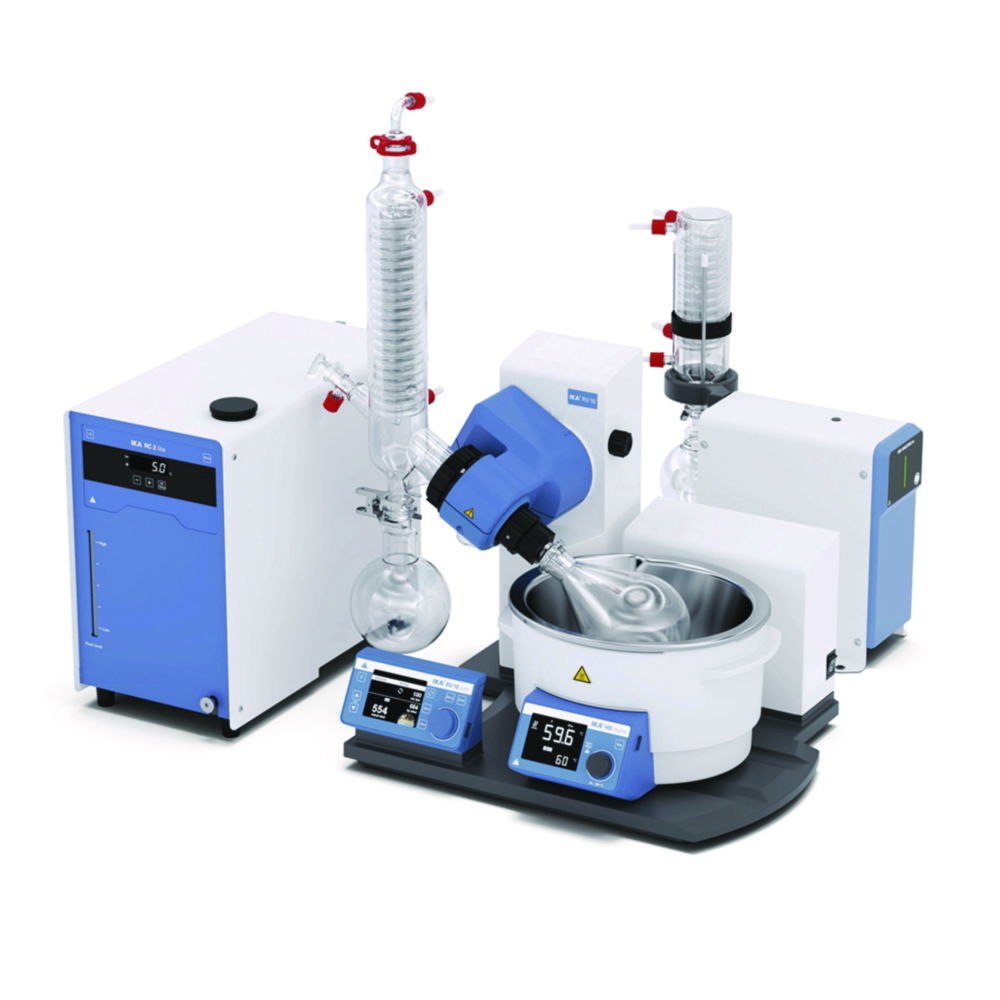

Rotary evaporator package RV 10 auto Starter Solution
The Starter Solution is the complete package for the rotary evaporator setup. The RV 10 auto offers features such as smooth start, left-right interval and timer function. It impresses with its intuitive operation via a TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and safety standards. The motorised lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. The USB or RS232 interface allows remote control using the IKA software labworldsoft® and the option of updating using the Firmware Update Tool.
Scope of supply: rotary evaporator RV 10 auto, VACSTAR lite vacuum pump, HB digital heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, hoses, cable
Toote variatsioonid
| Cooling surface | Depth | Dimensions (WxDxH) | Flow rate | Glassware | Heating capacity | Height | IP code | Lift | Lifting path | Max. speed | Max. temperature | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Power supply | Speed | Temperature | Temperature | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1500 cm² | 440 mm | 500 x 440 x 430 mm | 16.7 l/min | Without coating | 1400 W | 430 mm | IP 20 | Electrical | 140 mm | 300 1/min | 180 °C | 240 V | 5 1/min | 100 V | 4.699 404 | EU | 100 ... 240 V, 50/60 Hz | 5 ... 300 1/min | RT | RT ... 180 °C | 9 mbar | 18.6 kg | 500 mm | 1.00 |
