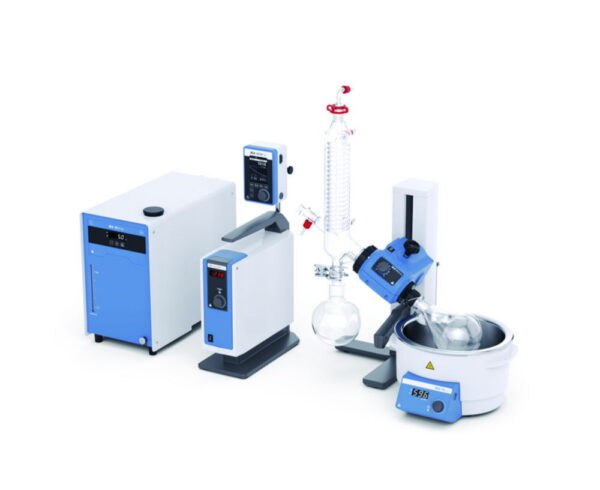

Rotary evaporator package RV 3 pro V Complete
Complete solution for a rotary evaporator setup with the ideal entry-level model including heating bath HB eco and vertical glassware.
With extremely space-saving vacuum pump VACSTAR digital, which achieves a minimum vacuum of 2 mbar.
The vacuum controller VC 10 lite is used for control. In addition to controlling the recirculating cooler RC 2 lite, it enables manual setpoint input of the vacuum as well as programme-controlled operation.
The powerful compact RC 2 lite recirculating cooler with 400 W cooling capacity and a strong pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C.
Scope of supply: Rotary evaporator, vacuum pump VACSTAR digital, vacuum controller VC 10 lite, recirculating cooler RC 2 lite, stand pole VC 10.500, hose set RV 10.5005, data cable PC 1.3
Toote variatsioonid
| Cooling surface | Depth | Dimensions (WxDxH) | Glassware | Height | IP code | Lift | Lifting path | Max. speed | Max. temperature | Max. voltage | Max. volume bath | Min. speed | Min. voltage | Catalog number | Plug type | Power supply | Speed | Temperature | Temperature | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1600 cm² | 330 mm | 440 x 330 x 530 mm | Without coating | 530 mm | IP 20 | Manual | 150 mm | 300 1/min | 99 °C | 240 V | 4 l | 20 1/min | 100 V | 4.687 532 | EU | 100 ... 240 V, 50/60 Hz | 20 ... 300 1/min | RT | RT ... 99 °C | RV 3 pro V Complete | 28.3 kg | 440 mm | 1.00 | ||
| 1600 cm² | 330 mm | 440 x 330 x 530 mm | Coated | 530 mm | IP 20 | Manual | 150 mm | 300 1/min | 99 °C | 240 V | 4 l | 20 1/min | 100 V | 4.691 521 | UK | 100 ... 240 V, 50/60 Hz | 20 ... 300 1/min | RT | RT ... 99 °C | RV 3 pro V-C Complete | 28.3 kg | 440 mm | 1.00 | ||
| 1600 cm² | 330 mm | 440 x 330 x 530 mm | Coated | 530 mm | IP 20 | Manual | 150 mm | 300 1/min | 99 °C | 240 V | 4 l | 20 1/min | 100 V | 4.691 525 | CH | 100 ... 240 V, 50/60 Hz | 20 ... 300 1/min | RT | RT ... 99 °C | RV 3 pro V-C Complete | 28.3 kg | 440 mm | 1.00 | ||
| 1600 cm² | 330 mm | 440 x 330 x 530 mm | Coated | 530 mm | IP 20 | Manual | 150 mm | 300 1/min | 99 °C | 240 V | 4 l | 20 1/min | 100 V | 4.691 517 | EU | 100 ... 240 V, 50/60 Hz | 20 ... 300 1/min | RT | RT ... 99 °C | RV 3 pro V-C Complete | 28.3 kg | 440 mm | 1.00 |
