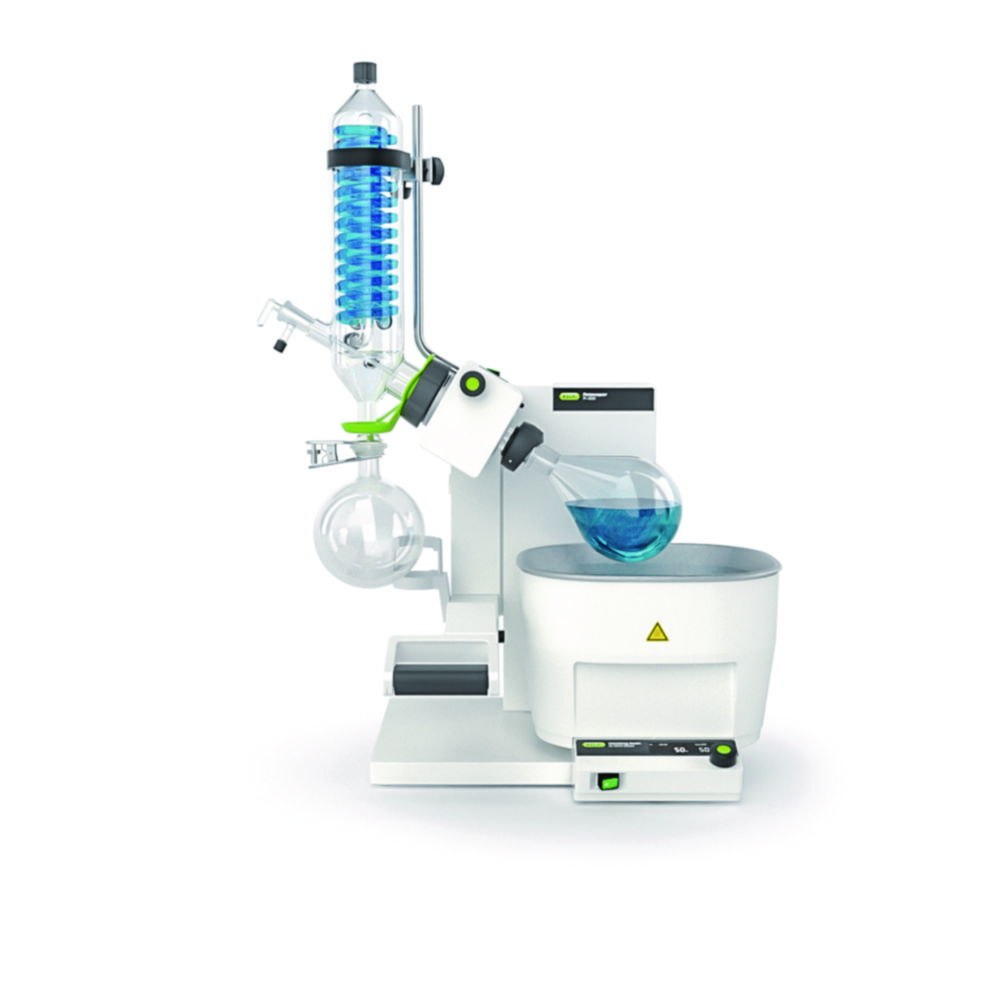

Rotary evaporator Rotavapor® R-300, with heating bath B-305 and vertical condenser
Heating bath B-305: Temperature range of up to 220 °C. Max. evaporating flask size: 5000 mL (3 kg). Cordless connection. Digital display of set and actual temperature, rotation speed, lift position. Lock of heating temperature.
Vertical condenser (V): Vertical condenser used along with a recirculating chiller or tap water.
Toote variatsioonid
Catalog number | PK | Depth | Dimensions (WxDxH) | Glassware | Height | IP code | Lift | Max. speed | Max. temperature | Max. voltage | Max. volume bath | Max. volume flasks | Min. speed | Min. voltage | Power supply | Speed | Temperature | Type | Width | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.267 891 | 1.00 | 429 mm | 607 x 429 x 947 mm | Coated | 947 mm | IP 21 | Electrical | 280 1/min | 220 °C | 240 V·AC | 5.5 l | 5000 ml | 10 1/min | 100 V·AC | 100 ... 240 V·AC, 50 ... 60 Hz | 10 ... 280 1/min | 220 °C | R-300 | 607 mm |
