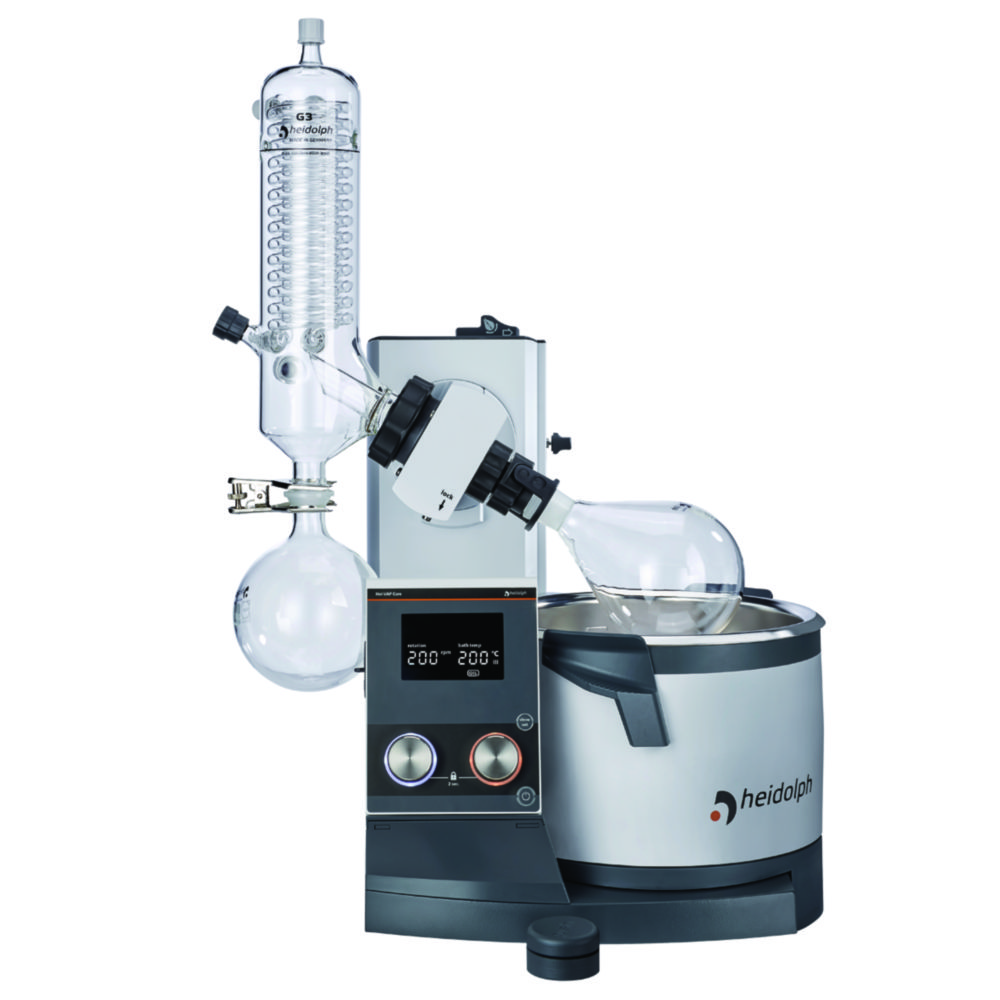

Rotary Evaporators Hei-VAP Core, with hand lift, vertical condenser
- Available as hand or motor lift
- Clear digital display for monitoring the current values and separate button to display the set values
- Two separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indication
- Activated lock feature prevents inadvertent adjustments
- Residual heat indicator when >50 °C
- Standby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift models
- Ergonomically optimized heating bath handles sit securely in your hand
- Easily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°
- Grease-free operation thanks to innovative sealing technology
- Ventilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valve
- Optional cable extension. The operating panel can be detached for use outside closed fume hoods
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.
Toote variatsioonid
| Cooling surface | Depth | Dimensions (WxDxH) | Glassware | Height | Lift | Max. speed | Max. temperature | Max. voltage | Max. volume bath | Min. speed | Min. temperature | Catalog number | Plug type | Power supply | Speed | Temperature | Type | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2200 cm² | 477 mm | 739 x 477 x 920 mm | Coated | 920 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 092 | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3B XL | 739 mm | 1.00 | ||
| 2200 cm² | 477 mm | 739 x 477 x 920 mm | Without coating | 920 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 109 | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3 XL | 739 mm | 1.00 | ||
| 1400 cm² | 477 mm | 739 x 477 x 845 mm | Coated | 845 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 133 | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3B | 739 mm | 1.00 | ||
| 1400 cm² | 477 mm | 739 x 477 x 845 mm | Without coating | 845 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 086 | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3 | 739 mm | 1.00 | ||
| 2200 cm² | 477 mm | 739 x 477 x 920 mm | Coated | 920 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 114 | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3B XL | 739 mm | 1.00 | ||
| 2200 cm² | 477 mm | 739 x 477 x 920 mm | Without coating | 920 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 087 | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3 XL | 739 mm | 1.00 | ||
| 2200 cm² | 477 mm | 739 x 477 x 920 mm | Coated | 920 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 134 | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3B XL | 739 mm | 1.00 | ||
| 1400 cm² | 477 mm | 739 x 477 x 845 mm | Coated | 845 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 091 | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3B | 739 mm | 1.00 | ||
| 1400 cm² | 477 mm | 739 x 477 x 845 mm | Coated | 845 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 113 | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3B | 739 mm | 1.00 | ||
| 2200 cm² | 477 mm | 739 x 477 x 920 mm | Without coating | 920 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 129 | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3 XL | 739 mm | 1.00 | ||
| 1400 cm² | 477 mm | 739 x 477 x 845 mm | Without coating | 845 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 128 | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3 | 739 mm | 1.00 | ||
| 1400 cm² | 477 mm | 739 x 477 x 845 mm | Without coating | 845 mm | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | RT | 4.666 108 | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | G3 | 739 mm | 1.00 |
