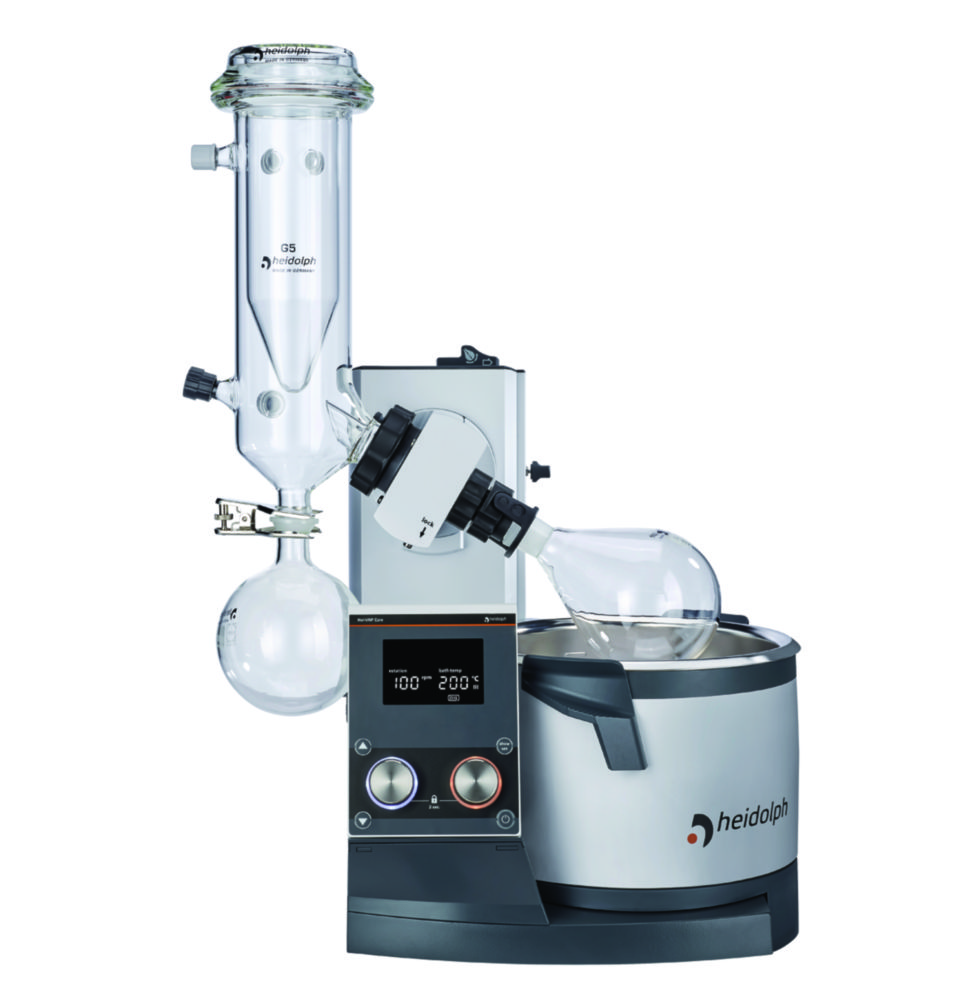

Rotary Evaporators Hei-VAP Core, with motor lift
Available as hand or motor lift
Clear digital display for monitoring the current values and separate button to display the set values
Two separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indication
Activated lock feature prevents inadvertent adjustments
Residual heat indicator when >50 °C
Standby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift models
Ergonomically optimized heating bath handles sit securely in your hand
Easily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°
Grease-free operation thanks to innovative sealing technology
Ventilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valve
Optional cable extension. The operating panel can be detached for use outside closed fume hoods
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.
Toote variatsioonid
| Description | Glassware set | Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Max. speed | Max. temperature | Max. voltage | Min. speed | Min. temperature | Plug type | Power supply | Speed | Temperature | Width | Cooling surface | Max. volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G1 Angled condenser | standard | 4.666 095 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G1B Angled condenser | coated | 4.666 100 | 1.00 | 407 mm | 739 x 407 x 845 mm | 845 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l | ||
| G6 Vertical reflux condenser | standard | 4.666 099 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3 Vertical condenser | standard | 4.666 118 | 1.00 | 407 mm | 739 x 407 x 845 mm | 845 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l | ||
| G3 XL Vertical condenser | standard | 4.666 097 | 1.00 | 407 mm | 739 x 407 x 920 mm | 920 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 2200 cm² | 4.5 l | ||
| G3B Vertical condenser | coated | 4.666 101 | 1.00 | 407 mm | 739 x 407 x 920 mm | 920 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l | ||
| G5 Cold trap | standard | 4.666 098 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G1 Angled condenser | standard | 4.666 137 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G1 Angled condenser | standard | 4.666 117 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G6 Vertical reflux condenser | standard | 4.666 121 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3B Vertical condenser | coated | 4.666 123 | 1.00 | 407 mm | 739 x 407 x 845 mm | 845 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l | ||
| G3B XL Vertical condenser | coated | 4.666 102 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 2200 cm² | 4.5 l | ||
| G5B Cold trap | coated | 4.666 125 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3B XL Vertical condenser | coated | 4.666 144 | 1.00 | 407 mm | 739 x 407 x 920 mm | 920 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 2200 cm² | 4.5 l | ||
| G6B Vertical reflux condenser | coated | 4.666 104 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G5B Cold trap | coated | 4.666 103 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G1B Angled condenser | coated | 4.666 142 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G5 Cold trap | standard | 4.666 120 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3B XL Vertical condenser | coated | 4.666 124 | 1.00 | 407 mm | 739 x 407 x 920 mm | 920 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 2200 cm² | 4.5 l | ||
| G6B Vertical reflux condenser | coated | 4.666 126 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3 XL Vertical condenser | standard | 4.666 119 | 1.00 | 407 mm | 739 x 407 x 920 mm | 920 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 2200 cm² | 4.5 l | ||
| G5 Cold trap | standard | 4.666 140 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G5B Cold trap | coated | 4.666 145 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G1B Angled condenser | coated | 4.666 122 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | UK | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3 XL Vertical condenser | standard | 4.666 139 | 1.00 | 407 mm | 739 x 407 x 920 mm | 920 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 2200 cm² | 4.5 l | ||
| G3 Vertical condenser | standard | 4.666 138 | 1.00 | 407 mm | 739 x 407 x 845 mm | 845 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l | ||
| G6 Vertical reflux condenser | standard | 4.666 141 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G6B Vertical reflux condenser | coated | 4.666 146 | 1.00 | - | - | - | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | - | 1400 cm² | 4.5 l | ||
| G3B Vertical condenser | coated | 4.666 143 | 1.00 | 407 mm | 739 x 407 x 845 mm | 845 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | CH | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l | ||
| G3 Vertical condenser | standard | 4.666 096 | 1.00 | 407 mm | 739 x 407 x 845 mm | 845 mm | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 739 mm | 1400 cm² | 4.5 l |
