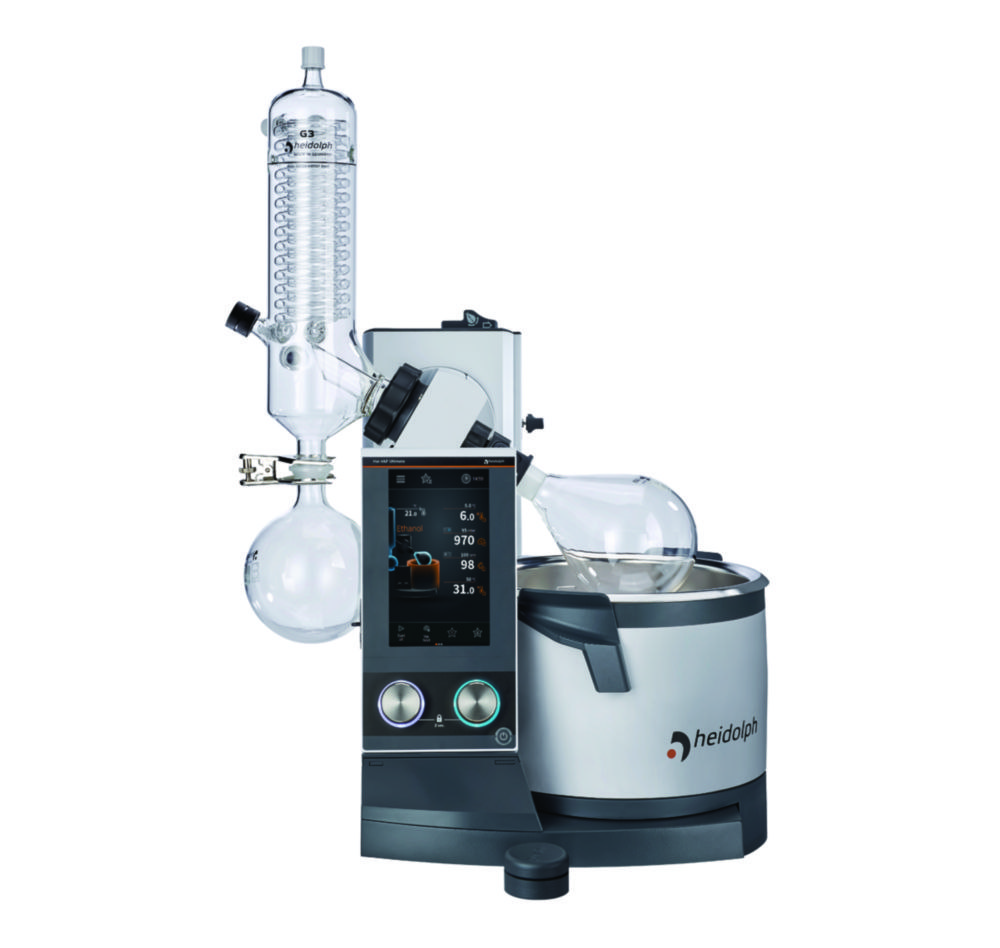

Rotary Evaporators Hei-VAP Ultimate Control, with hand lift, vertical condenser
This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.
- Available as hand or motor lift
- 7” touch display for controlling the entire system including the vacuum and the cooling temperature
- For precise monitoring, the pictogram on the-display also symbolizes active functions
- Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
- Setting of values either via the touch display or the separate quick access knobs
- Direct access to two favorites on the start screen
- Expandable solvent library: user defined favorites can be transfered to other devices using a USB stick
- User defined evaporation processes (ramps) can be defined and saved
- Automatic evaporation with the Dynamic AUTOaccurate Program (DAA)
- USB, Micro SD and LAN-/RS 232 interfaces (Lab 4.0-ready)
Scope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.
Toote variatsioonid
| Cooling surface | Glassware | Lift | Max. speed | Max. temperature | Max. voltage | Max. volume bath | Min. speed | Catalog number | Plug type | Power supply | Speed | Temperature | Temperature | Type | PK | Depth | Dimensions (WxDxH) | Height | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1400 cm² | Without coating | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | 4.669 033 | EU | 230 V | 10 ... 280 1/min | RT | RT ... 210 °C | G3 | 1.00 | - | - | - | - | ||
| 2200 cm² | Without coating | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | 4.669 034 | EU | 230 V | 10 ... 280 1/min | RT | RT ... 210 °C | G3 XL | 1.00 | 477 mm | 739 x 477 x 887 mm | 887 mm | 739 mm | ||
| 2200 cm² | Coated | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | 4.669 039 | EU | 230 V | 10 ... 280 1/min | RT | RT ... 210 °C | G3B XL | 1.00 | 477 mm | 739 x 477 x 887 mm | 887 mm | 739 mm | ||
| 1400 cm² | Coated | Manual | 280 1/min | 210 °C | 230 V | 4.5 l | 10 1/min | 4.669 038 | EU | 230 V | 10 ... 280 1/min | RT | RT ... 210 °C | G3B | 1.00 | - | - | - | - |
