Rotary Evaporators Hei-VAP Ultimate, with motor lift
With 7” touch display
USB and micro SD interfaces and LAN/RS 232 interfaces (Lab 4.0-ready)
Toote variatsioonid
| Description | Glassware set | Catalog number | PK | Max. speed | Max. temperature | Max. voltage | Min. speed | Min. temperature | Plug type | Power supply | Speed | Temperature | Cooling surface | Max. volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G3 XL Vertical condenser | standard | 4.669 024 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 2200 cm² | 4.5 l | ||
| G1 Angled condenser | standard | 4.669 022 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||
| G6 Vertical reflux condenser | standard | 4.669 026 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||
| G3 Vertical condenser | standard | 4.669 023 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||
| G3B XL Vertical condenser | coated | 4.669 029 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 2200 cm² | 4.5 l | ||
| G3B Vertical condenser | coated | 4.669 028 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||
| G5B Cold trap | coated | 4.669 030 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||
| G6B Vertical reflux condenser | coated | 4.669 031 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||

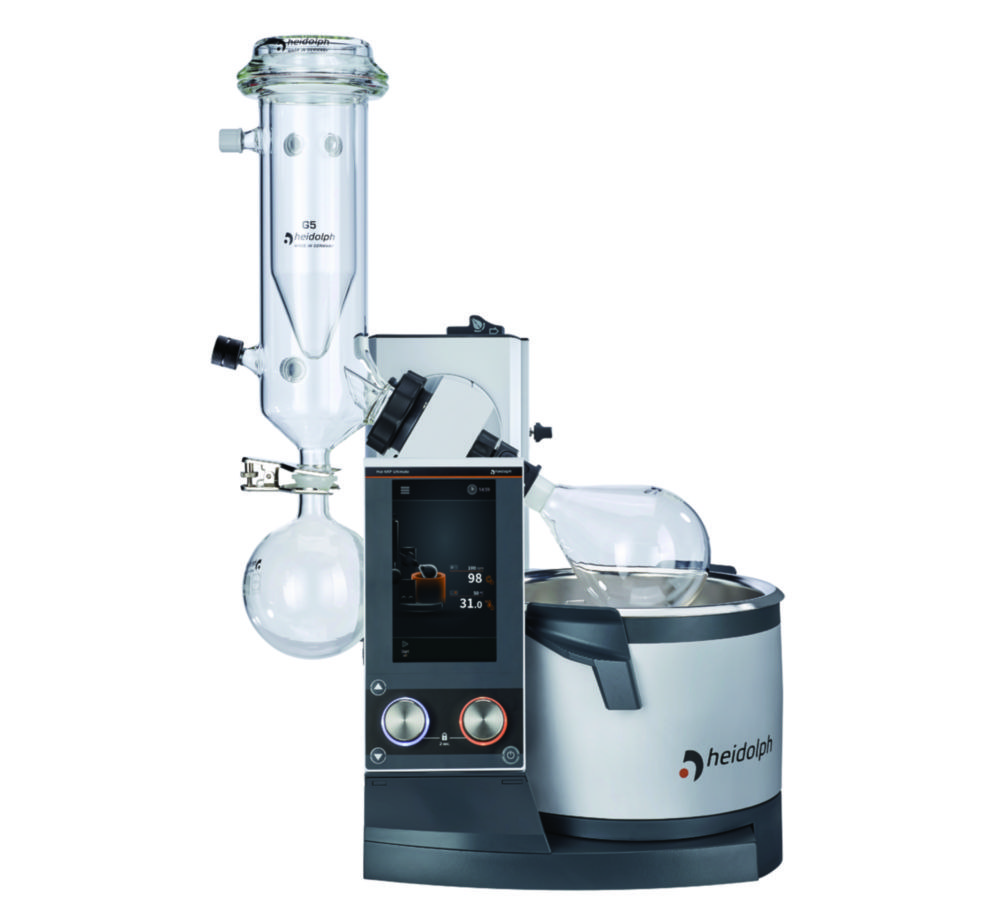

| G5 Cold trap | standard | 4.669 025 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l | ||
| G1B Angled condenser | coated | 4.669 027 | 1.00 | 280 1/min | 210 °C | 230 V | 10 1/min | RT | EU | 230 V | 10 ... 280 1/min | RT ... 210 °C | 1400 cm² | 4.5 l |
