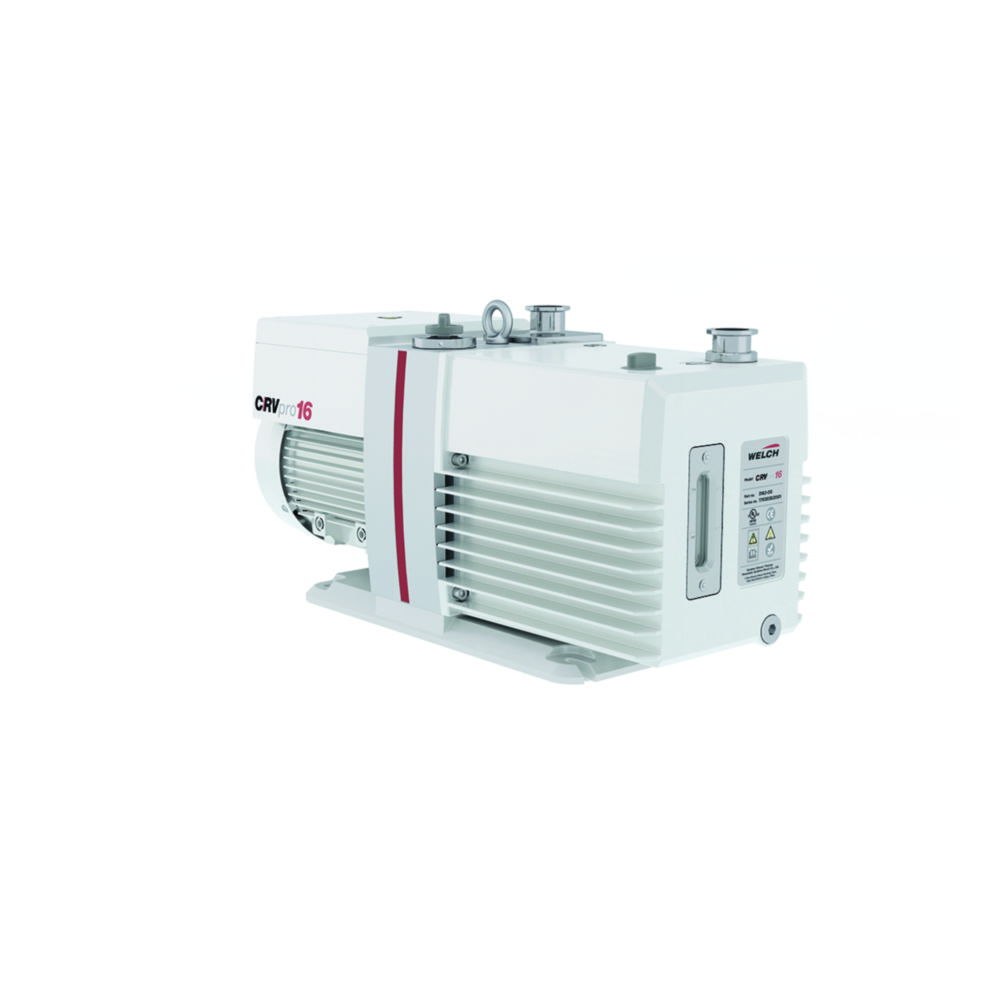

Rotary vane pump CRVpro 16/24/30
The Welch CRVpro pumps are high-performance two-stage rotary vane pumps. They impress with their long service life, high reliability and low maintenance requirements. The CRVpro series are the perfect partners for freeze dryers, vacuum concentrators, Schlenklines, glove boxes and vacuum ovens, as well as industrial applications.
- Cool running operation for less oil consumption
- Coated oil case to slow metal corrosion
- Large oil case to reduce the risk of chemical attacks
- Anti-suck back valve
- Dual voltage
Scope of supply: every pump is supplied completely with Directorr™ Premium vacuum pump oil, centering rings, clamping rings and motor overload protection
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | atr_llg_max_oil_filling | No. of stages | Catalog number | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 206 mm | 569 x 206 x 289 mm | 280 l/min | 289 mm | 2400 ml | 2 | 6.291 062 | CRVpro 16 | 0.003 mbar | 37.0 kg | 569 mm | 1.00 | ||
| 206 mm | 569 x 206 x 289 mm | 400 l/min | 289 mm | 2200 ml | 2 | 6.291 063 | CRVpro 24 | 0.003 mbar | 38.5 kg | 569 mm | 1.00 | ||
| 206 mm | 569 x 206 x 289 mm | 483 l/min | 289 mm | 2100 ml | 2 | 6.291 064 | CRVpro 30 | 0.003 mbar | 39.5 kg | 569 mm | 1.00 |
