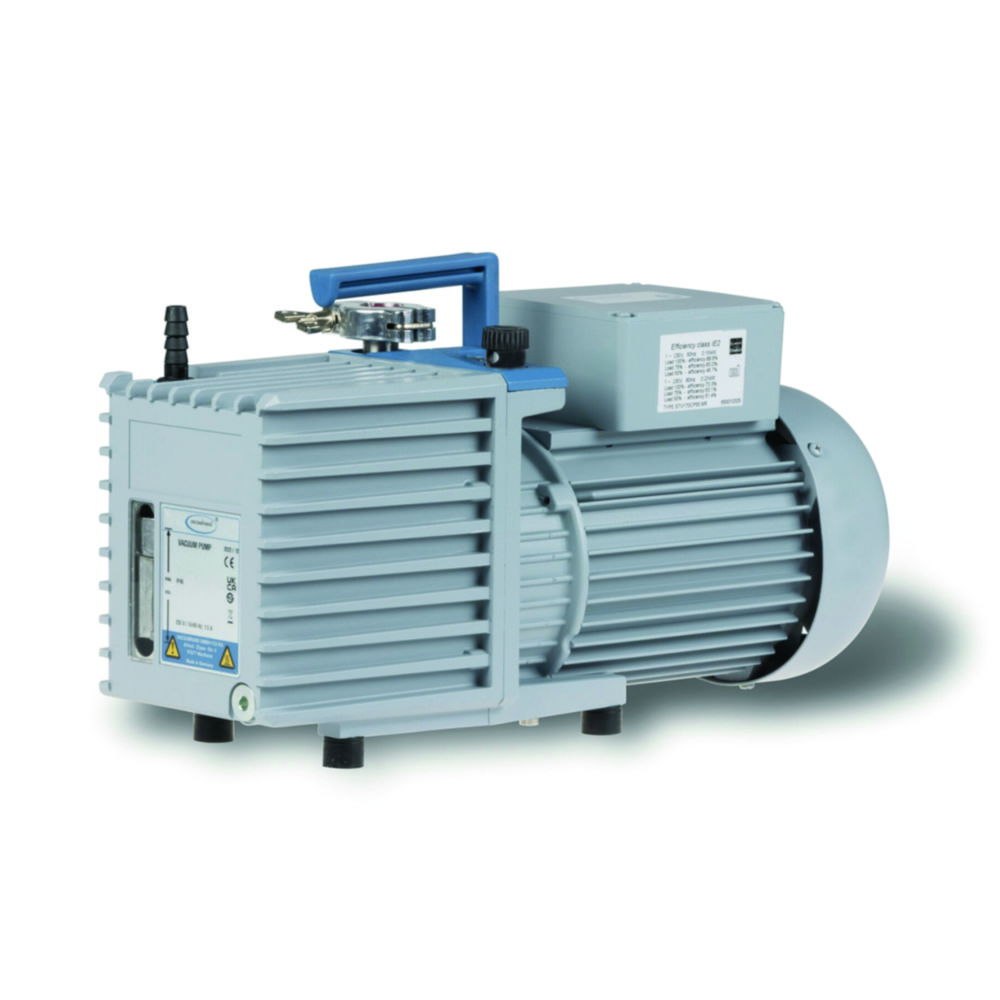

Rotary vane pump RE 6, one-stage
Scope of supply: Rotary vane pump, manual
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | No. of stages | Noise level | Catalog number | Plug type | Power supply | Rated capacity | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 420 mm | 156 x 420 x 240 mm | 95 l/min | 240 mm | IP 40 | 230 V | 1 | 50 db(A) | 4.691 562 | CEE | 230 V, 50...60 Hz | 180 W | RE 6 | 0.1 mbar | 15.7 kg | 156 mm | 1.00 | ||
| 420 mm | 156 x 420 x 240 mm | 95 l/min | 240 mm | IP 40 | 230 V | 1 | 50 db(A) | 4.691 563 | CH | 230 V, 50...60 Hz | 180 W | RE 6 | 0.1 mbar | 15.7 kg | 156 mm | 1.00 | ||
| 420 mm | 156 x 420 x 240 mm | 95 l/min | 240 mm | IP 40 | 230 V | 1 | 50 db(A) | 4.691 564 | UK | 230 V, 50...60 Hz | 180 W | RE 6 | 0.1 mbar | 15.7 kg | 156 mm | 1.00 |
