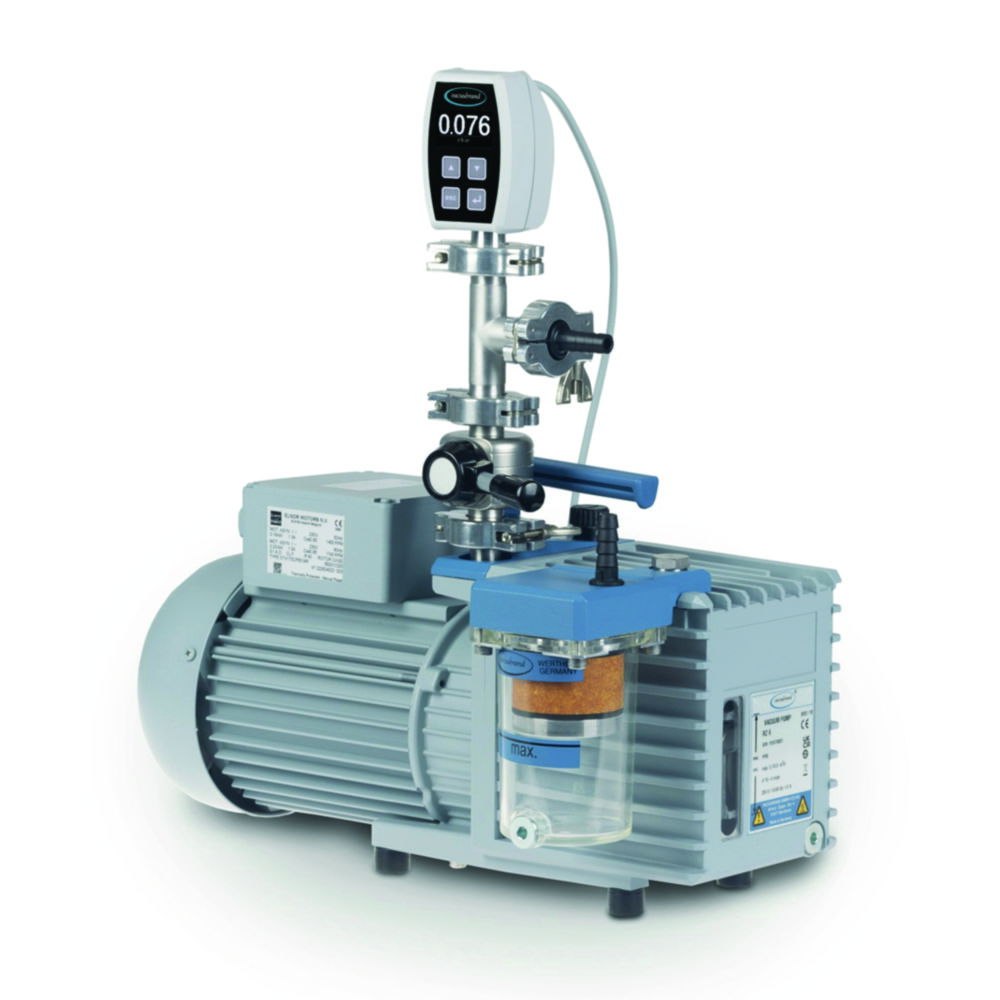

Rotary vane pump RZ 6, two-stage, package 3
Scope of supply: Rotary vane pump, oil mist filter FO, butterfly valve VS 16, vacuum gauge VACUU·VIEW extended, manual
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | No. of stages | Noise level | Catalog number | Plug type | Power supply | Rated capacity | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 420 mm | 230 x 420 x 240 mm | 95 l/min | 240 mm | IP 40 | 230 V | 2 | 50 db(A) | 4.691 561 | CH | 230 V, 50...60 Hz | 180 W | RZ 6+FO+VS 16+VACUU·VIEW extended | 0.002 mbar | 17.8 kg | 230 mm | 1.00 | ||
| 420 mm | 230 x 420 x 240 mm | 95 l/min | 240 mm | IP 40 | 230 V | 2 | 50 db(A) | 4.691 560 | CEE | 230 V, 50...60 Hz | 180 W | RZ 6+FO+VS 16+VACUU·VIEW extended | 0.002 mbar | 17.8 kg | 230 mm | 1.00 |
