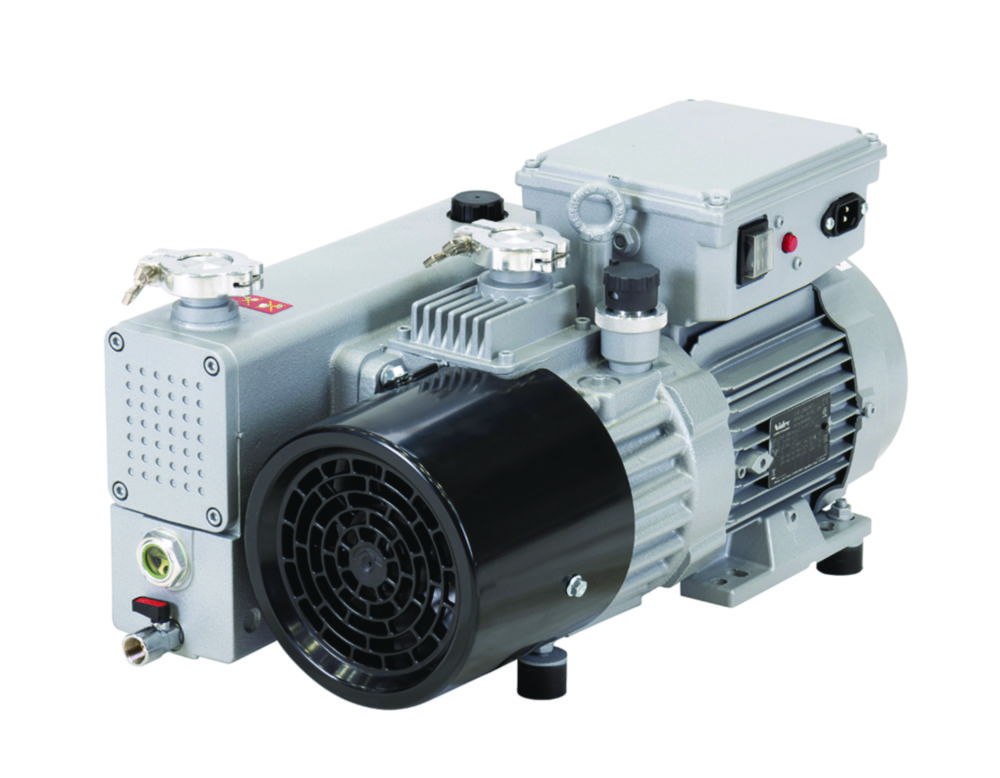

Rotary vane pump SOGEVAC NEO D
The two-stage, oil-sealed rotary vane pump is characterised by a low noise level as well as smooth and clean operation and is suitable for industrial and analytical applications. The integrated warm exhaust demister prevents condensation of vapours in the pump.
- Small footprint and easy installation
- Continuous operation from atmospheric pressure to ultimate pressure
- Built-in exhaust filter eliminates oil mist and oil loss during pump-down
- Low noise and vibration level
- Maintenance-friendly oil drain valve and easily replaceable exhaust filter
Toote variatsioonid
| Depth | Flow rate | Height | Max. voltage | Min. voltage | No. of stages | Noise level | Catalog number | Type | Ultimate vacuum | Weight | Width | PK | Dimensions (WxDxH) | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 518 mm | 28 m³/h | 294 mm | 264 V | 180 V | 2 | 54 db(A) | 4.700 551 | SOGEVAC NEO D 25 | 0.008 mbar | 50 kg | 288 mm | 1.00 | 288 x 518 x 294 mm | 180 ... 264 V, 50/60 Hz | ||
| 516 mm | 19 m³/h | 294 mm | 264 V | 180 V | 2 | 54 db(A) | 4.700 550 | SOGEVAC NEO D 16 | 0.008 mbar | 49 kg | 288 mm | 1.00 | 288 x 516 x 294 mm | 180 ... 264 V, 50/60 Hz | ||
| 632 mm | 47 m³/h | 320 mm | 264 V | 180 V | 2 | 57 db(A) | 4.700 552 | SOGEVAC NEO D 40 | 0.008 mbar | 80 kg | 356 mm | 1.00 | 356 x 632 x 320 mm | 180 ... 264 V, 50/60 Hz |
