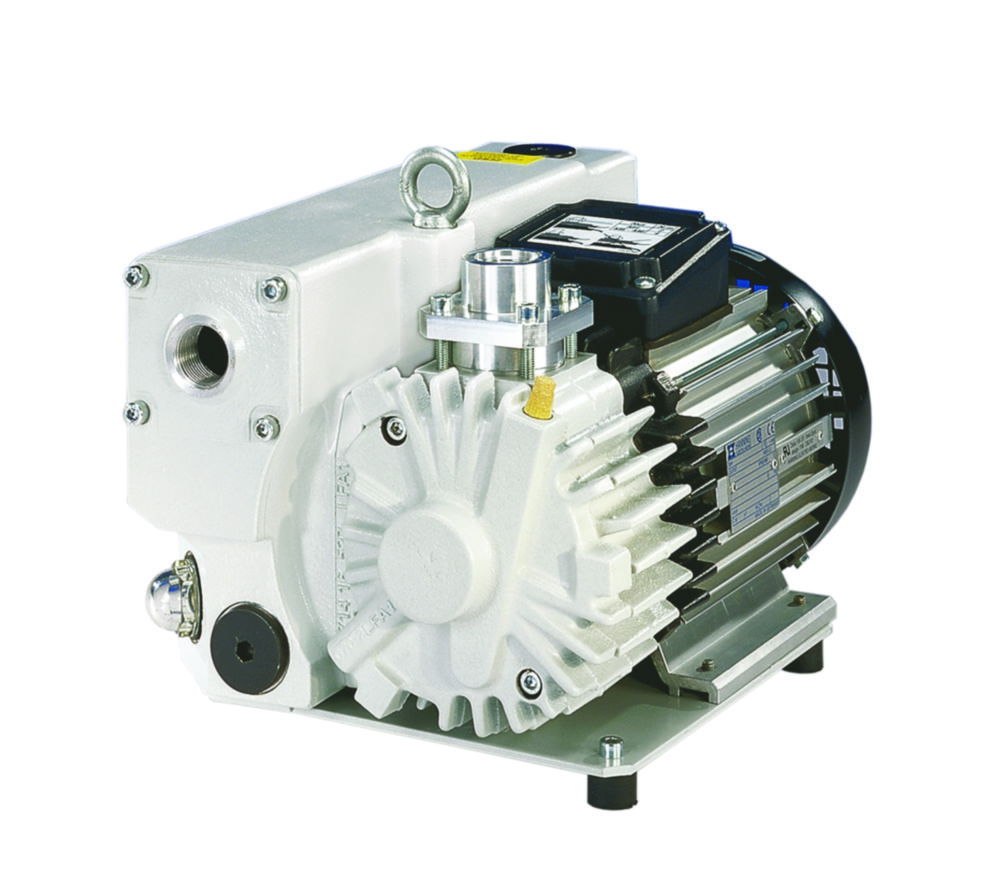

Rotary vane pump SOGEVAC SV B, with single phase motor
The oil-sealed, single-stage rotary vane pump is suitable for both industrial production and research applications.
- Compact design and small footprint
- High pumping speed even at low pressures
- State-of-the-art sealing technology
- No oil loss thanks to integrated oil return line
- Oil mist-free exhaust gas thanks to efficient integrated exhaust filter
- Integrated anti-suckback valve
- Low noise level
- Efficient air cooling
- Simple maintenance
- High water vapour tolerance
Toote variatsioonid
| Depth | Flow rate | Height | IP code | Max. voltage | No. of stages | Noise level | Catalog number | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315 mm | 11 m³/h | 199 mm | IP 55 | 230 V | 1 | 62 db(A) | 4.700 545 | SOGEVAC SV 10 B | 1.5 mbar | 20 kg | 281 mm | 1.00 | ||
| 356 mm | 26 m³/h | 246 mm | IP 55 | 230 V | 1 | 64 db(A) | 4.700 544 | SOGEVAC SV 25 B | 0.5 mbar | 27 kg | 275 mm | 1.00 | ||
| 315 mm | 16 m³/h | 199 mm | IP 55 | 230 V | 1 | 62 db(A) | 4.700 546 | SOGEVAC SV 16 B | 1.0 mbar | 20.5 kg | 281 mm | 1.00 |
