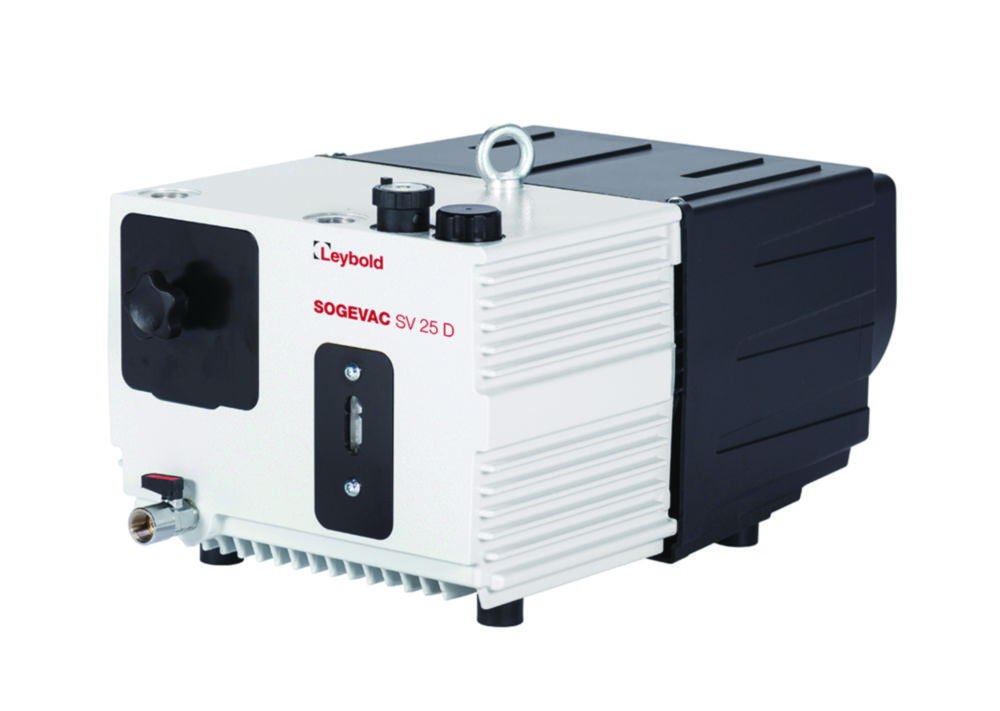

Rotary vane pump SOGEVAC SV D
The oil-sealed, single-stage rotary vane pump is suitable for both industrial production and research applications.
- Compact and rugged design
- Optimised pump temperature thanks to new air cooling concept
- Integrated lubrication with oil recovery system without external oil lines
- Longer oil service life thanks to increased oil volume within the pump
- Oil mist-free exhaust gas thanks to efficient integrated exhaust filter
- Integrated anti-suckback valve
- Low noise level
Toote variatsioonid
| Depth | Flow rate | Height | IP code | Max. voltage | Min. voltage | No. of stages | Noise level | Catalog number | Type | Ultimate vacuum | Weight | Width | PK | Dimensions (WxDxH) | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 268 mm | 25 m³/h | 440 mm | IP 20 | 240 V | 200 V | 1 | 59 db(A) | 4.700 548 | SOGEVAC SV 25 D | 0.5 mbar | 25 kg | 247 mm | 1.00 | 247 x 268 x 440 mm | 200 ... 240 V, 50/60 Hz | ||
| 268 mm | 16 m³/h | 440 mm | IP 20 | 240 V | 200 V | 1 | 59 db(A) | 4.700 547 | SOGEVAC SV 16 D | 0.5 mbar | 25 kg | 247 mm | 1.00 | 247 x 268 x 440 mm | 200 ... 240 V, 50/60 Hz |
