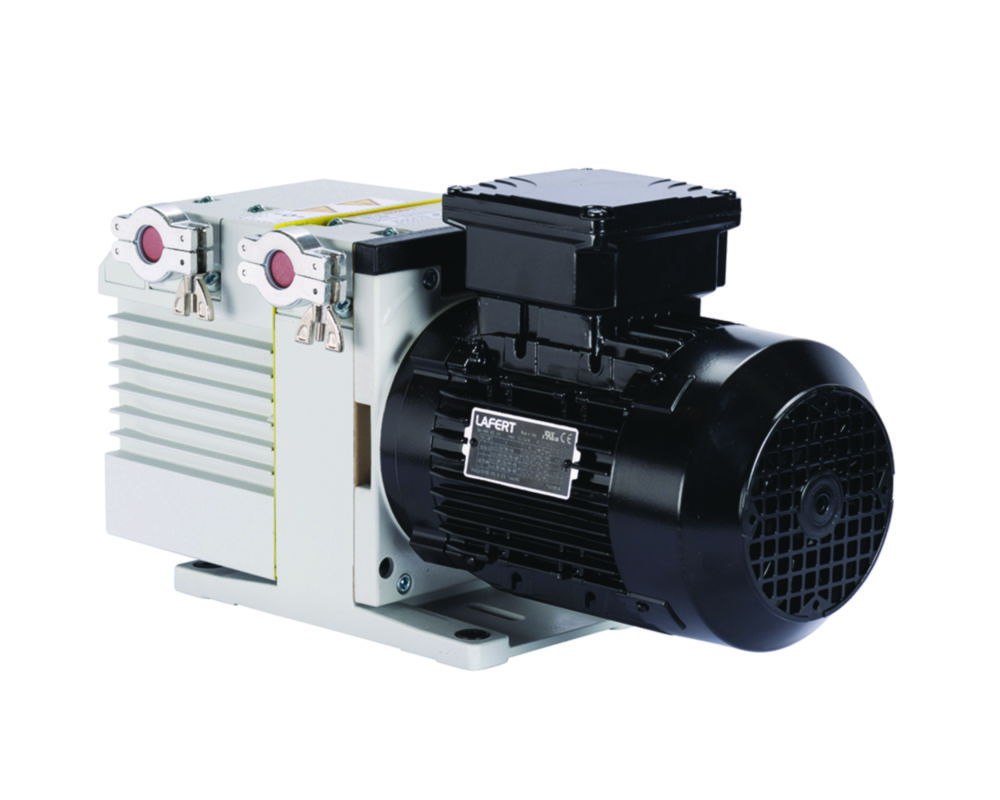

Rotary vane pump TRIVAC B, with single phase motor
The oil-sealed, two-stage rotary vane pump is characterised by high vacuum performance and is suitable for industrial production and research applications.
- Robust construction with low heat loss and air-cooled design
- Build-in oil pump for lubrication, cooling, and handling particulates
- Low oil back streaming thanks to the anti-suckback valve controlled by the oil pressure
- Service-friendly
- Integrated gas ballast for high water vapour tolerance
- Low noise level and low vibrations for a quiet working and laboratory environment
- Certified in accordance with ATEX Directive 2014/34/EU, Cat. 3 inside
Toote variatsioonid
| Flow rate | IP code | Max. voltage | No. of stages | Noise level | Catalog number | Plug type | Type | Ultimate vacuum | Weight | PK | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.7 m³/h | IP 55 | 230 V | 2 | 52 db(A) | 4.700 558 | EU | TRIVAC D 8 B | 0.002 mbar | 21.2 kg | 1.00 | 230 V, 50 Hz | ||
| 4.8 m³/h | IP 55 | 230 V | 2 | 52 db(A) | 4.700 557 | EU | TRIVAC D 4 B | 0.002 mbar | 18.7 kg | 1.00 | 230 V, 50 Hz |
