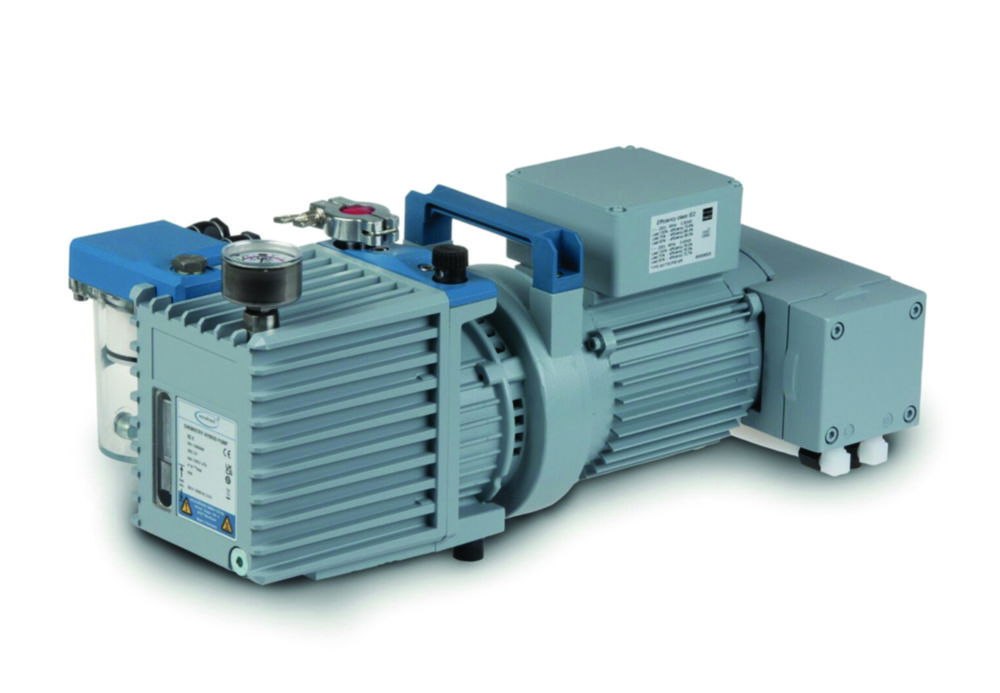

Rotary Vane Vacuum Pump RC 6
The Rotary Vane Vacuum Pump RC 6 has been designed to minimise the adverse effects of condensable and corrosive vapours. Its main components are a two-stage rotary-vane pump and a two-stage chemistry diaphragm for optimised corrosion resistance. The diaphragm pump continuously evacuates the oil reservoir of the rotary-vane pump in order to keep the partial pressures of solvent vapours, oxygen and corrosive gases at a low level and/or below their condensation point. The RC 6 is a low-maintenance pump for freeze-drying and other applications requiring an ultimate vacuum in the 10-3 mbar range.
Scope of supply: Pump, overload circuit breaker and mains cable (2 m), centering and clamping ring for inlet, particulate filter, operating instructions, oil (bottle of 500 ml)
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | atr_llg_max_oil_filling | No. of stages | Catalog number | Plug type | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 302 mm | 526 x 302 x 226 mm | 5.9 m³/h | 226 mm | IP 40 | 500 ml | 2 | 4.687 930 | CH | RC 6 | 0.002 mbar | 25 kg | 526 mm | 1.00 | ||
| 302 mm | 526 x 302 x 226 mm | 5.9 m³/h | 226 mm | IP 40 | 500 ml | 2 | 4.670 386 | UK | RC 6 | 0.002 mbar | 25 kg | 526 mm | 1.00 | ||
| 302 mm | 526 x 302 x 226 mm | 5.9 m³/h | 226 mm | IP 40 | 500 ml | 2 | 4.687 929 | EU | RC 6 | 0.002 mbar | 25 kg | 526 mm | 1.00 |
